46 en | How to Install Reader and Field Devices Access Easy Controller
Ver 2.0.0 | 2006.07 Hardware Manual Bosch Security Systems
6.7 Field devices using I/O board
This will provide the system installer to have the flexibility of configuring any input in the panel
to be in any monitoring requirement. The following diagrams shows wiring diagram for 2 State
Non-Supervised, 2 State Supervised and 4 State Supervised input points.

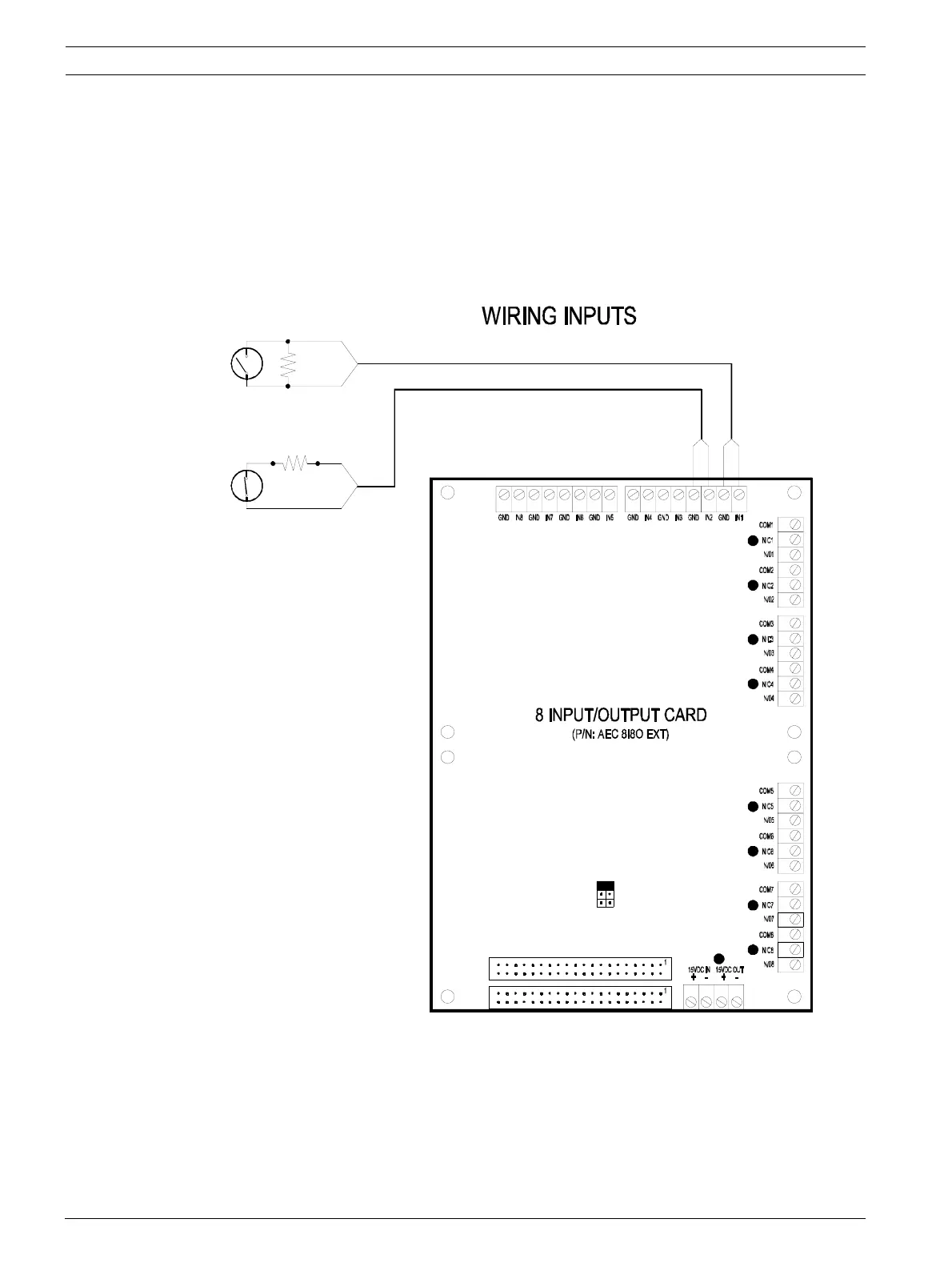

6.7.1 Wiring Diagram for 2 State Supervised Input points
T1
CN2
1
CN1
T5
T4
1 1
T3
1
1
T8
T7
T2
1
T6
1
JP2
6.8K Ohm
6.8K Ohm
NORMALLY OPEN
INPUT POINT
NORMALLY CLOSED
INPUT POINT
