Bosch Access Easy Controller - Wiring Diagram for 4 State Supervised Input Points

48 en | How to Install Reader and Field Devices Access Easy Controller
Ver 2.0.0 | 2006.07 Hardware Manual Bosch Security Systems

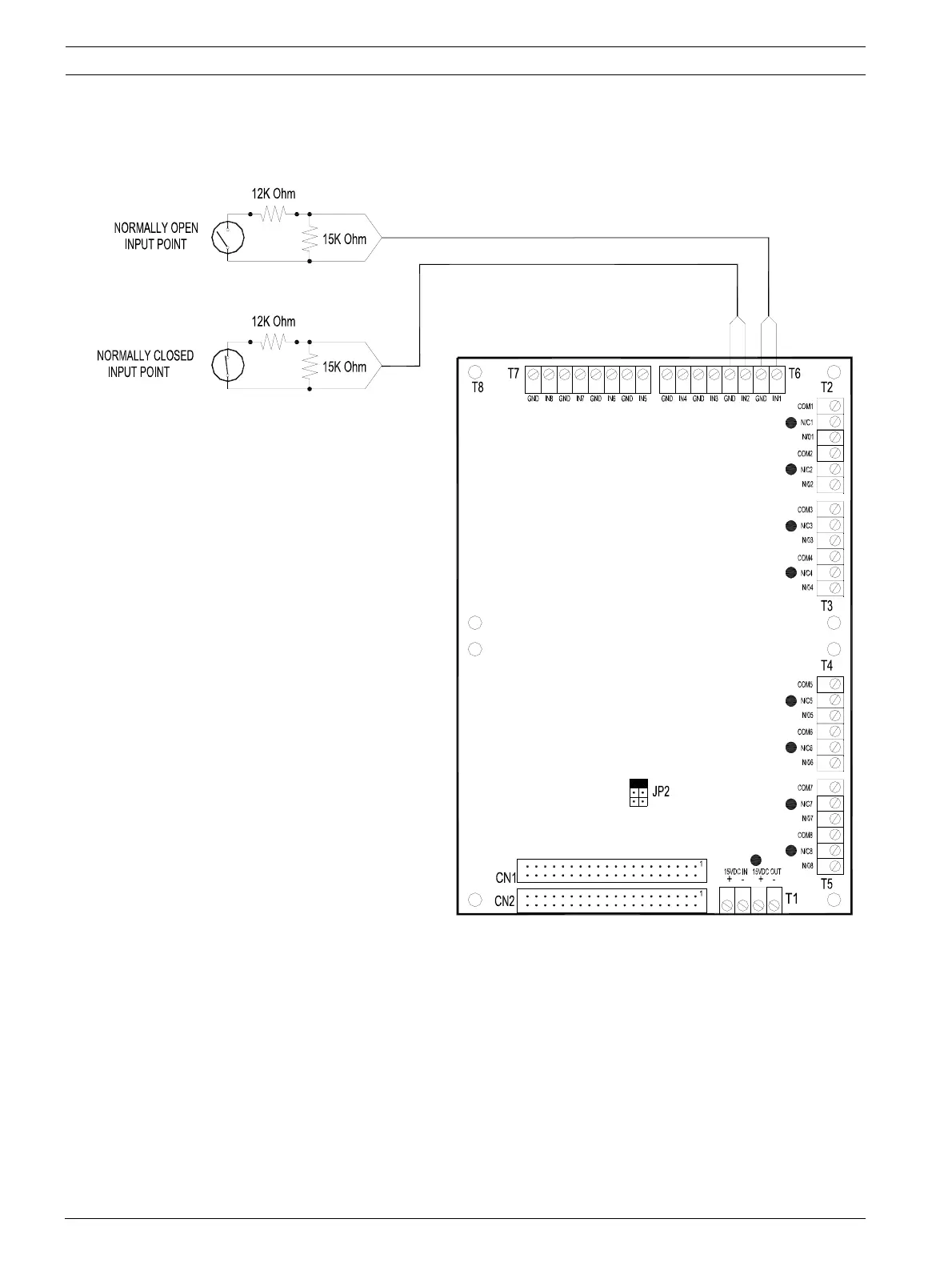

6.7.3 Wiring Diagram for 4 State Supervised Input points
1
1 1 1
1
1
1
WIRING INPUTS
(P/N: AEC 8I8O EXT)
8 INPUT/OUTPUT CARD
