128 en | 18VAC Input Power Supply Card Access Easy Controller
Ver 2.0.0 | 2006.07 Hardware Manual Bosch Security Systems

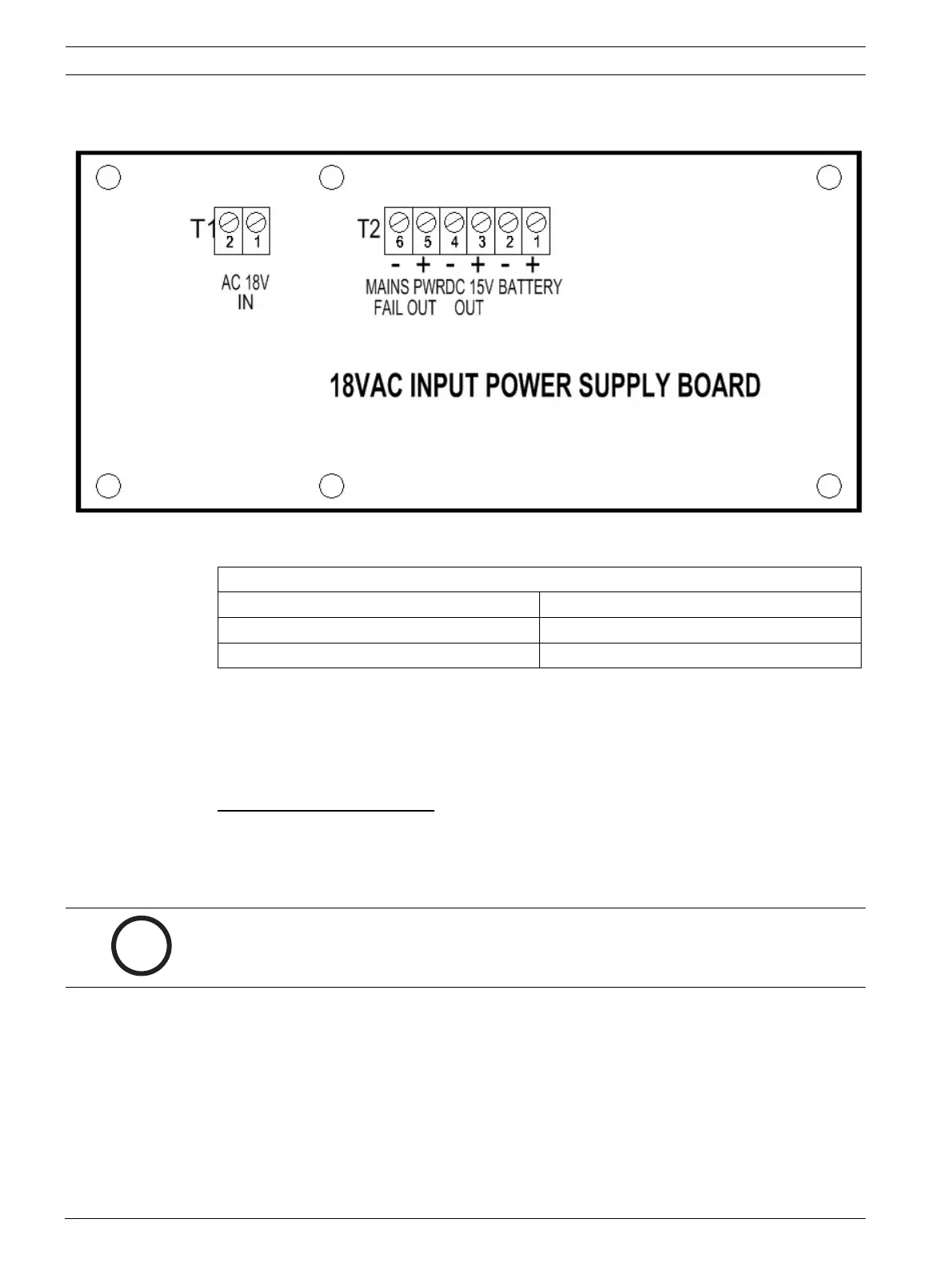

17.2.1 Technical Overview of 18VAC Input Power Supply Card for Access Easy
Extension Unit
There are only 2 sets of termination blocks on the Access Easy Extension unit 18V AC Input
Power Supply Card, the following provides a brief description of the uses for each of them :-
Reference AC Input T1-1 & T1-2
The 18V AC Input Power Supply Card is designed for UL Listed System only, it accepts 18VAC
direct on terminal block T1. This card will convert the AC input into 15VDC required by the
Reader Board, I/O and Convertor Card.
Specification for 18V AC Input Power Supply Card for Access Easy Extension Unit
Input Voltage 18V AC
Output Voltage +15V DC
Max. Output Current 1A @ +15V DC
i
NOTICE!
This card ONLY accepts 18VAC. Do not connect 110VAC or 230VAC to this terminal.
