Access Easy Controller Secure/Communication Card | en 119
Bosch Security Systems Hardware Manual Ver 2.0.0 | 2006.07
However, if you are having the CE Listed version of Access Easy Controller, you could uses
output provided by the 15V DC Input Power Supply Card to provide the triggering as shown
on the following page.

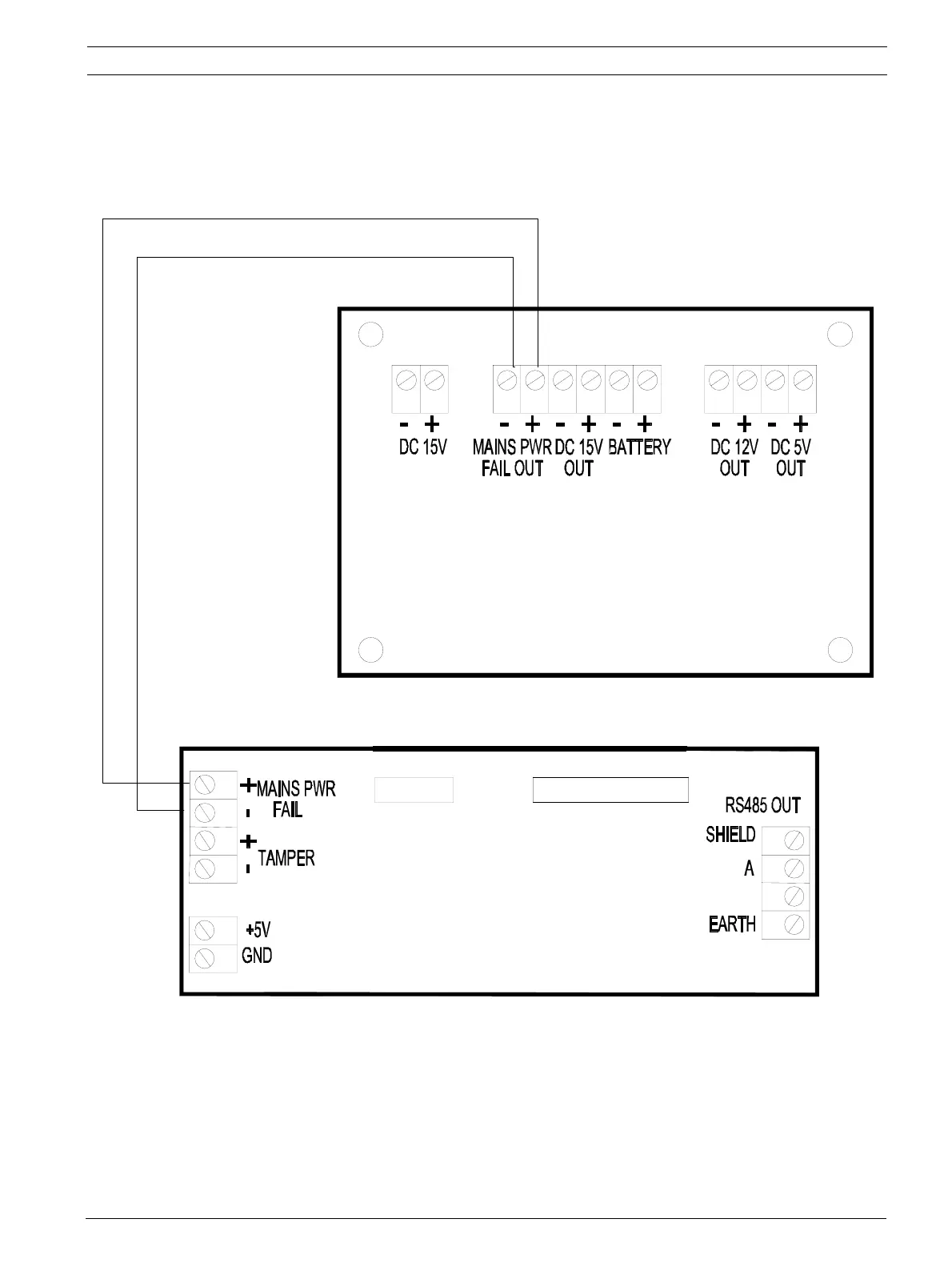

Internal wiring diagram between Power Supply board (CE Listed System) and Secure Com
Card
CN2 CN1
B
P
I
N
1
P
I
N
1
(P/N: AEC MOD COM)
SECURE COMM. CARD
4
3
2
1
1
2
3
4
2
1
IN
T1 T2 T3
(P/N: AEC MOD UPS1)
15VDC INPUT POWER SUPPLY BOARD
4321342121 65
