Access Easy Controller 15V DC Input Power Supply Card | en 139
Bosch Security Systems Hardware Manual Ver 2.0.0 | 2006.07
Reference DC 15V Output T2-4 & T2-3

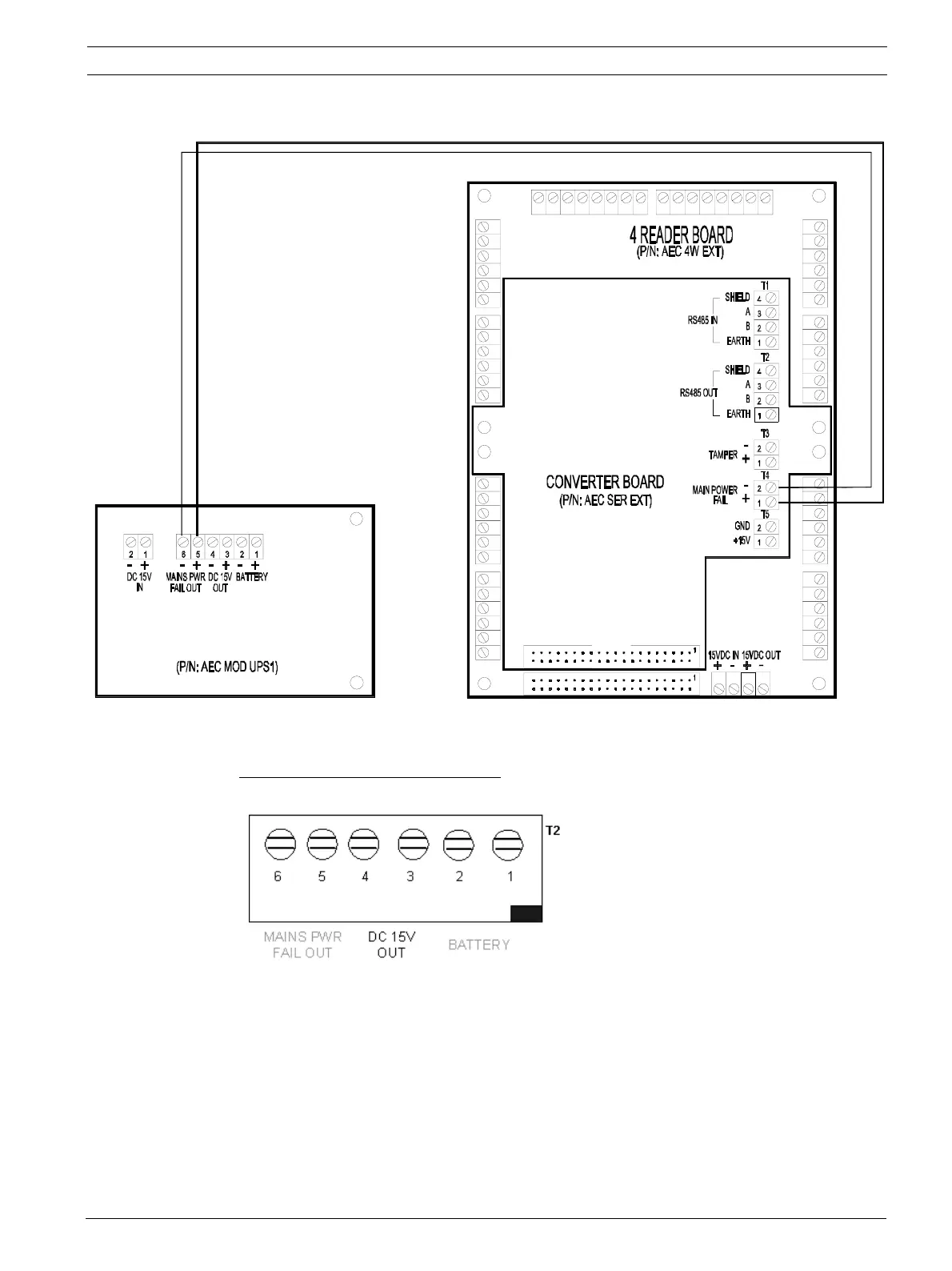

This output provides the power point for the rest of the cards in the same enclosure. Those
cards that required the 15VDC are Reader Board, I/O Cards and the Convertor Card, although
it is not a must to tap the power from this output, it serve as a termination point to loop the
power point to the rest of the cards that requires the 15VDC as shown in the following dia-
gram.
CN2
J1
T11
CN1
T1
1
15VDC INPUT POWER SUPPLY BOARD
T2T1
234
