142 en | Convertor Card Access Easy Controller

Ver 2.0.0 | 2006.07 Hardware Manual Bosch Security Systems

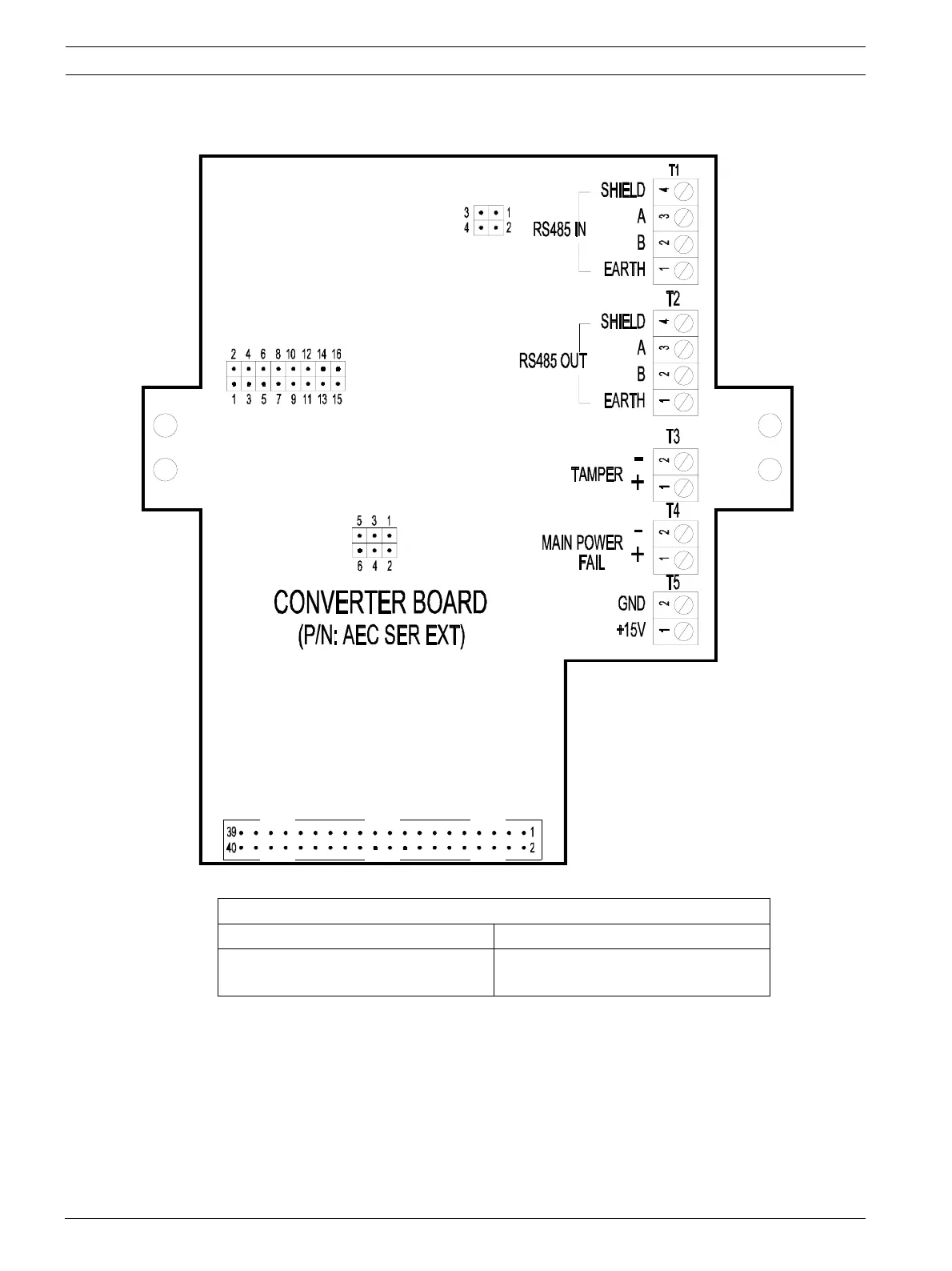

The following layout drawing shows the physical connectors on the Convertor Card.

JP1

JP3

JP2

Specification for Convertor Card

Input Voltage +15V DC

Current Consumption 26.6mA @ +15V DC (Peak)

25mA @ +15V DC (Average)
