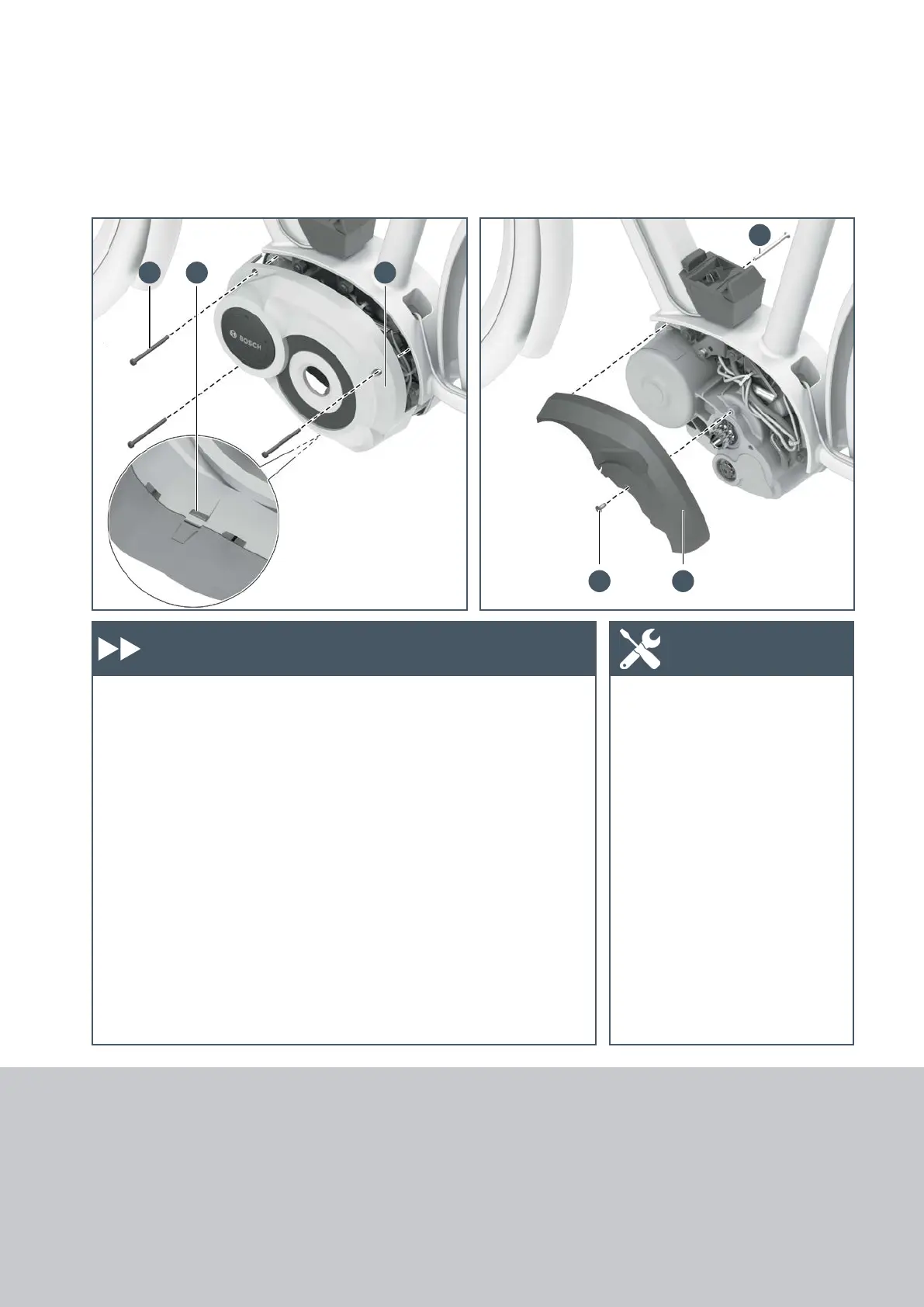

6.9 Removing the Drive Unit (BDU250C/255C)
Removing the
design cover (A)
1. Remove the three screws (B).
2. Unhook the latch (C) on the
lower edge and remove both
design covers.
Remove the cable guard (D)
for Performance Line CX
X Remove screws (E, F) and take
off the cable protection.
X Torx wrench T20
Work steps Tool
6.9 Removing Drive Unit
(BDU250C/255C)
