6.9 Removing the Drive Unit (BDU250C/255C) 6.9 Removing the Drive Unit (BDU250C/255C)
Disconnect the cables

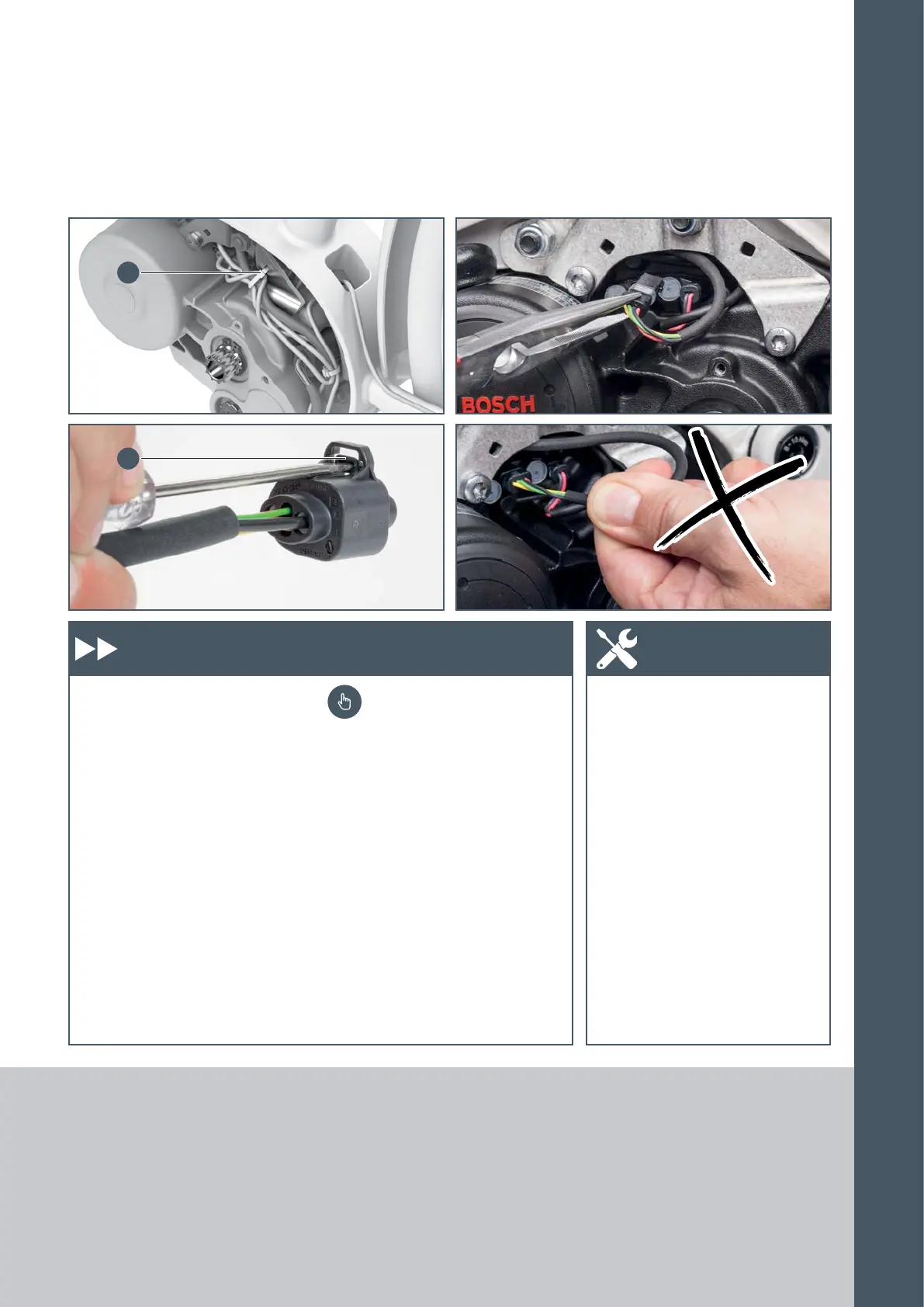

X Remove the cable ties (A).
Disconnecting the cable
connections on the drive
unit
X Unplug all cables. The connec-
tor plug on the battery has a
locking hook (B). Use a screw-
driver to pry it up by 1–2 mm.
Damage is possible if the lock-
ing hook is not disengaged
before dismounting.
Do not damage the plug and
cable! Always remove the
plugs using your fingers or a
long nose pliers. Never pull
the cable directly!
X Side cutters
X Small screwdriver
X Long nose pliers
