6.9 Removing the Drive Unit (BDU250C/255C)

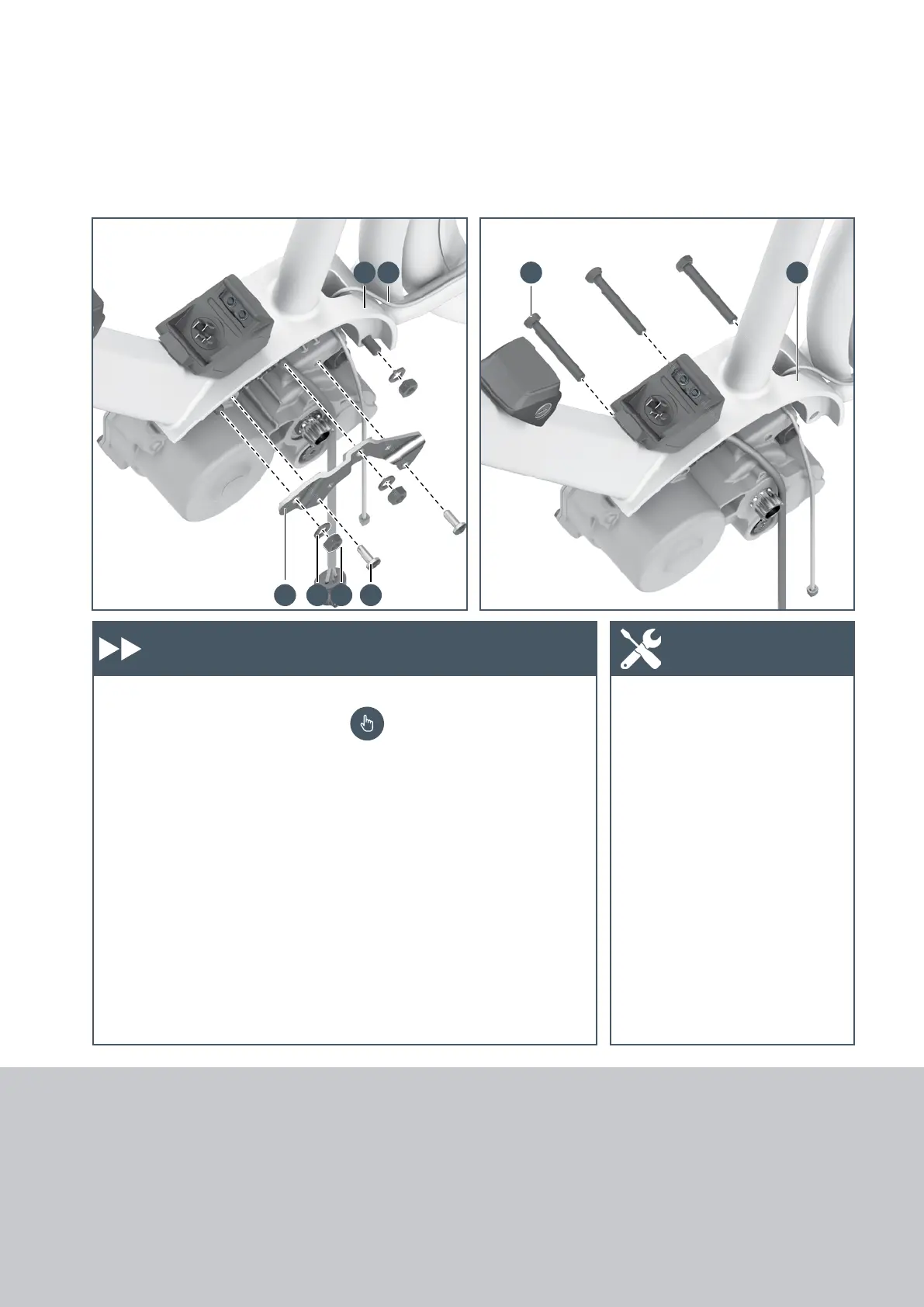

Removing the drive unit
1. Pull out all cables (A) as far as
possible from the frame inter-
face (B).
2. Remove the two screws (C).
3. Remove the three nuts (D) and
washers (E).
4. Remove the mounting plate (F).
5. Hold or brace the drive unit and
pull out the three hexagon bolts
(G).
6. Remove the drive unit from the
frame
The drive unit is secured to
the frame by only three
hexagon bolts. Always
support the drive unit
against falling if the three
screws are removed.
X Torx screwdriver (T30)
X Socket wrench insert size 13
Work steps Tool
