16 | EPS 708 | Checklist for normal operation en

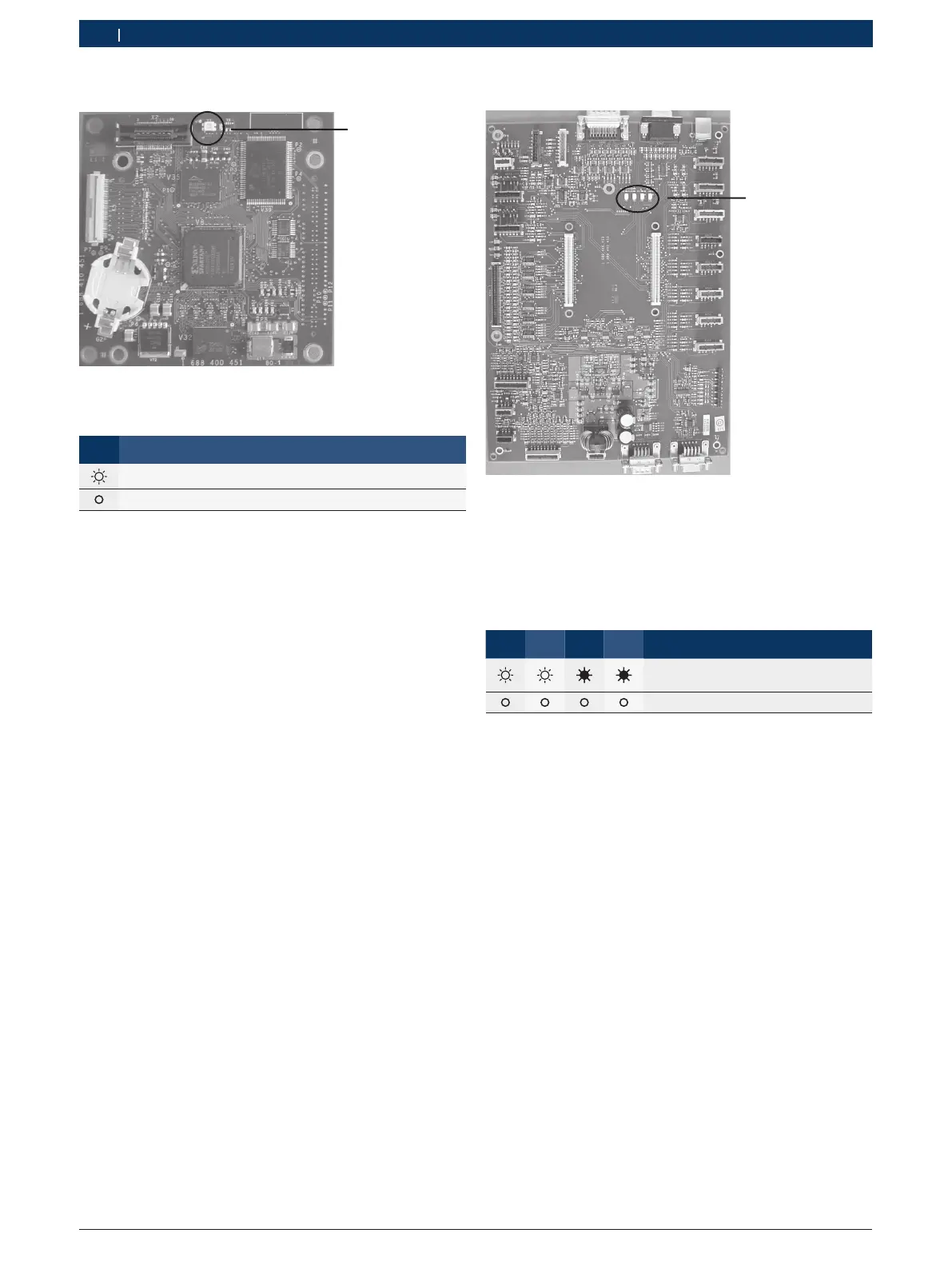

5.3.3 PCB (A5)
458863-21_Ri
V1
Fig. 22: PCB 1,688,400,451
V1 Firmware status
V1 Status
Firmware in good working order. No faults occurred
Disturbance to 24 V power supply
5.3.4 PCB (A4)
458863-23_Ri
V96 V98 V24 V26
Fig. 23: PCB 1 688 400 453
V24 3.3 V power supply
V26 5 V power supply
V96 Firmware status
V98 USB communication (LED flickers)
V96 V98 V24 V26 Status
Firmware in good working order. No
faults occurred
Disturbance to 24 V power supply
