Repair | EPS 708 | 67 en

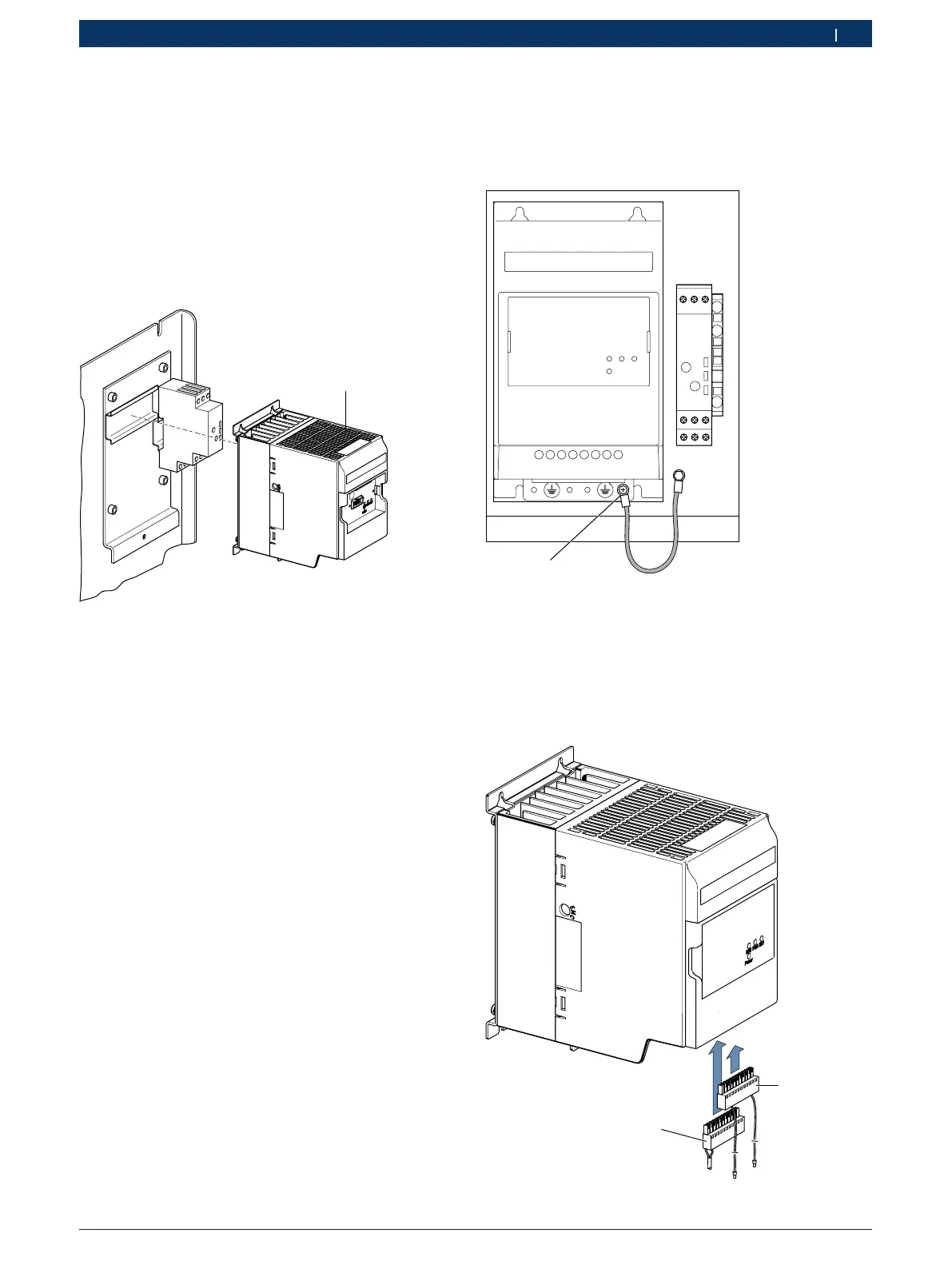

Installing the frequency converter
! The new frequency converter A13 is supplied with a
parameter set that is designed for the EPS708.
! All vents in the frequency converter A13 must be
clear. Do not attach any labels to the vents.
¶ Press the frequency converter A13 (Fig. 125, item 1)
onto the top-hat rail horizontally until it audibly locks
into place.
458863-72_Pal
1
Fig. 125: Catch for frequency converter A13
Connecting the frequency converter A13
1. Fasten the protective conductor (Fig. 126, item 1)
to the protective conductor bar of the frequency
converter A13. Use the fastening screw screwed into
the frequency converter A13.
458863-70_Pal
RUN FWDREV
POWER
1
Fig. 126: Protective conductor connection on the frequency con-
verter A13
2. Plug the control terminal connector
(Fig. 127, item 1) into the rear control terminal of
the frequency converter A13 from below.
3. Plug the control terminal connector
(Fig. 127, item 2) into the front control terminal of
the frequency converter A13 from below.
1
2
458859-15_Pal
Fig. 127: Port of the control terminal
