Unexpected Output at PO 1 to PO 4: If these outputs do not provide the alarm output you expect:
• Check the programming for Programmable Outputs in the Outputs section of the D6412/D4412 Program Entry
Guide (P/N: 45351).
• Check the Point Index Configuration section of the D6412/D4412 Program Entry Guide to verify the points you
are activating are programmed for alarm output.
IMPORTANT
If Programmable Output 2 is configured as a supervised siren driver (in combination with the Alrm +
terminal), you must connect a 4 ΩΩ or 8 ΩΩ siren/speaker to PO 2 to clear the siren/speaker supervision
trouble.
PO 1 Jumper
R
Y
G
B
Alrm
+
PO1
A B L-1
+ -
JP2-PO1
Select
Programmable Outputs 1-4

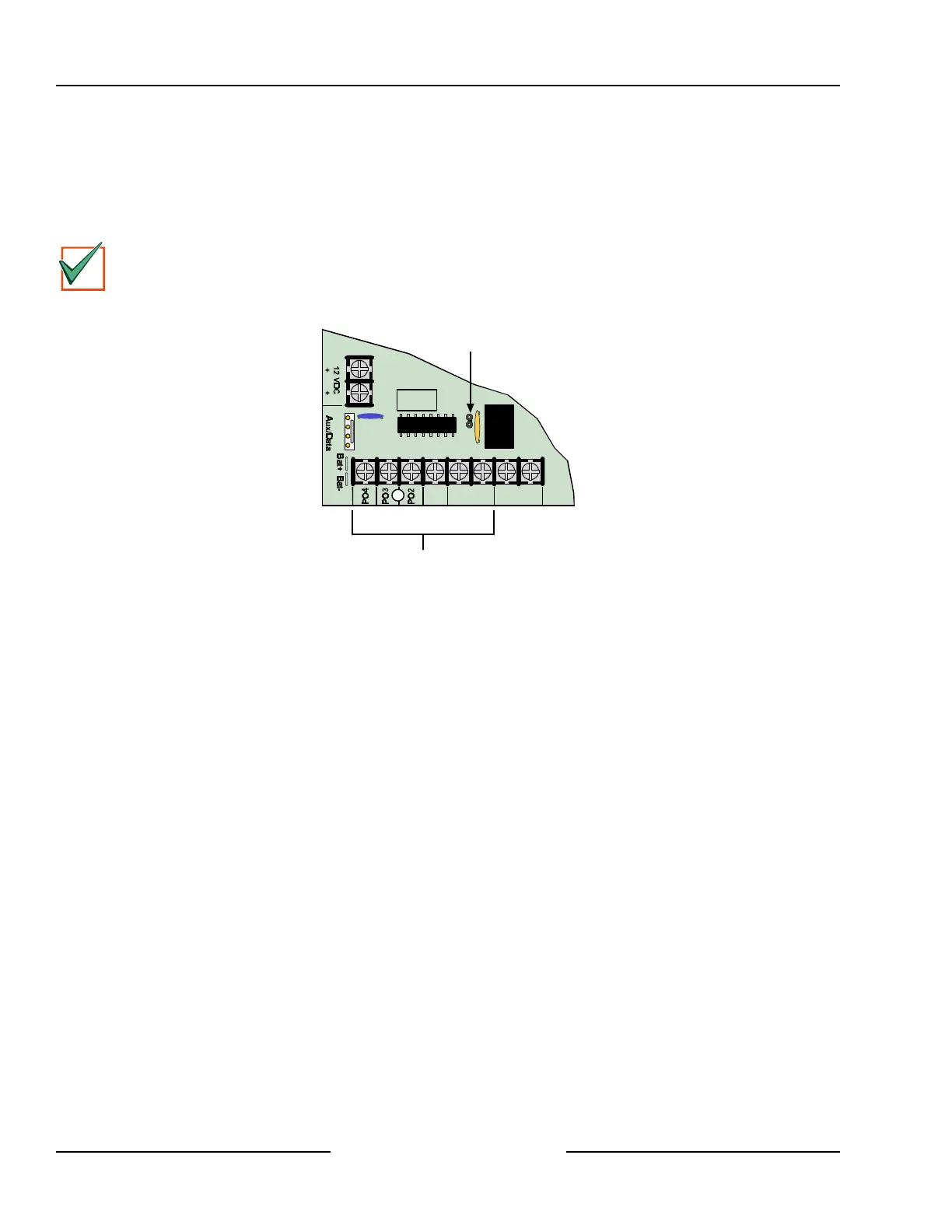

Figure 5: On-Board Outputs
6.0 Telephone Connections
6.1 Registration
Radionics’ D6412/D4412 Control/Communicator panel is registered with the Federal Communication
Commission (FCC) under Part 68, for connection to the public telephone system using an RJ31X or RJ38X jack
installed by your local phone company.
6.2 Notification
Do not connect registered equipment to party lines or coin-operated telephones. You must notify the local
telephone company and supply them with the following information before connecting the panel to the telephone
network.
• The particular line you are going to connect the panel to
• Make (Radionics), model D6412 or D4412, and serial number of the panel
• FCC registration number: ESVMUL-46531-AL-E
• Ringer equivalence for the panel: 0.1B
Telephone Connections
