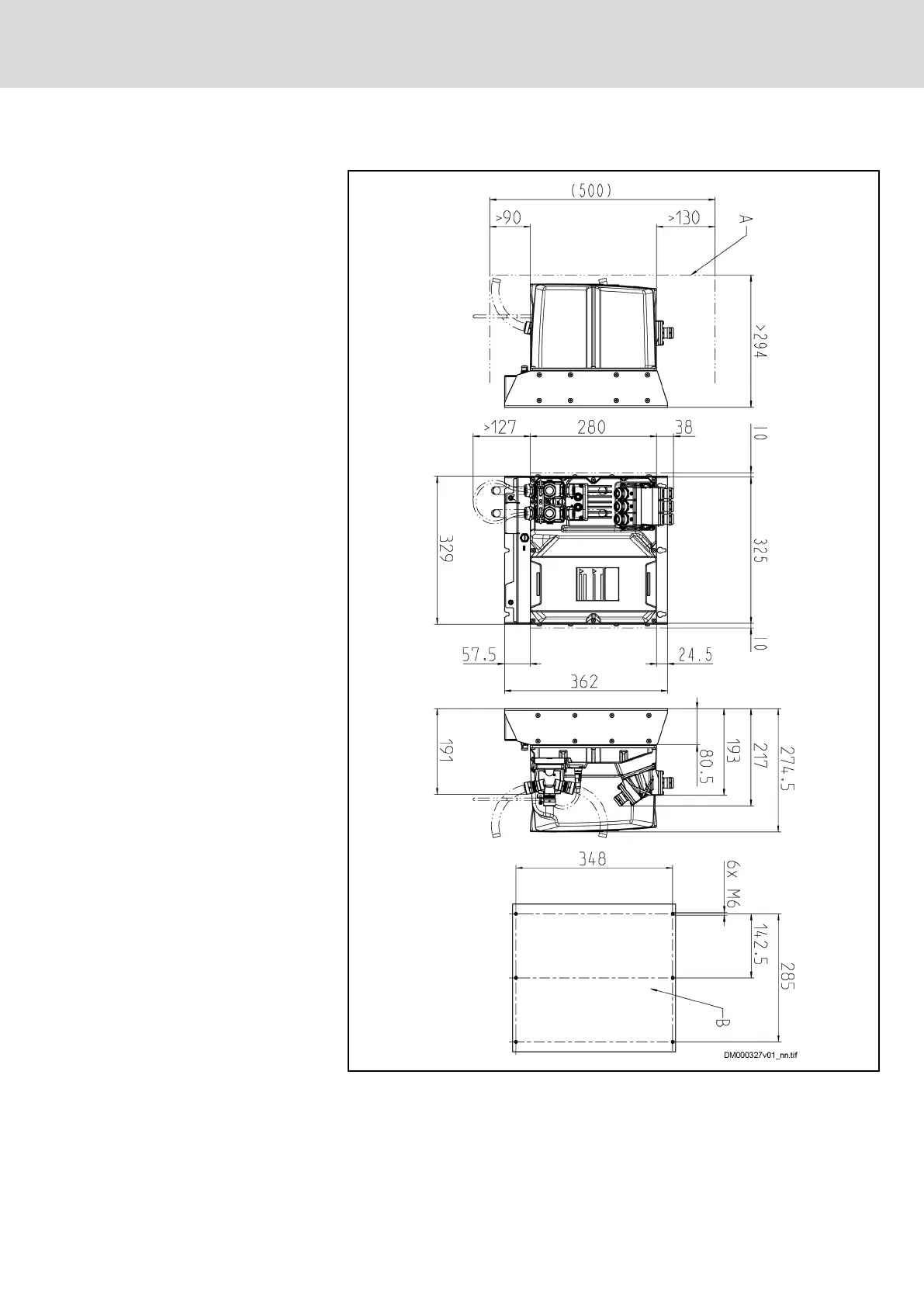

KMV03.1R-Wxxxx dimensional drawing (forced cooling)
A Minimum mounting clearance
B Boring dimensions
Fig. 5-26: KMV03.1R-Wxxxx (forced cooling), dimensions
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
93/407
Technical data of the components
R911335703_Edition 04 Bosch Rexroth AG
