10.21 RGS0725, KMS03 encoder cable connector

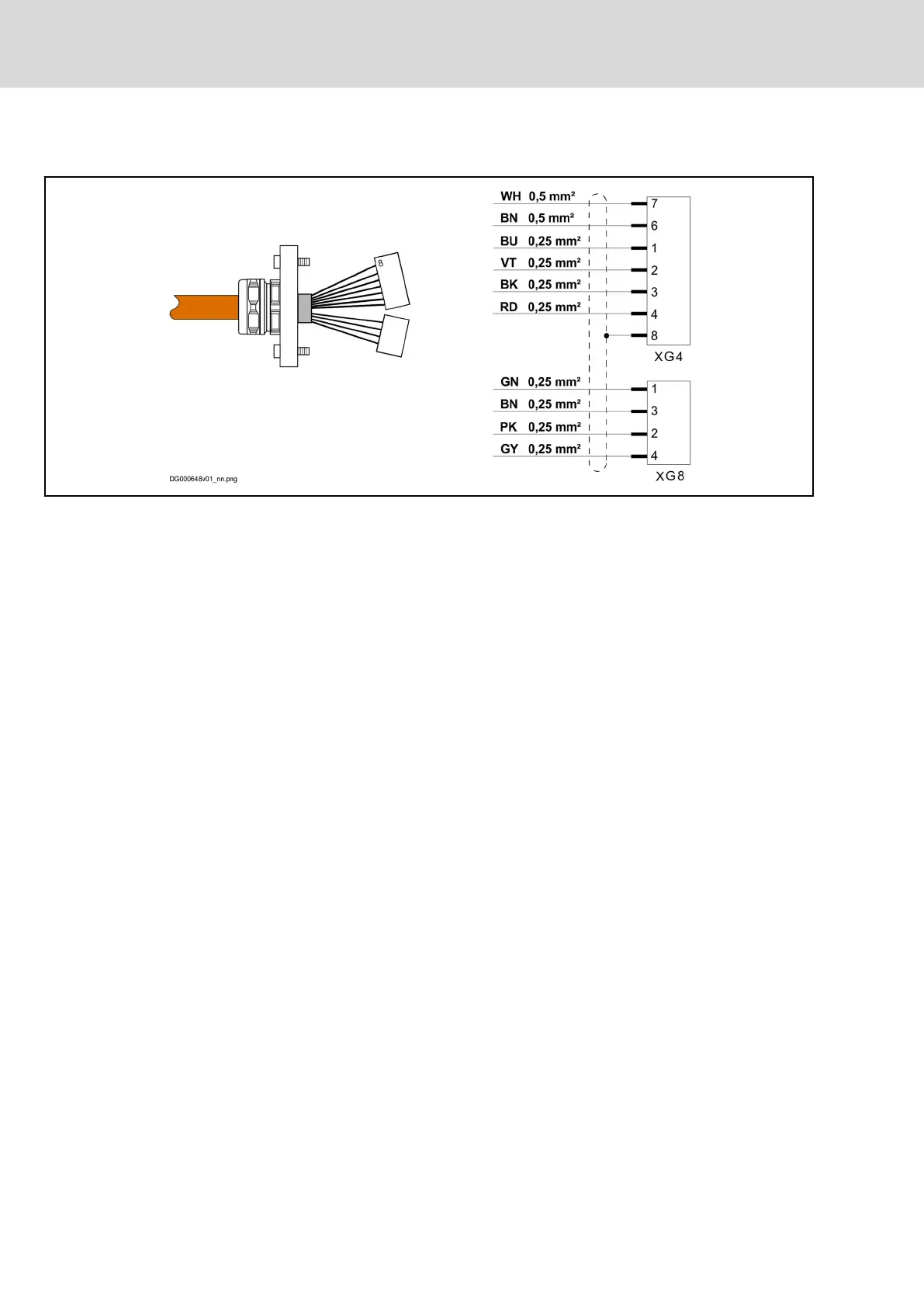

Fig. 10-28: RGS0725/K02
KMS03
Encoder cable:
● RG2-003AAB-NN-xxx,x (digital encoder)
● RG2-003ABB-NN-xxx,x (analog encoder)
