5.6.4 KLC03.1N-W04M7 dimensional drawing (forced cooling)
A Minimum mounting clearance
B Boring dimensions

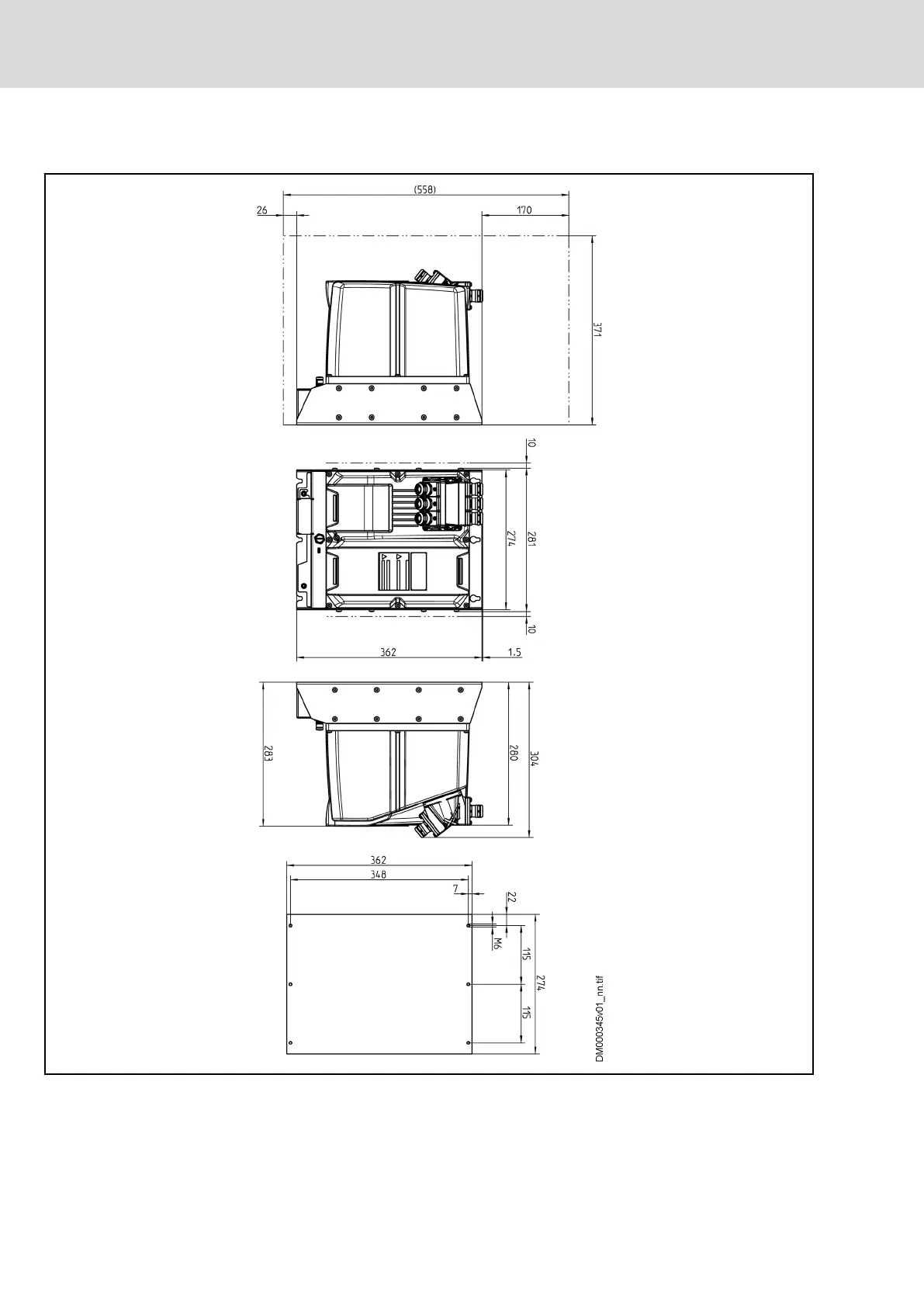

Fig. 5-29: KLC03.1N-W04M7 (forced cooling), dimensions
104/407
Technical data of the components
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
