10.22 RHS0725, KMS03 hybrid motor cable connector

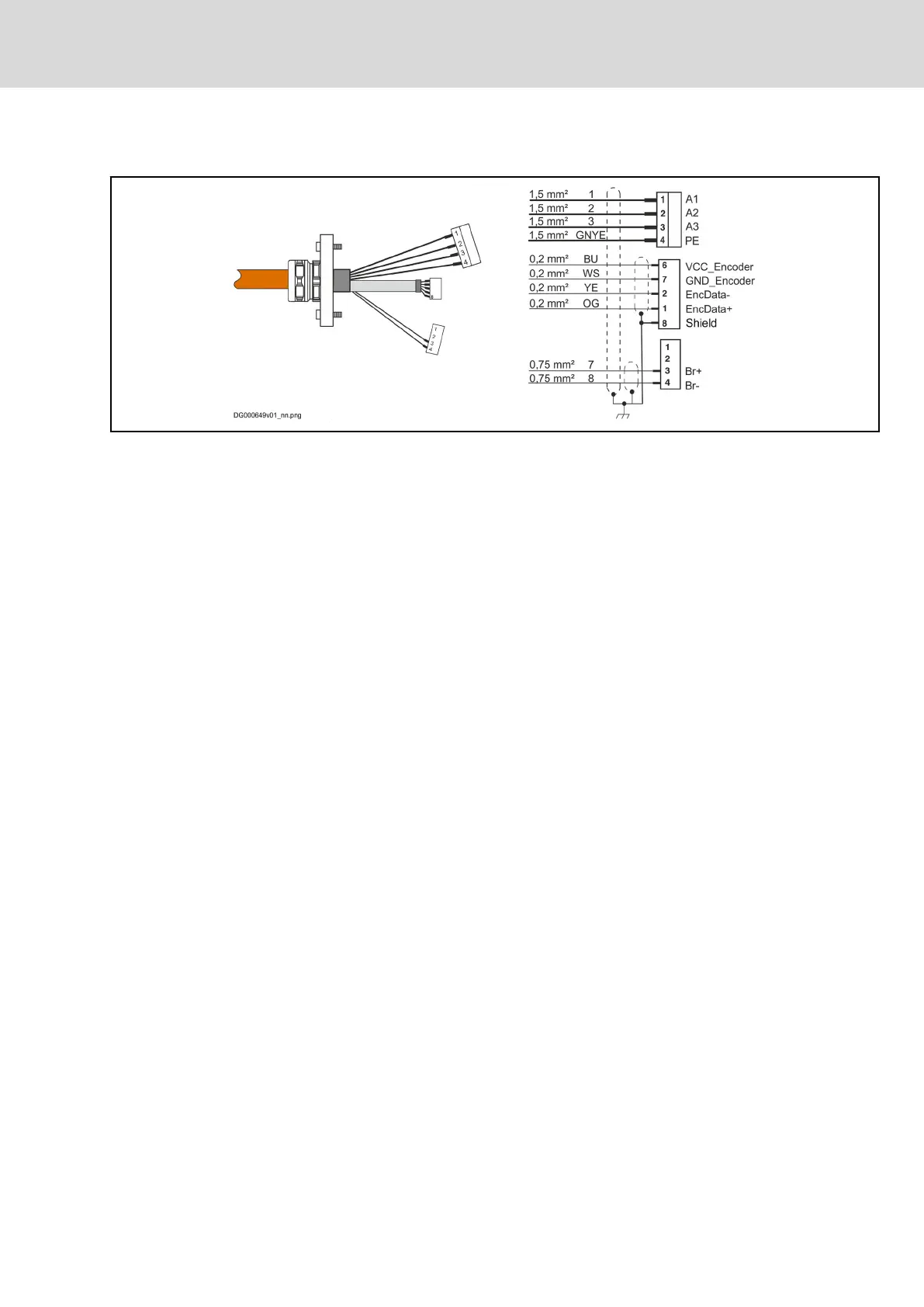

Fig. 10-29: RHS0725/K02
MS2N ↔ KMS03
Hybrid motor cable:
● RH2-029DBB-NN-xxx,x
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
