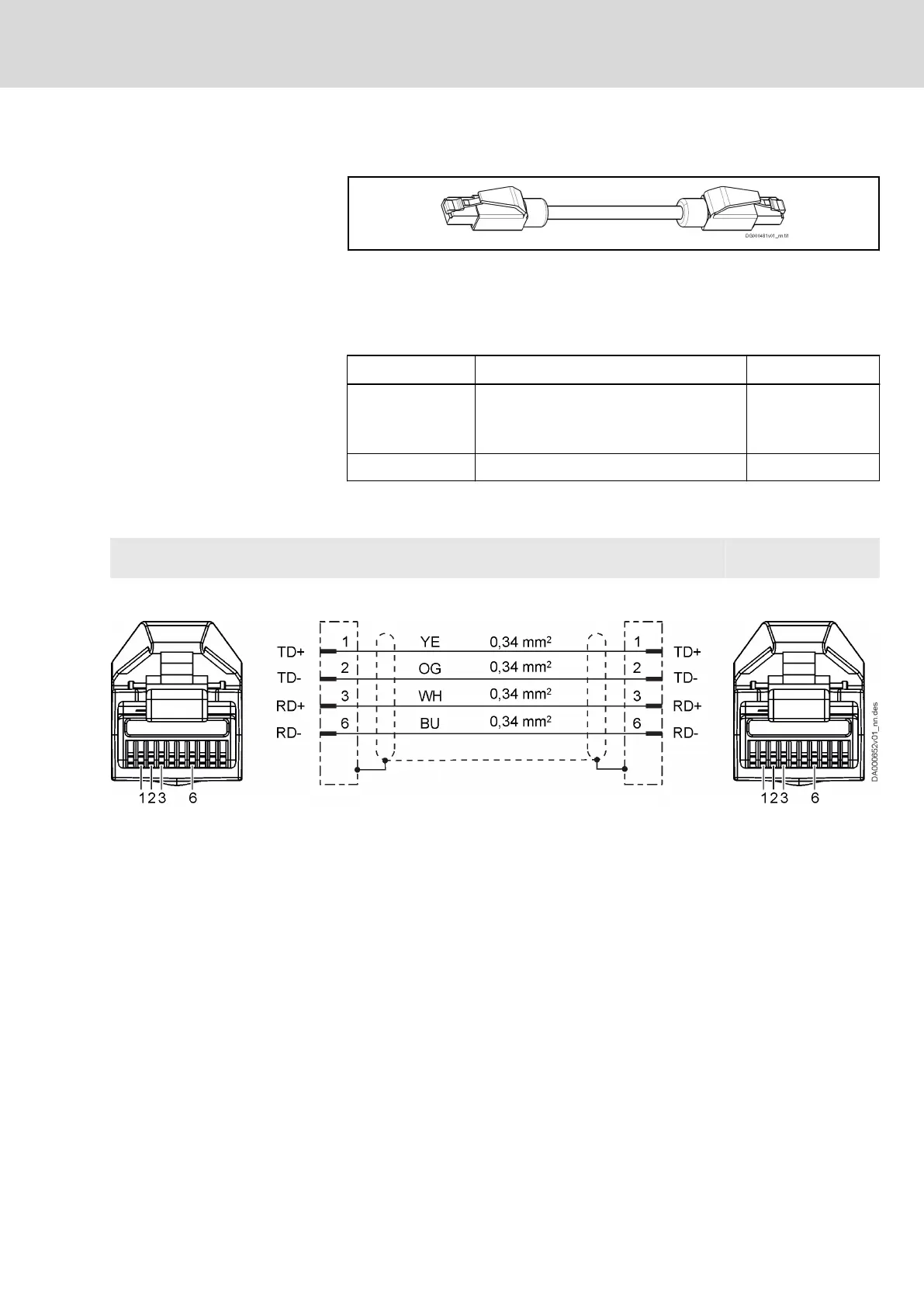

10.12 RKB0021, Multi-Ethernet cable
Fig. 10-20: RKB0021
Use
The cable connects the drive system to the higher-level control unit.
Length that can be ordered, order
code, material number
Length Order code Material number
To be freely
selected
(max. 100 m)
RKB0021/xxx,x (xxx,x = length in meters)
Example: 13.5 m ⇒ RKB0021/013,5
R911389159
5 m RKB0021/005,0 R911389205
Tab. 10-14: RKB0021
RKB0021
Plug-in connector bus Bulk cable Plug-in connector bus
RJ‑45, 4-pin REB0400 RJ‑45, 4-pin
Tab. 10-15: RKB0021 interconnection diagram
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
325/407
Accessories
R911335703_Edition 04 Bosch Rexroth AG
