8.2 Identifying and checking the delivered components
8.2.1 KSM type plate
Arrangement

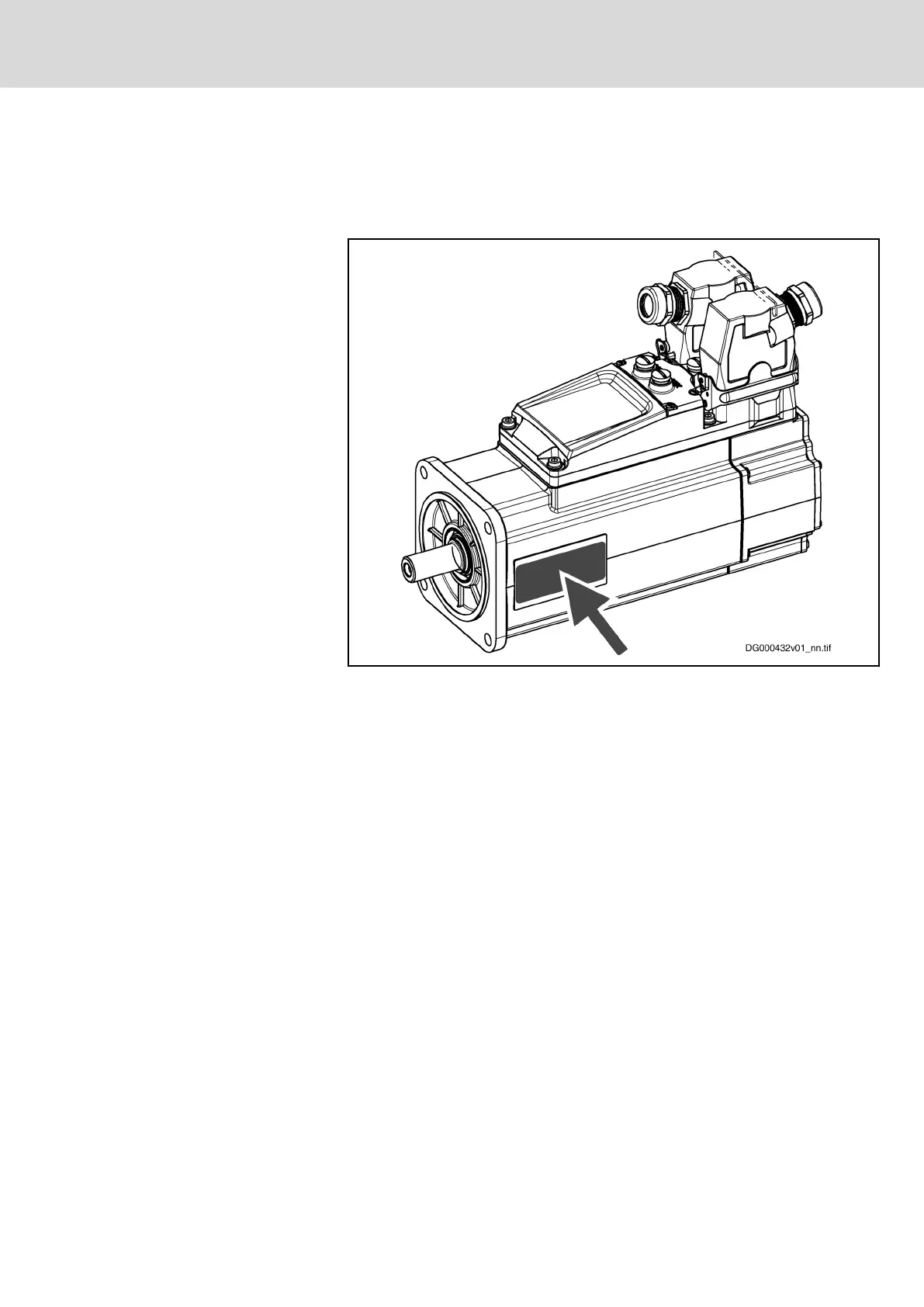

Fig. 8-1: Type plate arrangement
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
261/407
Identification
R911335703_Edition 04 Bosch Rexroth AG
