KNK03 - KMV03 (RKH0801)
Applies to: RKH0801
KNK03 plug-in connector Bulk cable KMV03 plug-in connector
RHS0019/K03 REH0803 RHS0020/K03

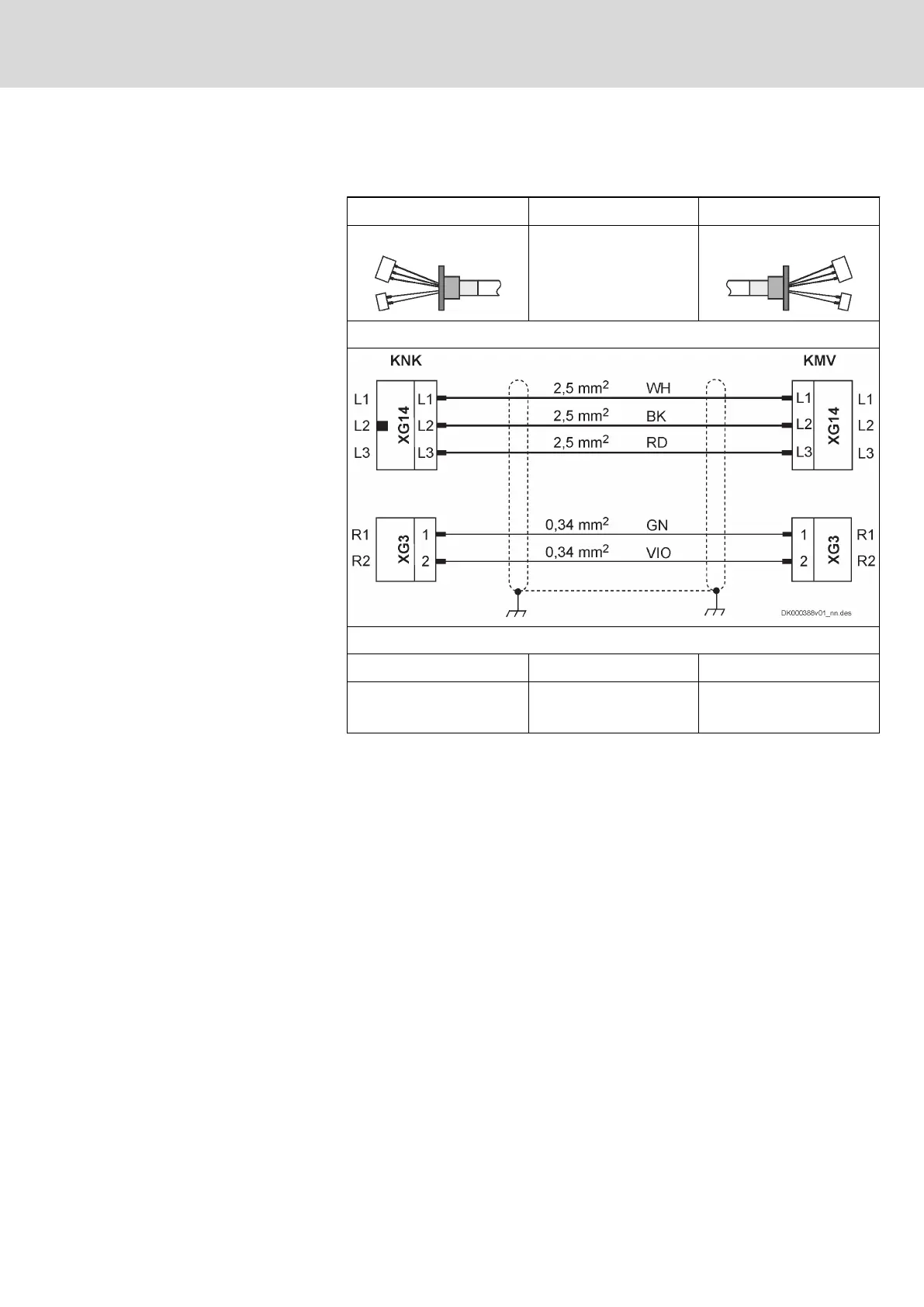

Interconnection diagram
KNK03/KMV03 plug-in connector
Cable type L-End R-End
RKH0801 XG14 connector
XG3 connector
XG14 connector
XG3 connector
Tab. 5-39: Parts of ready-made hybrid cables used for mains connection
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
139/407
Technical data of the components
R911335703_Edition 04 Bosch Rexroth AG
