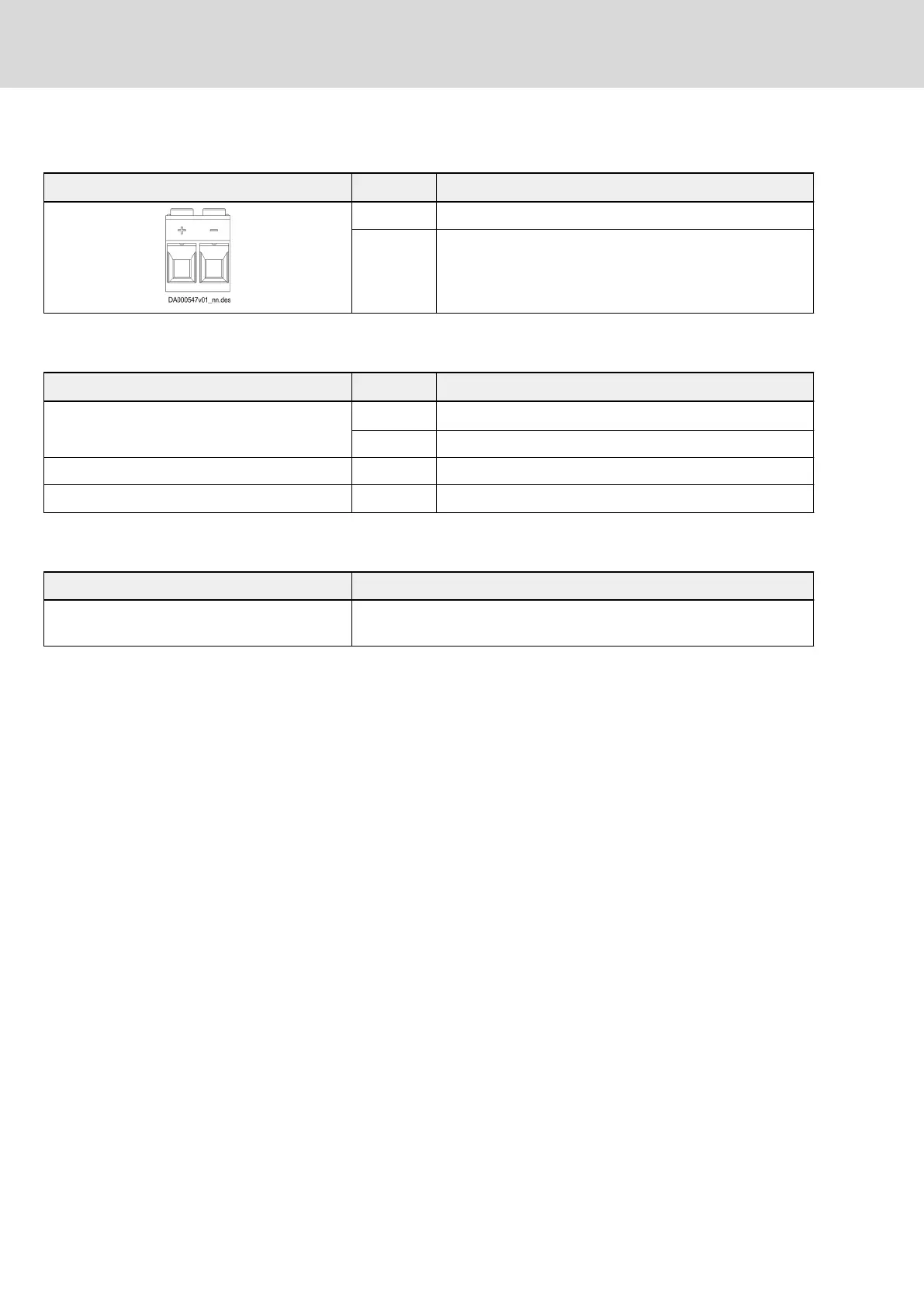

6.6.8 XD10, control voltage
View Connection Function
+ Control voltage positive pole
- Control voltage negative pole
Tab. 6-59: Pin assignment
Mechanical data
Screw terminal (connector) Unit max.
Connection cable
Stranded wire
mm
2
6
AWG 8
Stripped length mm 10
Tightening torque Nm 0.8
Tab. 6-60: Mechanical data
Cables
Description Value
Order type Cable cannot be ordered. Customer assembles the cable (HAS05.1-020
accessories required).
Tab. 6-61: Cables
6.6.9 XD13, fan power supply
Connection point for RKB0054 cable.
See chapter 10.17 "RKB0054, fan cable" on page 330.
202/407
Connection points
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
