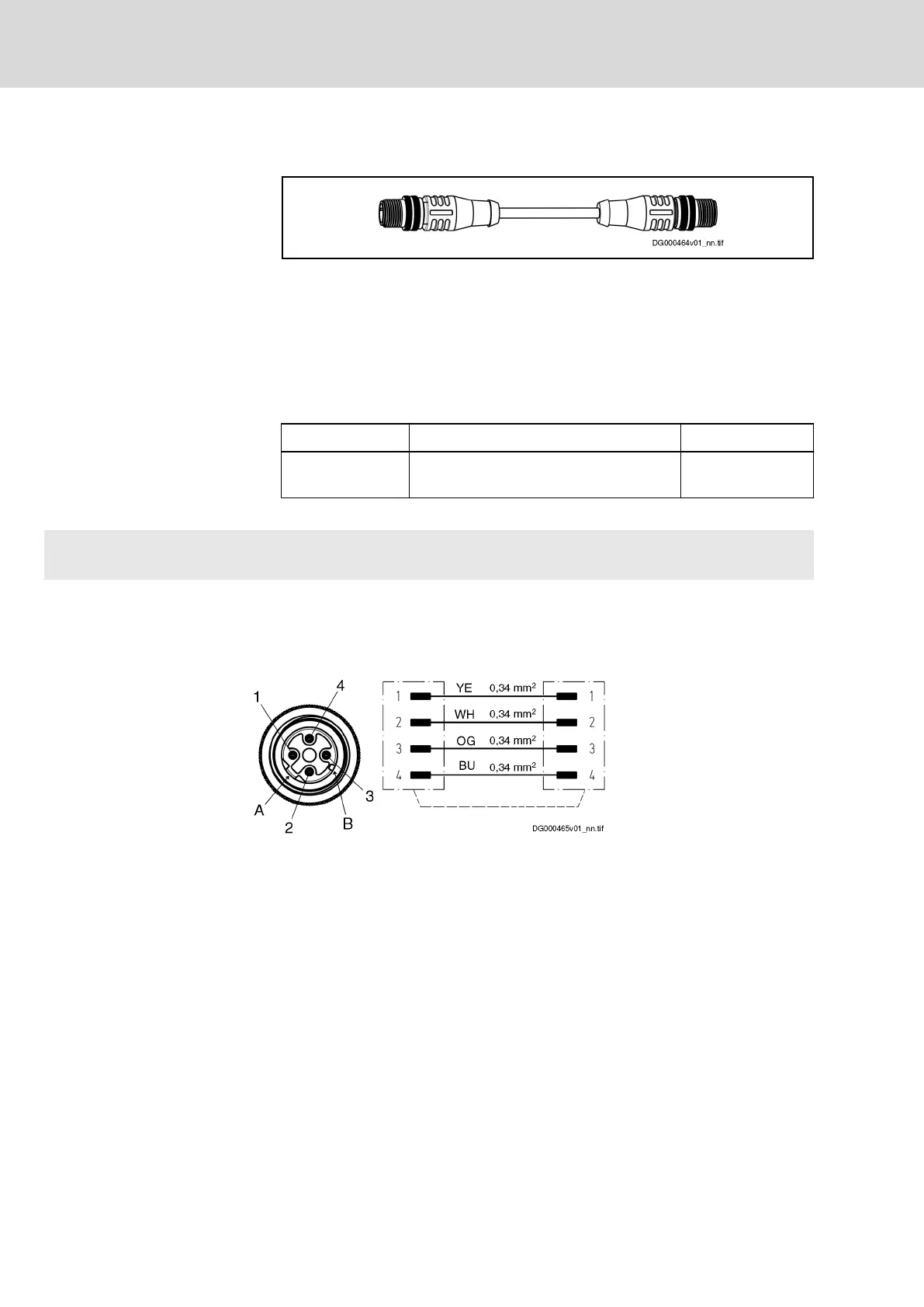

10.15 RKB0043, Communication Cable
Fig. 10-23: RKB0043
Assignment
1. For devices with unused communication output coupling (X108, X109).
The cable connects the connection points X108 and X109.
2. For devices with terminal connector RHS0014. The cable connects two
devices via the terminal connectors RHS0014.
Length That Can Be Ordered, Or‐
der Code, Material Number
Length Order code Material number
To be freely
selected
RKB0043/xxx,x (xxx,x = length in meters) R911172134
Tab. 10-20: RKB0043
RKB0043
Plug-in connector Bulk cable Plug-in connector
M12, 4-pin, male,
D‑coded
Bus cable (REB400) M12, 4-pin, male, D‑coded
Interconnection diagram
A: Coding groove; B: Coding nose
Tab. 10-21: Parts RKB0043
328/407
Accessories
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
