10.24 Metallic flange for circular connectors
For RKH09xx hybrid cables, a metallic flange can be fitted to the circular
connector.
This allows hybrid cable housing ducts to be implemented with a pluggable
connection at the housing (control cabinet, machine).

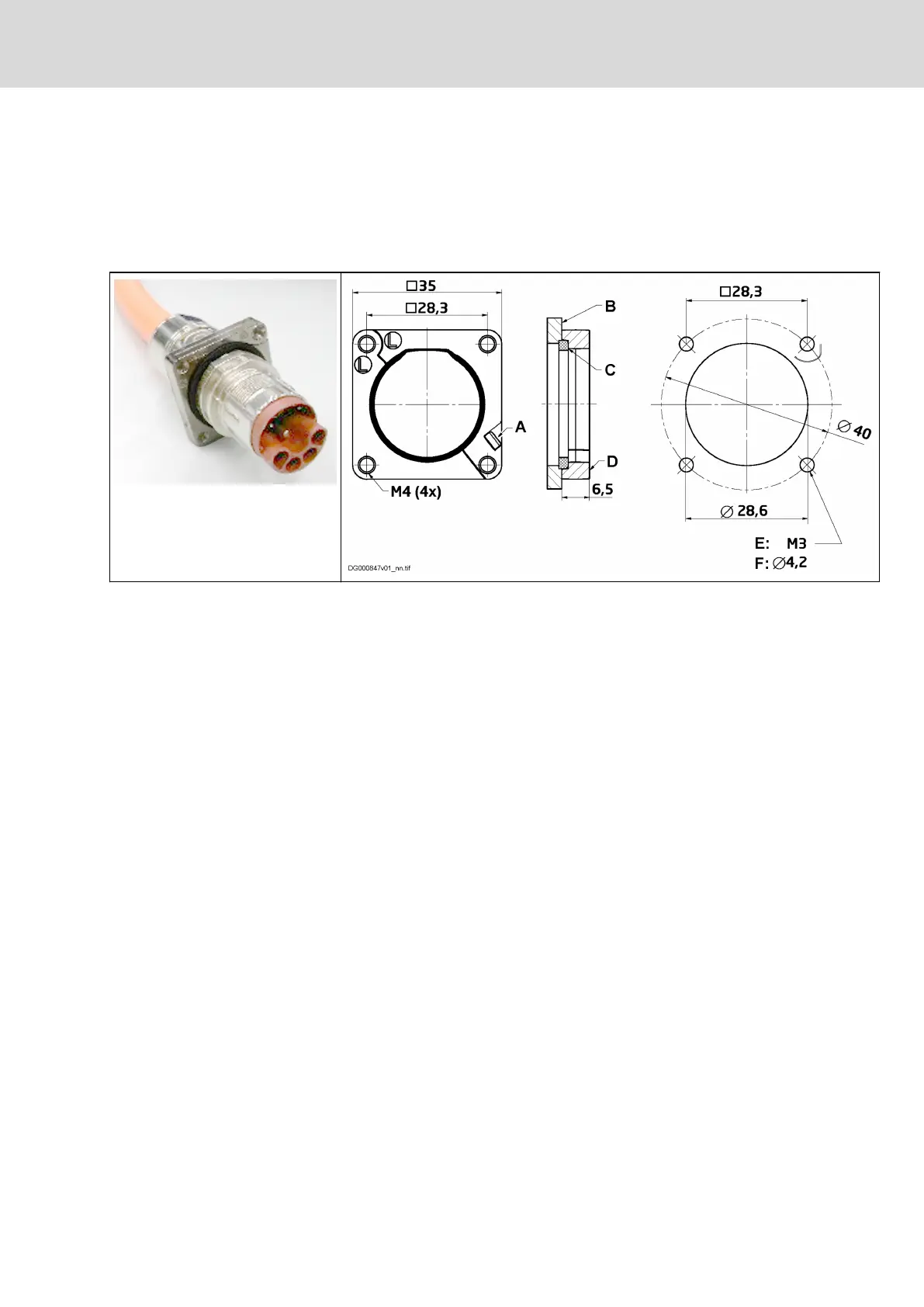

A Clamping screw
B Housing, control cabinet wall
C Gasket
D Flange
E Mounted to front wall
F Mounted to back wall
Tab. 10-29: Metallic flange for circular connectors
Supply source
Intercontec Produkt GmbH
Metallic flange (hinged) with sealing ring: E0.222.02
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
337/407
Accessories
R911335703_Edition 04 Bosch Rexroth AG
