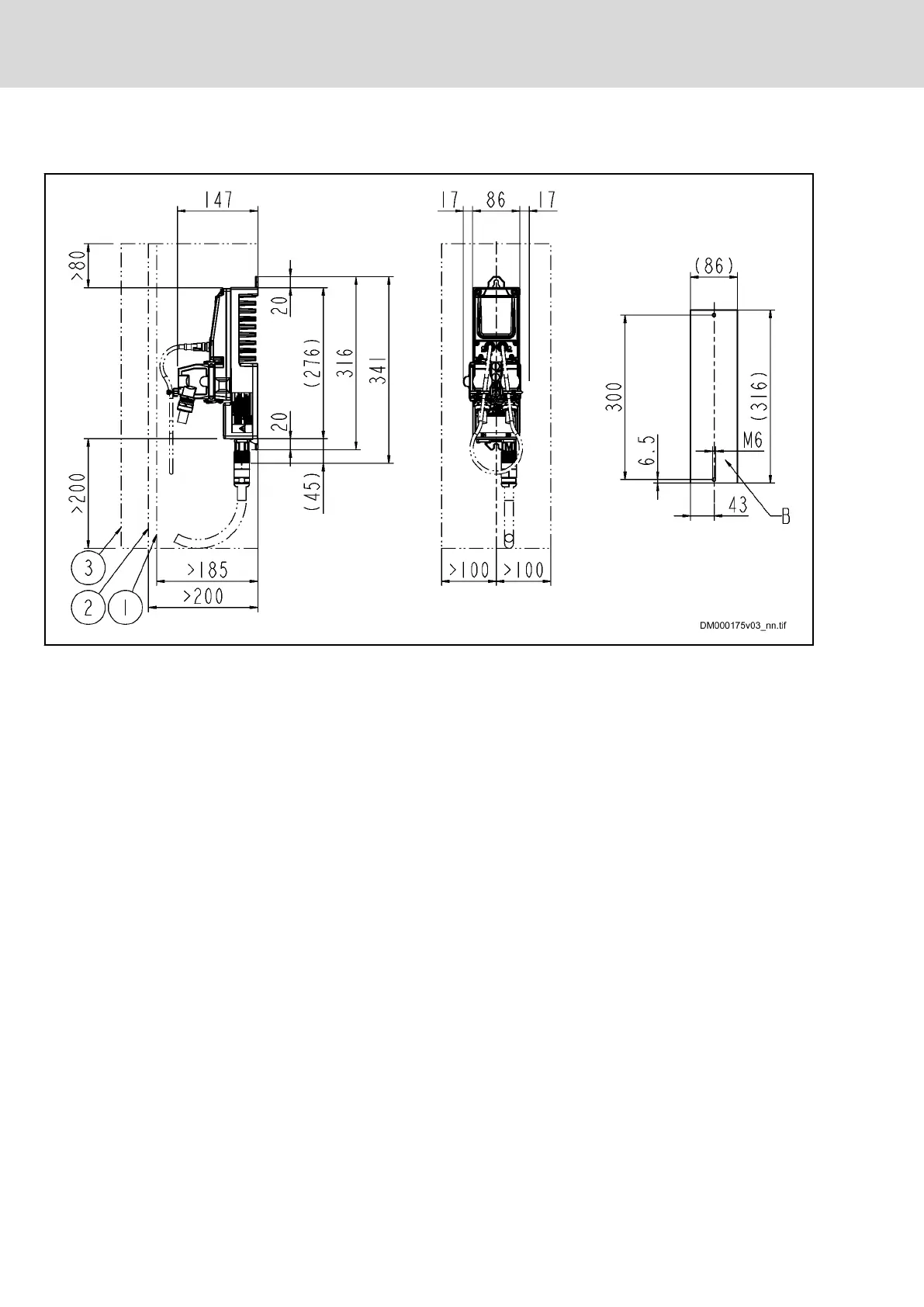

5.3.2 KMS02 dimensional drawing
1 Mounting clearance (standard)
2 Mounting clearance with optional master communication output
coupling
3 More mounting clearance with HAS10 accessory (fixing clip for
hybrid cable connectors). More mounting clearance is required
to install the HAS10 accessory with a screwdriver. The exact
dimension of the mounting clearance is not specified, since the
required mounting clearance depends on the length of the
screwdriver used.
B Boring dimensions
Fig. 5-20: Dimensions
84/407
Technical data of the components
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
