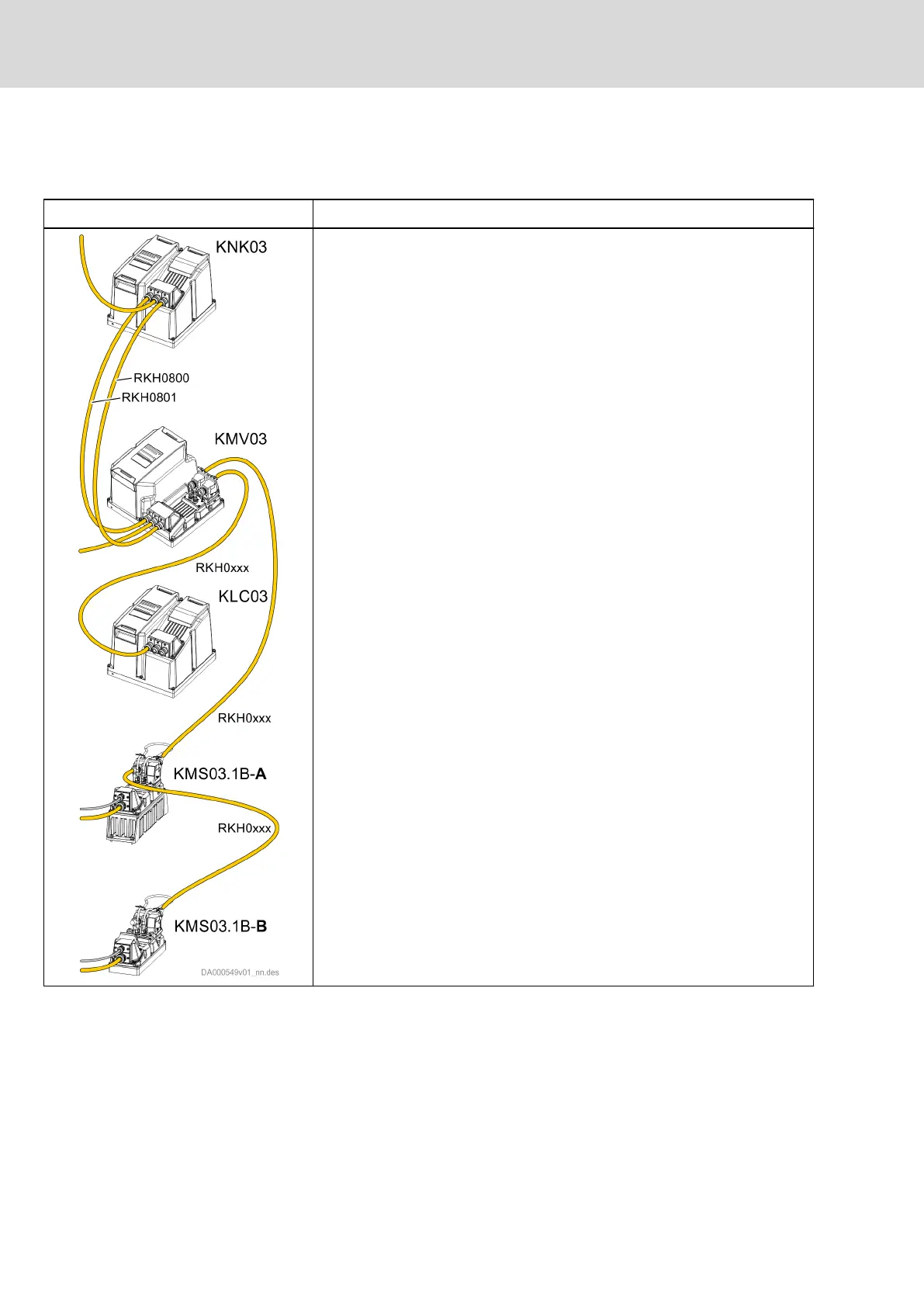

KNK03 mains filter, KMV03 supply unit, KLC03 DC bus capacitor unit, KMS03 near motor
servo drive
Components Features
Cabinet free, distributed drive technology
KNK03, mains filter
Degree of protection IP65
Integrated mains choke
Integrated mains contactor
Cooling types: natural convection, forced cooling with fan, cold plate
mounting, insulated mounting
KMV03, supply unit
Degree of protection IP65
Integrated brake chopper
Multi-Ethernet communication
KSM02 and KMS02 can also be supplied
Cooling types: natural convection, forced cooling with fan, cold plate
mounting, insulated mounting
KLC03, DC bus capacitor unit
Degree of protection IP65
Integrated overload protection
Cooling types: natural convection, forced cooling with fan, cold plate
mounting
KMS03, near motor servo drive
Degree of protection IP65
With heat sink (KMS03.1B-A)
With thermal interface for cold plate mounting (KMS03.1B-B)
MultiEncoder interface: Hiperface, Endat 2.1/2.2, SSI, Safety 4 Wire,
1 V
pp
4 digital inputs and outputs, two thereof can be used as fast probe inputs
Multi-Ethernet communication
External Multi-Ethernet communication (optional)
Multi-Ethernet communication output coupling (optional)
Safe Torque Off or Safe Motion safety technology (optional)
Integrated Motion Logic in accordance with IEC 61131-3
4/407
System presentation
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
