5.7.4 KNK03.1A-NR-Wxxxx dimensional drawing (forced cooling)
A Minimum mounting clearance
B Boring dimensions

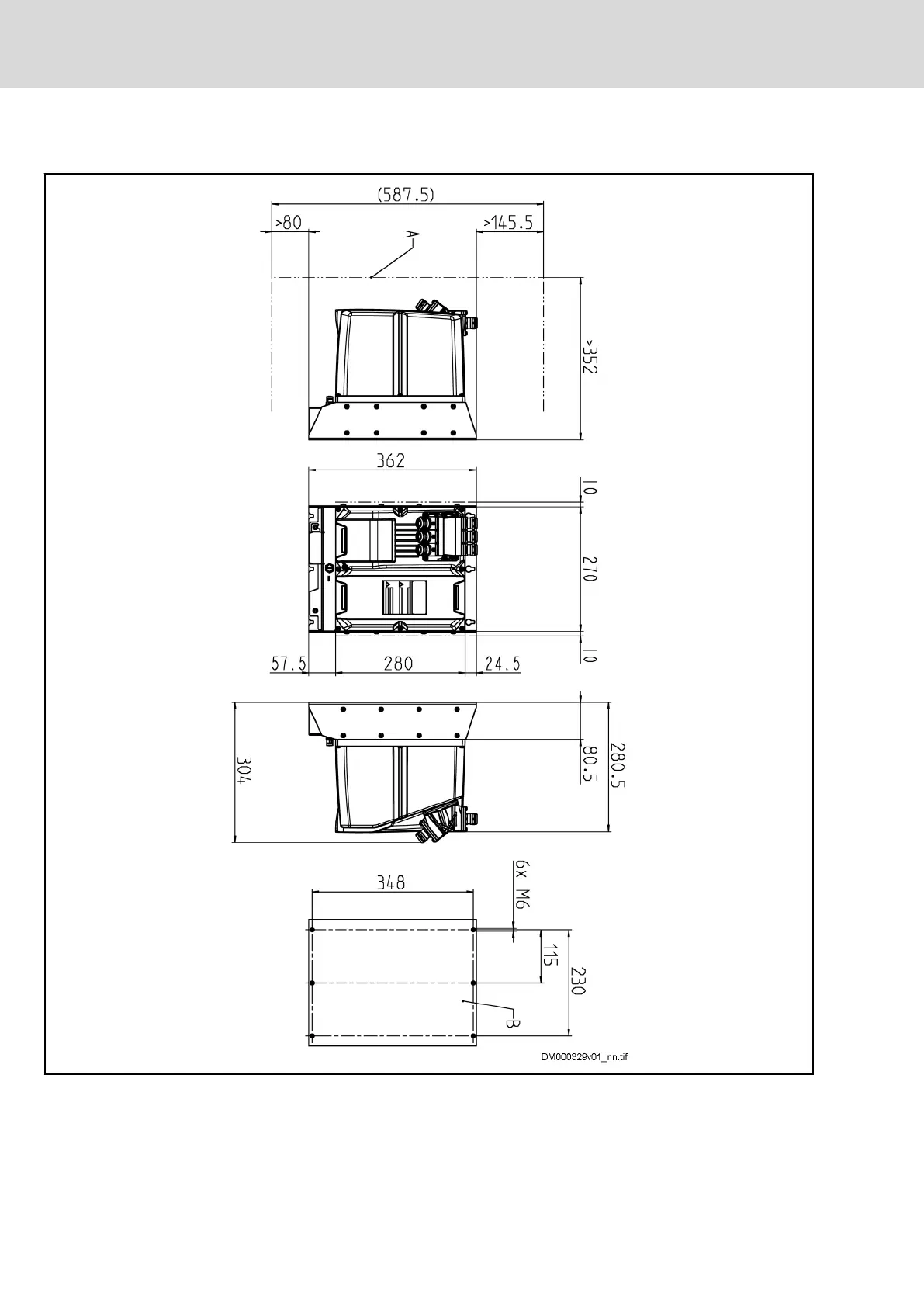

Fig. 5-32: KNK03.1A-NR-Wxxxx (forced cooling), dimensions
