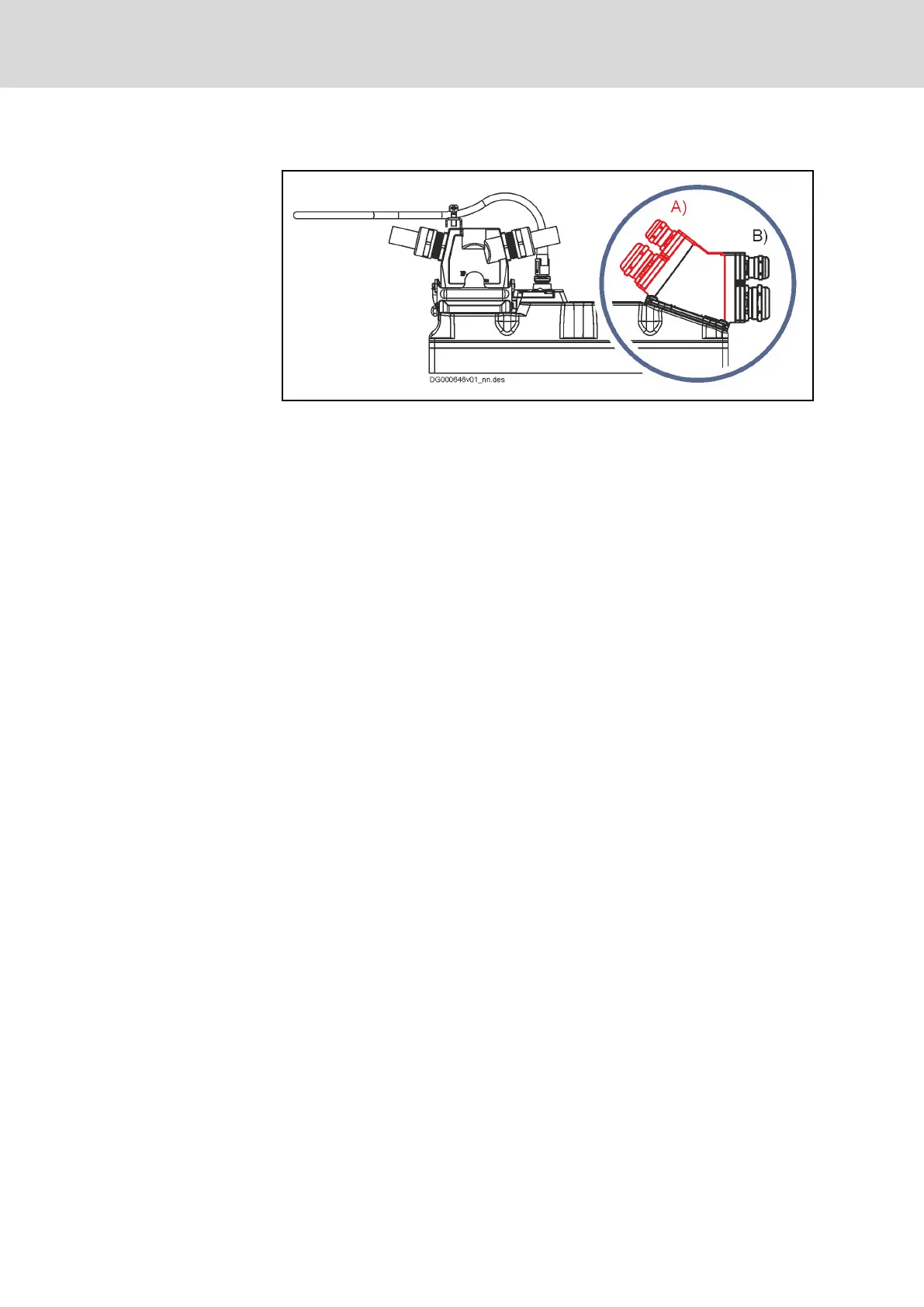

Connection cover: Mounting options
A) Cable outlet toward the housing
B) Cable outlet away from the housing
Fig. 6-15: Connection cover: Mounting options
Two-piece connection cover
See chapter 14.3 "Two-piece connection cover" on page 374.
188/407
Connection points
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
