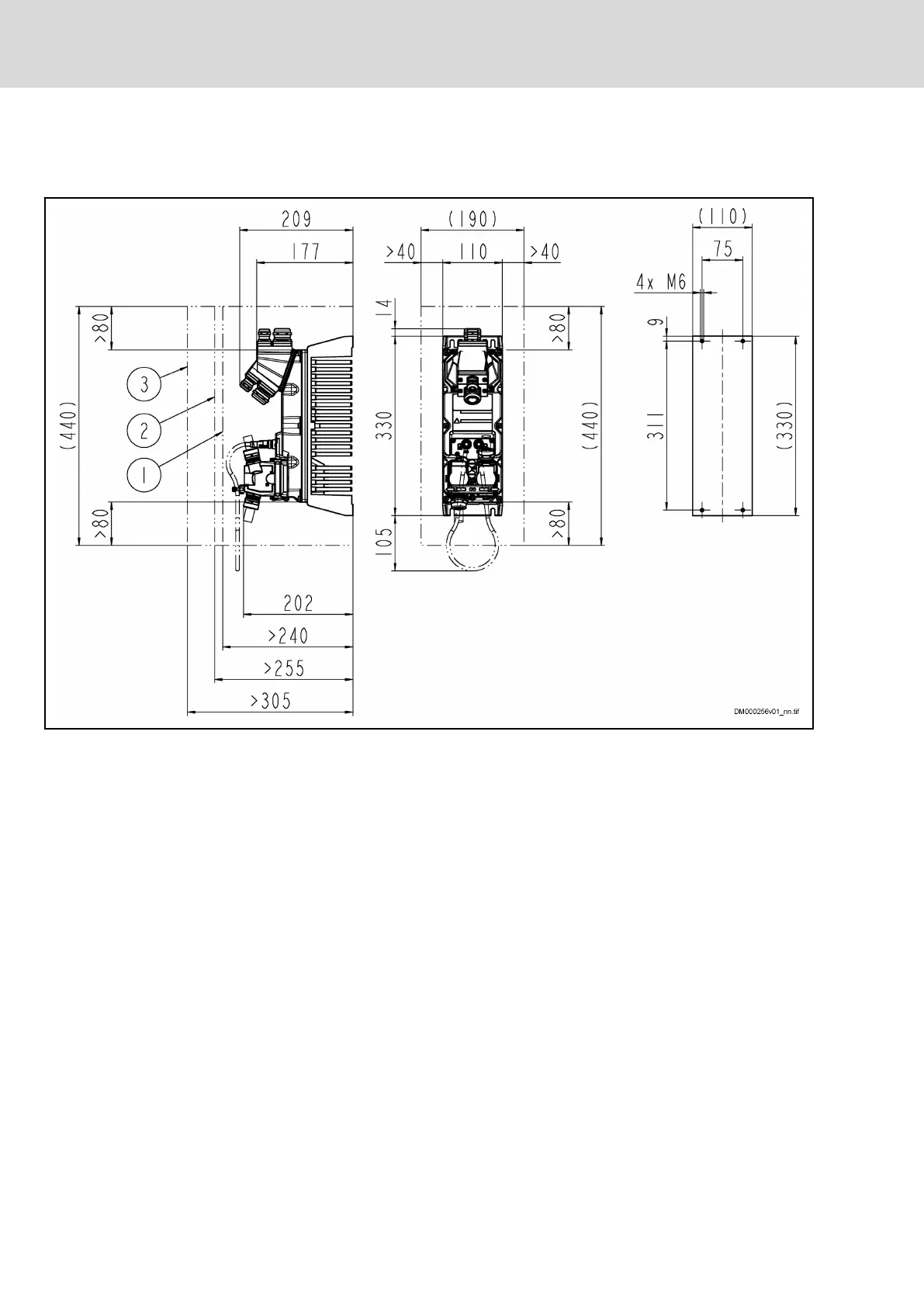

5.8.2 KMS03 dimensional drawing
KMS03.1B-A036
1 Mounting clearance (standard)
2 Mounting clearance with optional master communication output
coupling
3 More mounting clearance with HAS10 accessory (fixing clip for
hybrid cable connectors). More mounting clearance is required
to install the HAS10 accessory with a screwdriver.
Fig. 5-33: KMS03.1B-A, dimensions
112/407
Technical data of the components
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
