RHS0014 terminal connector
RHS0014 terminal connector
Each line of drives has to be terminated at the last connection point X103.2,
using terminal connector RHS0014 (material number: R911335793). The
terminal connector is not coded.
C Protective cap
M12 4-pin socket, D-coded; the pins are internally connected to the
contacts for Multi-Ethernet communication (Tx+, Tx-, Rx+, Rx-);
the connection point can be used for the drive system Engi‐
neering

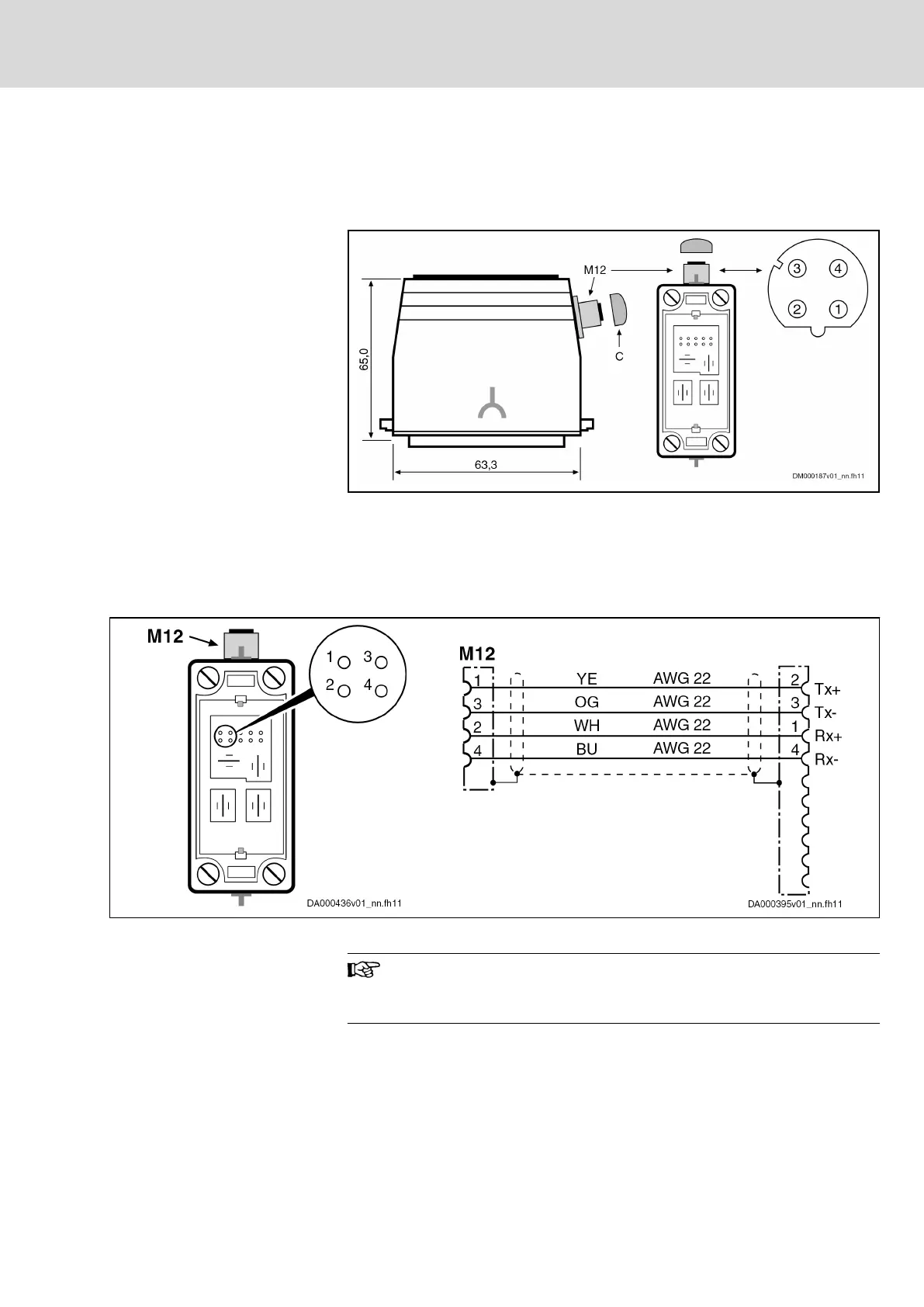

Fig. 5-38: RHS0014 terminal connector
Tab. 5-34: Internal M12 socket wiring
If it is difficult to access the M12 socket in your drive system:
Connect a cable (e.g. RKB0043) to the M12 socket and position
the end of the cable at an easily accessible point.
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
133/407
Technical data of the components
R911335703_Edition 04 Bosch Rexroth AG
