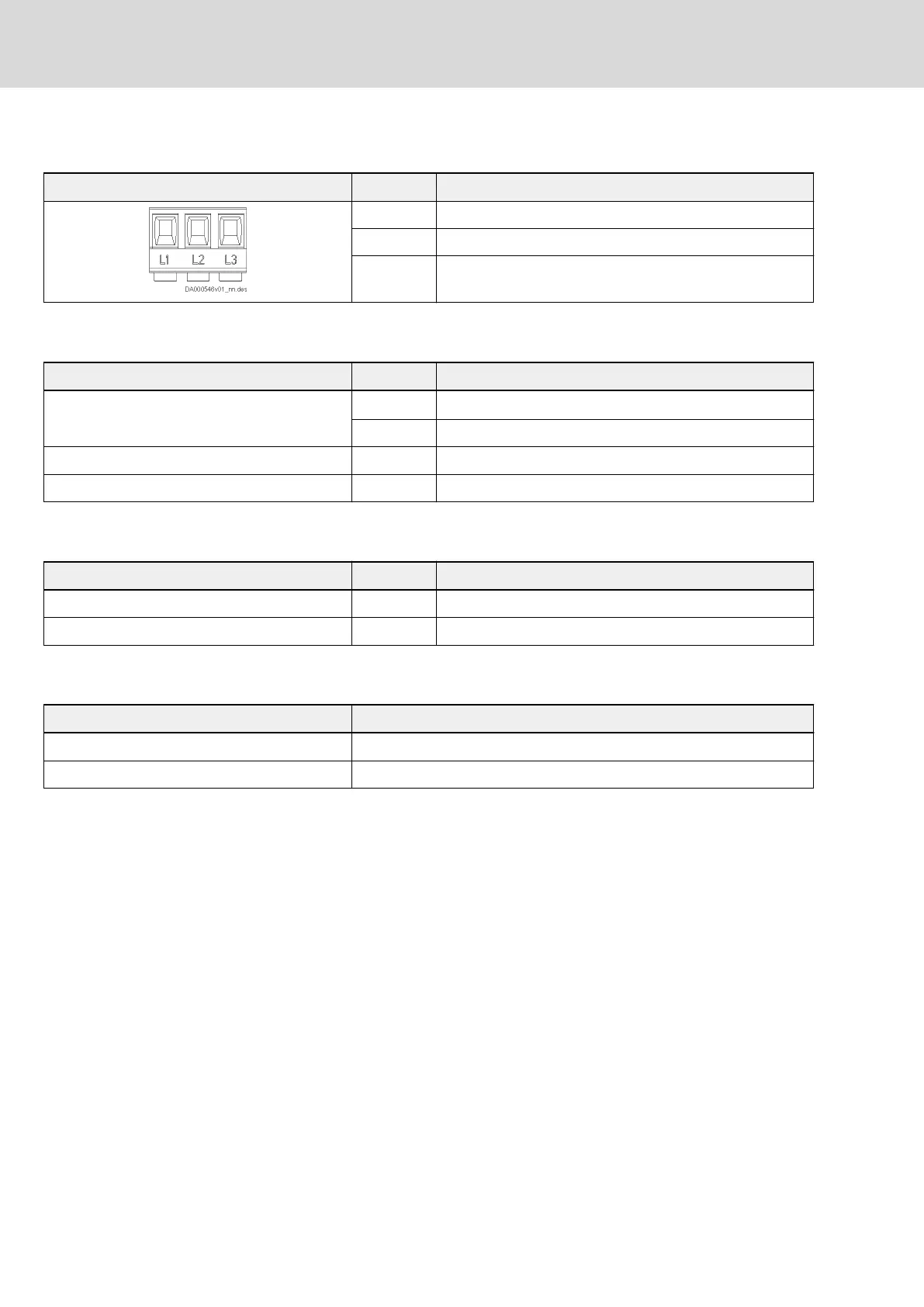

6.7.6 XG14, mains voltage synchronization
View Connection Function
L1 Connection to supply unit (XG14 L1)
L2 Connection to supply unit (XG14 L2)
L3 Connection to supply unit (XG14 L3)
Tab. 6-80: Pin assignment
Mechanical data
Screw terminal (connector) Unit max.
Connection cable
Stranded wire
mm
2
6
AWG 8
Stripped length mm 10
Tightening torque Nm 0.8
Tab. 6-81: Mechanical data
Electrical data
Screw terminal (connector) Unit Value
Nominal current A 41
Rated voltage V 1000
Tab. 6-82: Electrical data
Cables
Description Value
Order type RKH0801
Maximum allowed length 1 m
Tab. 6-83: Cables
210/407
Connection points
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
