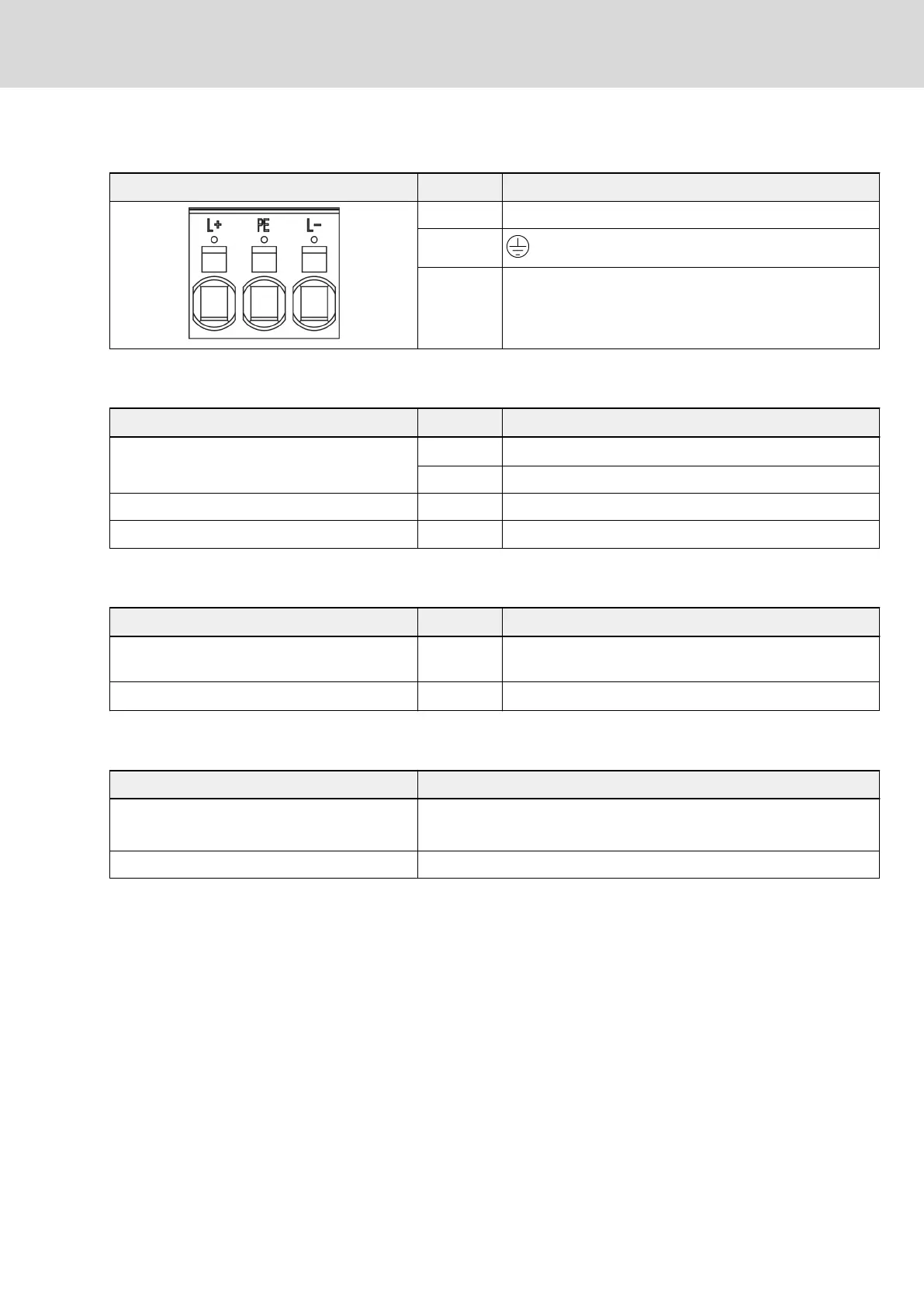

6.8.4 X54.1, X54.2; DC bus
View Connection Function
L+ DC bus positive pole
PE
L- DC bus negative pole
Tab. 6-93: Pin assignment
Mechanical data
Screw terminal (connector) Unit max.
Connection cable
Stranded wire
mm
2
6
AWG 8
Stripped length mm 10
Tightening torque Nm 0.8
Tab. 6-94: Mechanical data
Electrical data
Screw terminal (connector) Unit Value
Occurring current load and minimum required
connection cross section
A See technical data (I
L_cont
, I
L_max
and A
LN
)
Occurring voltage load V See technical data (U
LN
)
Tab. 6-95: Electrical data
Cables
Description Value
Order type RKH0802 (KMV03 ↔ KLC03)
RKH0803 (KLC03 ↔ KLC03)
Maximum allowed length tbd m
Tab. 6-96: Cables
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
215/407
Connection points
R911335703_Edition 04 Bosch Rexroth AG
