HMV02 used as supply unit

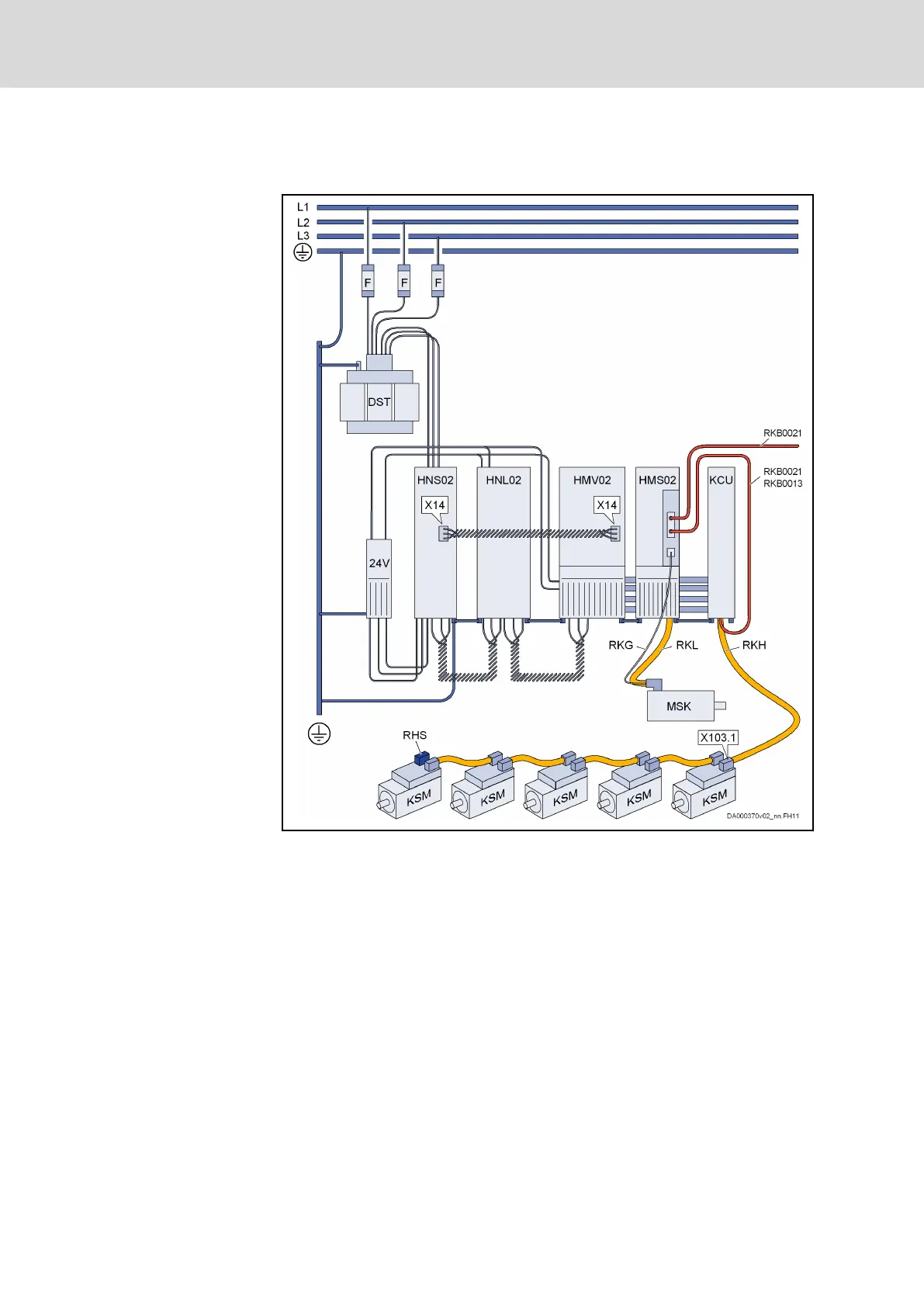

IndraDrive Mi drive system with HMV02 supply unit:
24V 24V supply
DST Transformer (optional)
F Fuses
HMS02 Inverter (optional)
HMV02 Supply unit
HNS02 Mains filter with switch-disconnector
HNL02 Mains choke
KCU Drive connection box
KSM Motor-integrated servo drive
MSK Servo motor (optional)
RHS Terminal connector
RKB Communication cable
RKG Encoder cable (optional)
RKH Hybrid cable
RKL Motor cable (optional)
X14 Mains synchronization (only with regenerative HMVs)
X103.1 Connection of RKH hybrid cable at first KSM
Fig. 9-7: IndraDrive Mi drive system with HMV02
292/407
Mounting and installation
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
