7.3.4 Holding brakes
Brake control and supply
The integrated holding brake is supplied from the control voltage U
N3
. It can
only be switched via the firmware or SERCOS commands. It is an electrically
releasing holding brake.
t
1
Clamping delay
t
2
Release delay

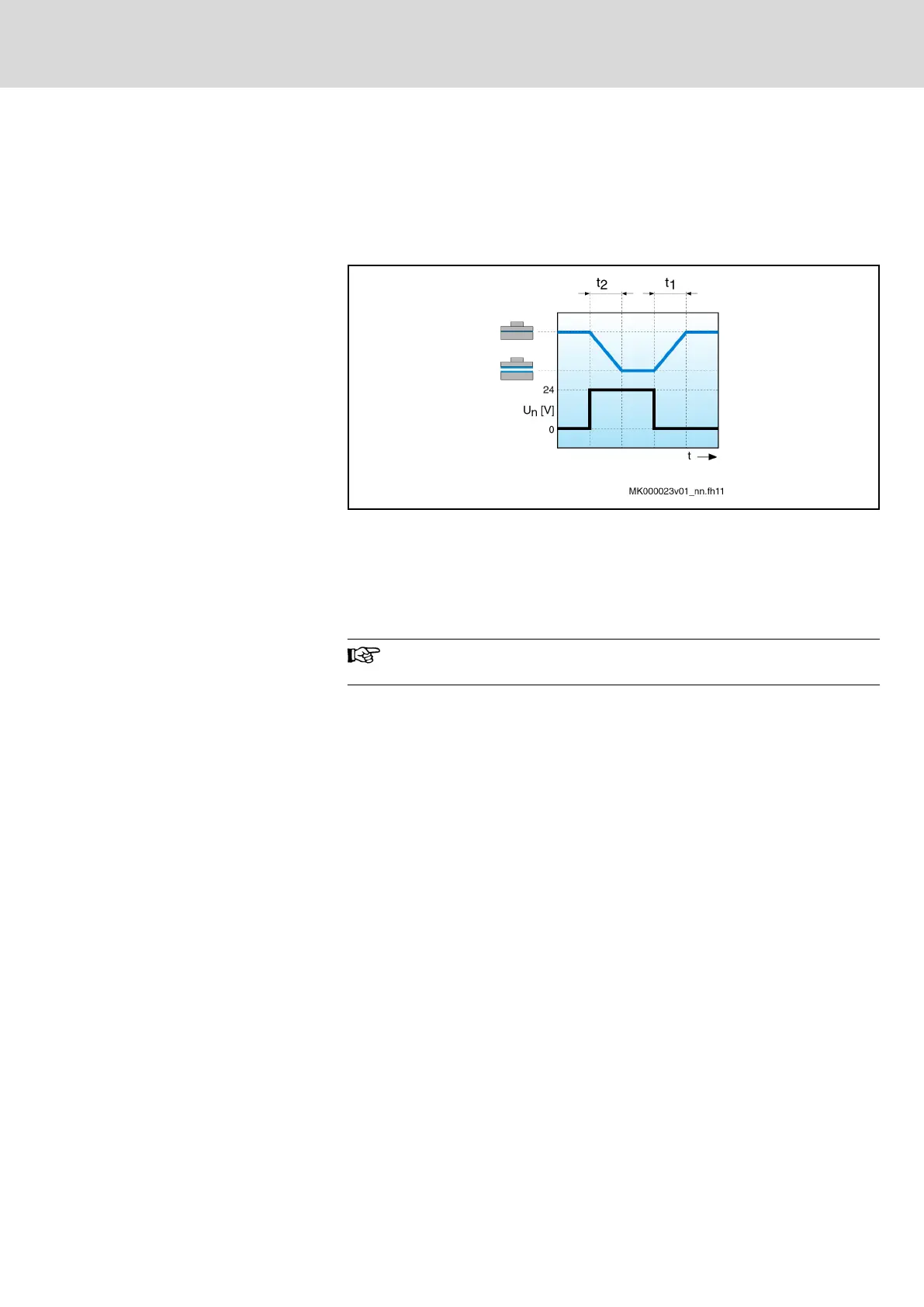

Fig. 7-29: Holding brake diagram
The holding brake should not be used to stop the turning motor during normal
operation! The holding brake should not be used for safety-relevant purposes
either.
Holding brakes are available as an option. The supplied holding
brake has been adapted to the corresponding motor!
Safety requirements
In normal operation, use the brake only in standstill and for performing the
drive-integrated brake test. The holding brake is required for holding the axis
when the machine is in a de-energized state.
Observe the safety requirements for system design:
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
253/407
Notes on project planning
R911335703_Edition 04 Bosch Rexroth AG
