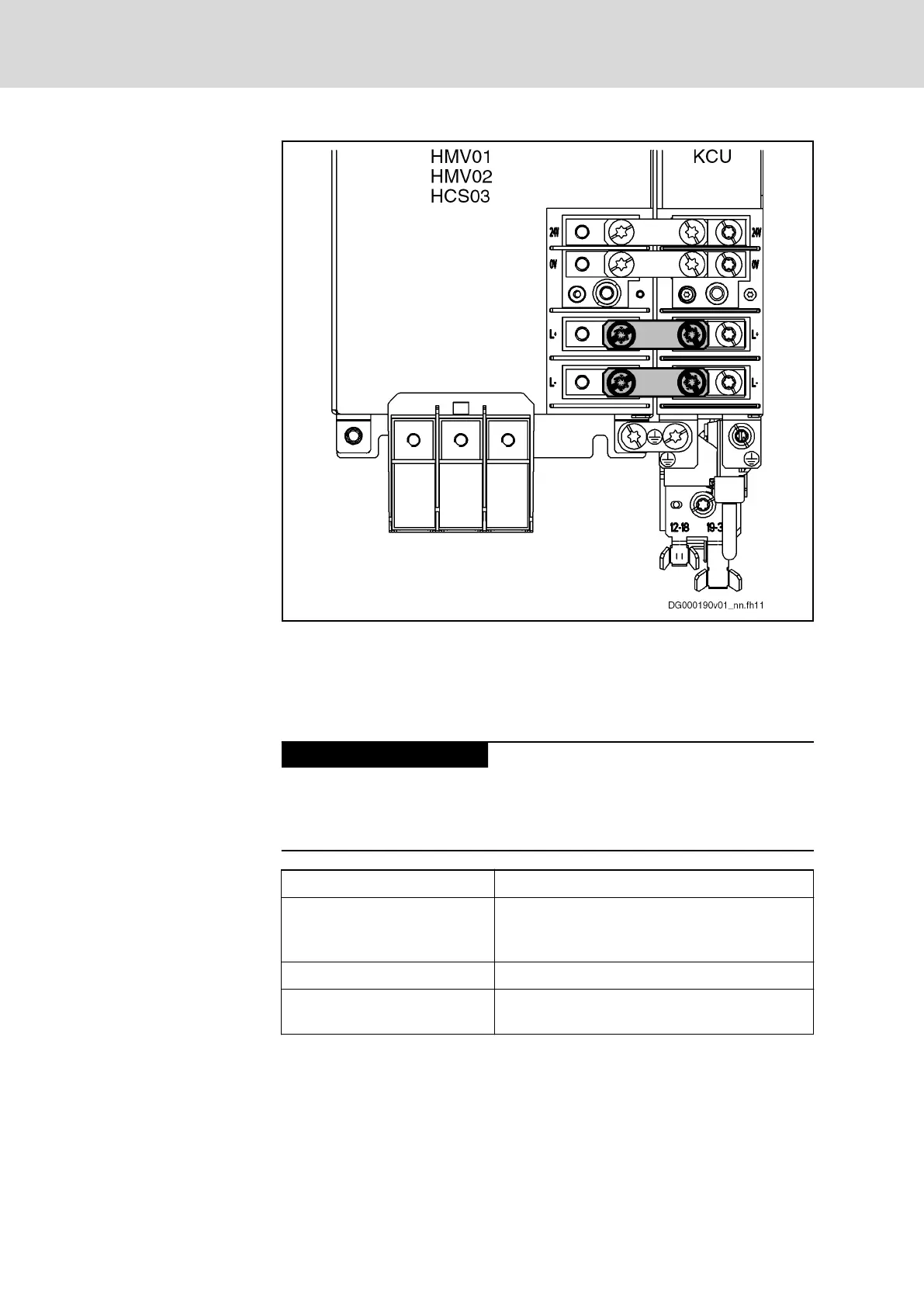

Fig. 6-2: Connection of Contact Bars
Notes on Installation
If in special cases it is not possible to use the contact bars provided to
establish the connection, the connection must be established using the
shortest possible twisted wires.
Risk of damage by voltage arcing!
Insulate ring terminals and lines with a heat-shrinkable sleeve. Afterwards,
only strip the insulation of the contact surface of the ring terminal.
 When connecting the lines, make sure the polarity is correct.
Length of twisted wire Max. 2 m
Line cross section
Min. 10 mm
2
,
but not smaller than cross section of supply
feeder
Line protection By means of fuses in the mains connection
Dielectric strength of single
strand against ground
≥ 750 V (e.g.: strand type – H07)
Tab. 6-13: DC Bus Line
154/407
Connection points
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
