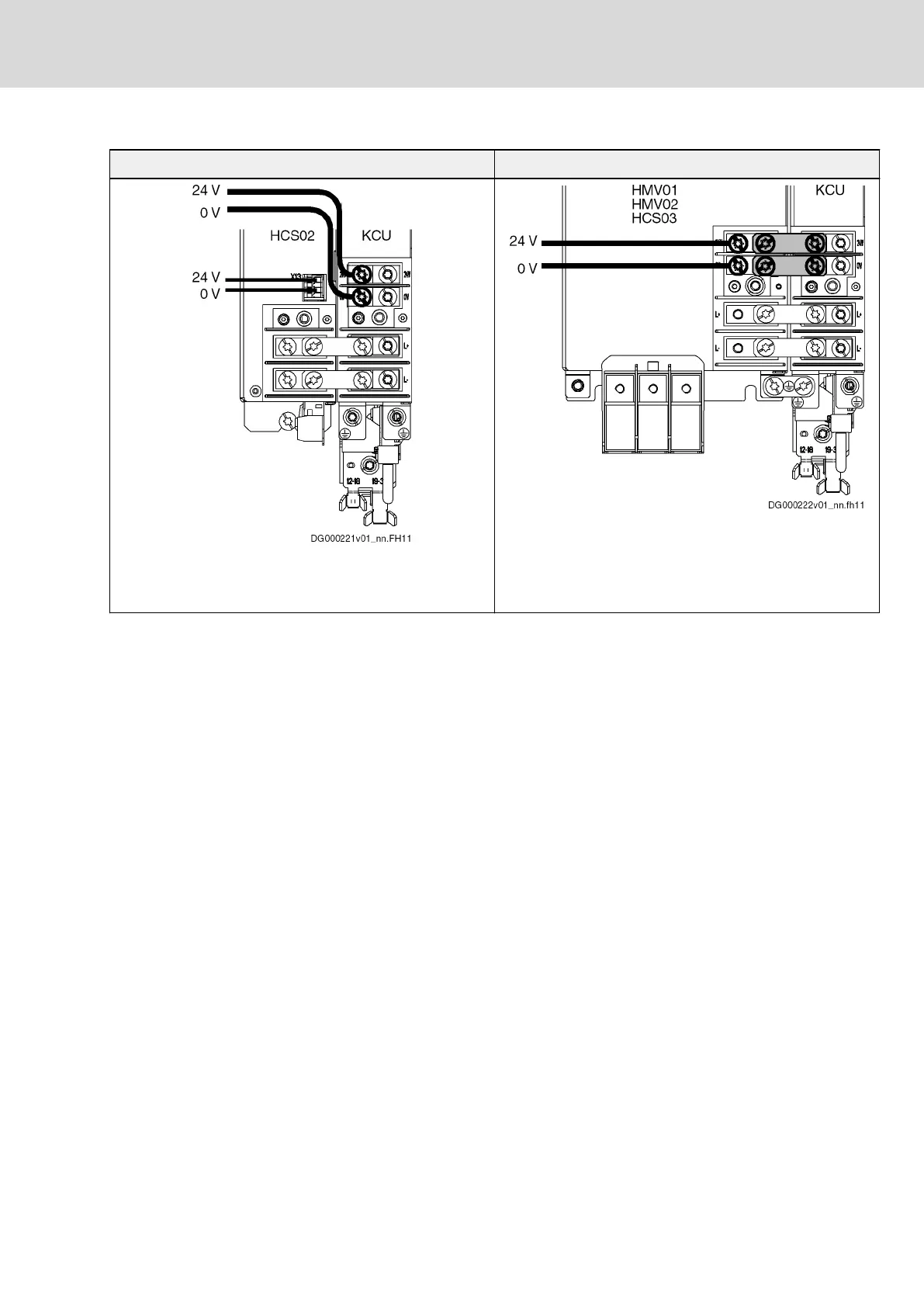

HCS02 HCS03, HMV01, HMV02
For HCS02 devices, the 24V supply is connected to the
drive connection box KCU with cables (cross section: min.
6 mm
2
(AWG 10)).
For HCS03, HMV01 and HMV02 devices, the 24V supply is
connected to the drive connection box KCU with contact
bars.
Tab. 6-16: Connecting the 24V supply
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
157/407
Connection points
R911335703_Edition 04 Bosch Rexroth AG
