Devices with communication out‐
put coupling
Information for devices with connection points for com‐
munication (e.g., X108/X109 or X118/X119)

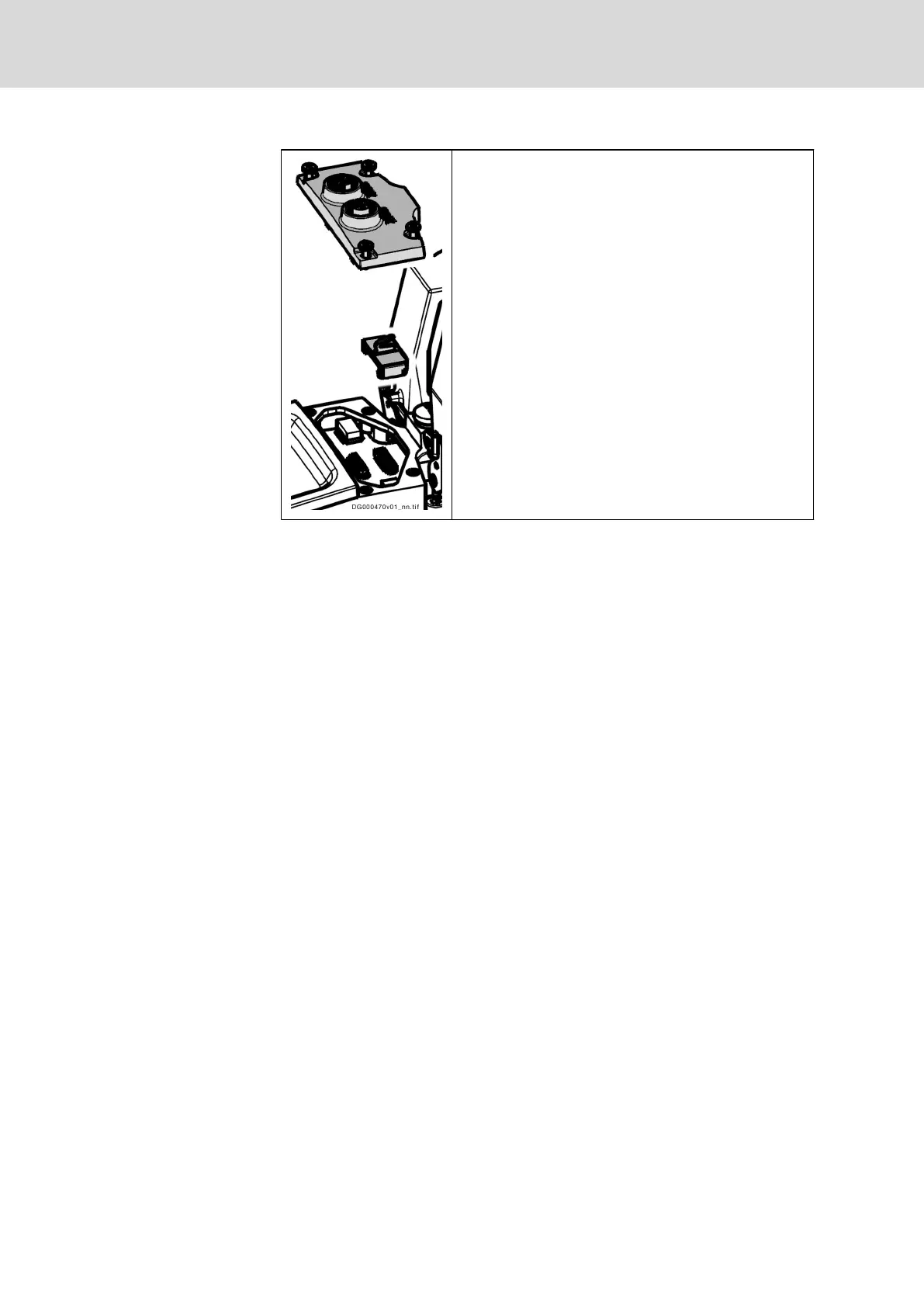

● The cover may only be removed from the housing
in vertical upward direction and placed onto the
housing in vertical downward direction.
Never rotate the cover while placing it back onto
the housing and tightening the screws. Otherwise,
the plug-in connections might be damaged.
● At the bottom of the cover with the connection
points there is a circuit board.
Always leave this circuit board at its place.
Otherwise, the seals (O‑rings) might fall out of the
cover.
● Before placing the cover back onto the housing
and tightening the screws:
Ensure that the circuit board with the connection
points is still correctly plugged in under the cover.
Tab. 6-22: Cover with connection points
