Unused output coupling
If you do not use the communication output coupling, connect X108 and
X109 to the RKB0043 cable. Otherwise, the communication in the drive line
is interrupted. The HAS10.1-001-002-NN accessory is used to fasten the
cable to the device.

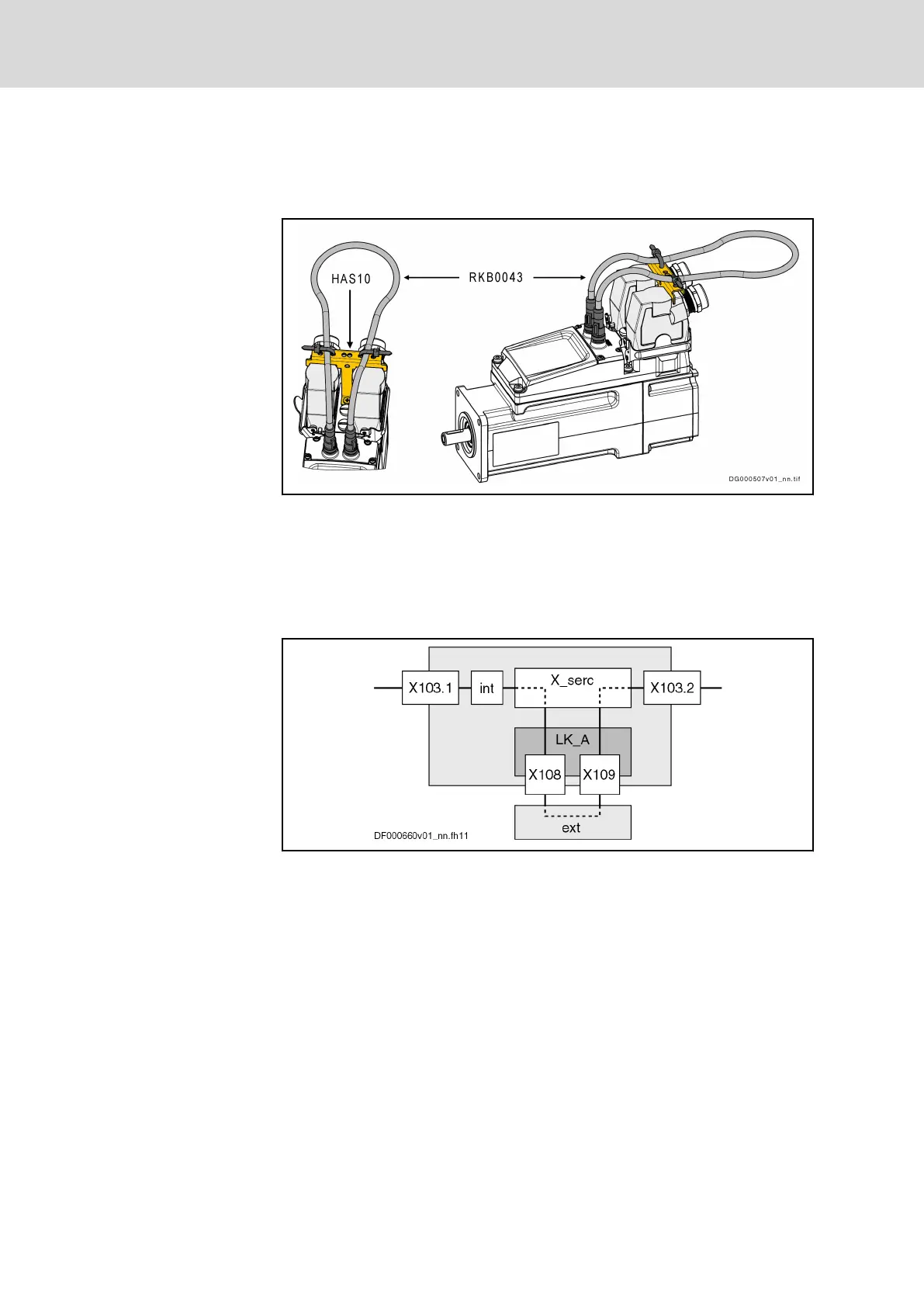

Fig. 6-9: Cable for unused output coupling
Principle of output coupling
In the case of devices with communication output coupling, the
communication signals are transmitted to the connection points X108 and
X109 via a circuit board (see figure: LK_A). If neither a component nor the
RKB0043 cable has been connected to X108 and X109, the communication
in the drive line is interrupted.
ext External component or RKB0043 cable
int Internal signal processing
LK_A Internal circuit board for communication output coupling
X_serc Internal communication interface
Fig. 6-10: Devices with communication output coupling
In the case of devices without communication output coupling, the
communication signals are directly transmitted via a circuit board (see figure:
LK_B).
168/407
Connection points
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
