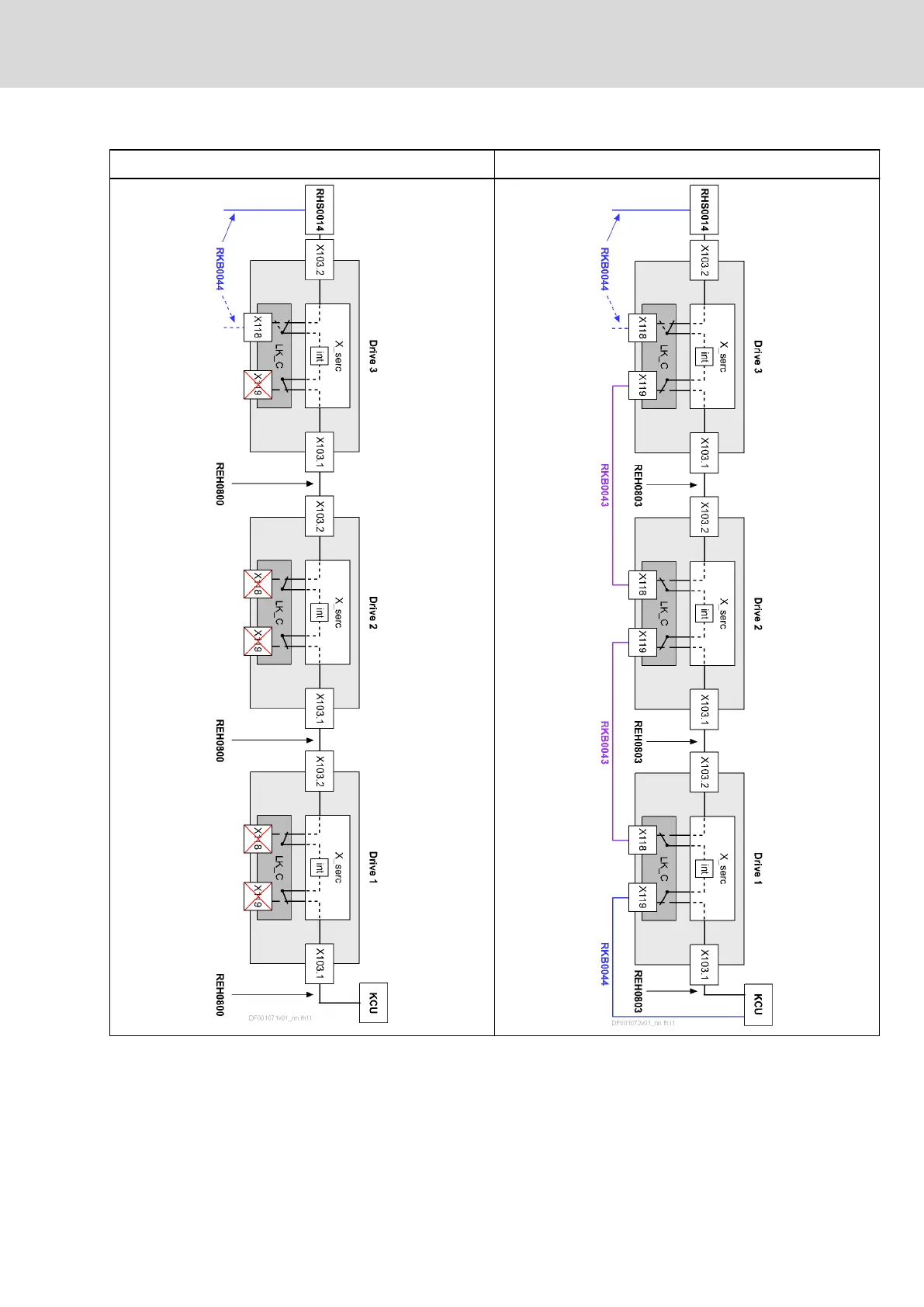

System with hybrid cable incl. communication (REH0800) System with hybrid cable without communication (REH0803)
REH0800 Hybrid cable incl. communication: The external communication
signal is input via the RKB0044 connection cable at the
RHS0014 terminal connector or at connection point X118
(X119 cannot be used), and it is transmitted to KCU via the hy‐
brid cable. The unused connection points X118 and X119 are
deactivated.
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
171/407
Connection points
R911335703_Edition 04 Bosch Rexroth AG
