XD3 Motor
XG3 Brake/temperature
XG4 Motor encoder, digital
XG8 Motor encoder, analog
P Cable plate

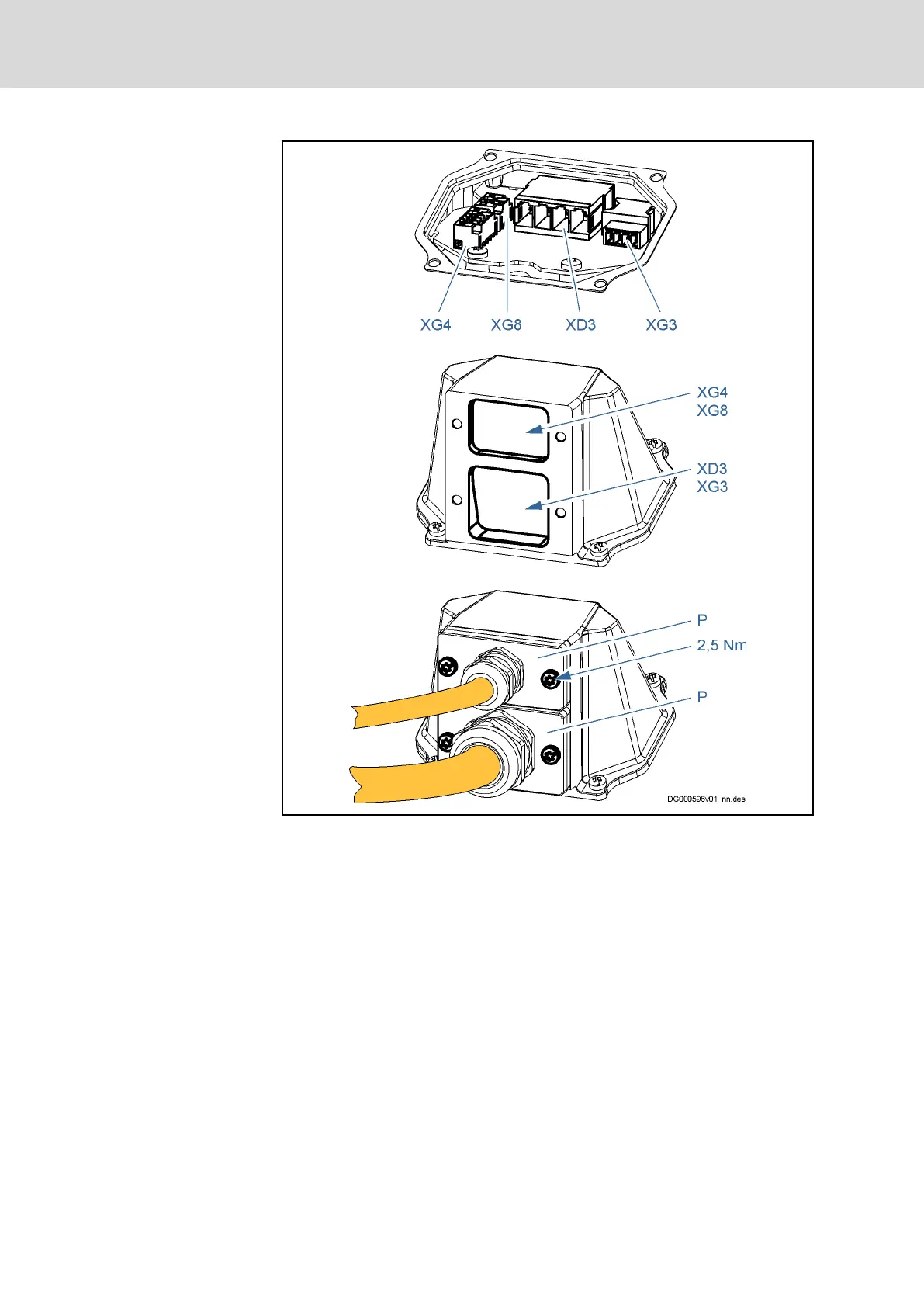

Fig. 6-16: Motor cable and encoder cable
190/407
Connection points
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
