View Connectio
n
Signal
name
Function
1 0V 42 V supply, max. 15 A
2 0V
3 42V
4 42V
M12 (4‑pin, T‑coded) female Unit min. max.
Connection cable, stranded wire
mm
2
1.5 1.5
Cable cross section AWG 16 16
Connection cable e.g., PHOENIX CONTACT power cable - SAC-4P-M12MRT/
10,0-PUR SH - 1424127

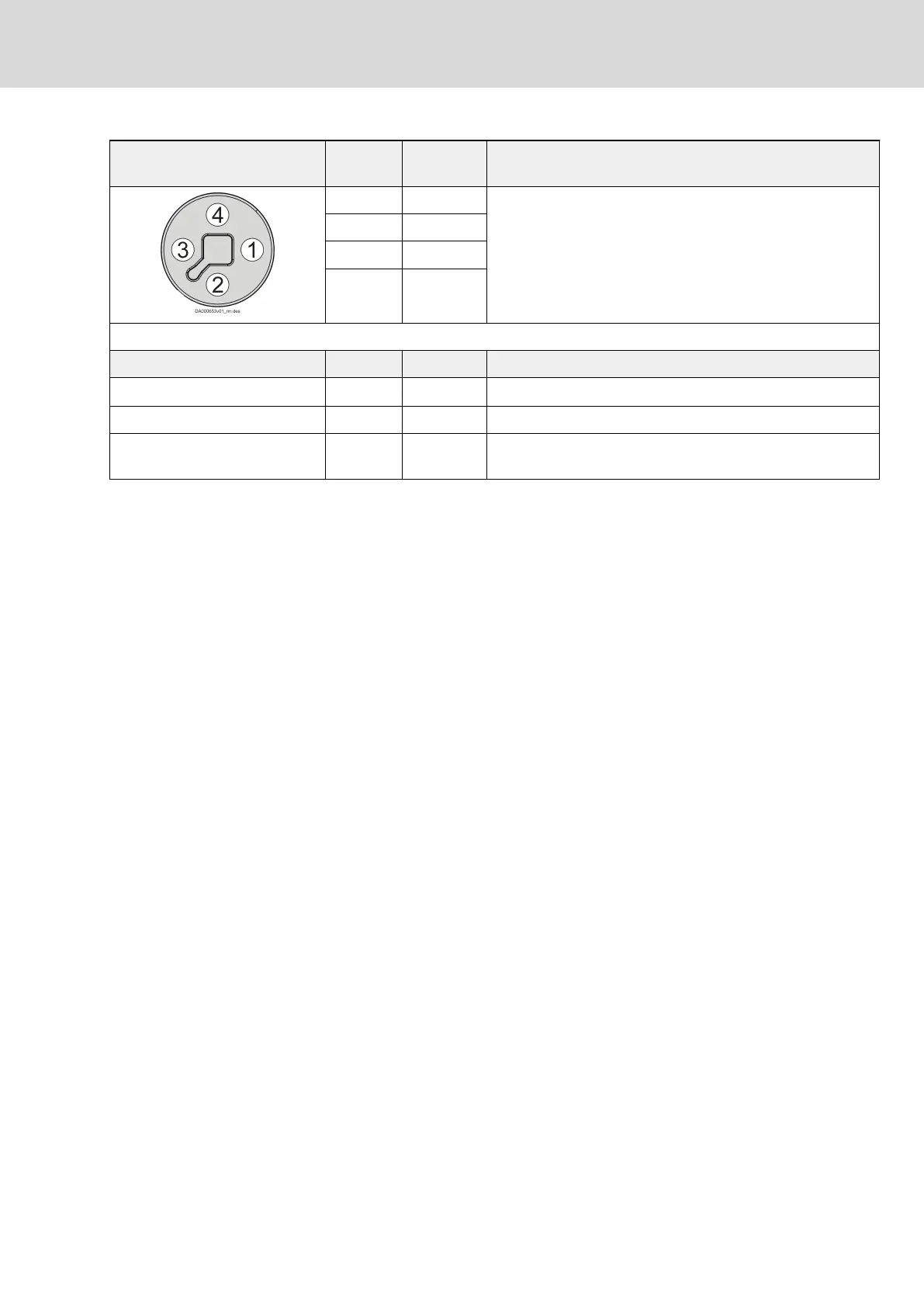

Tab. 10-3: Function, pin assignment, properties
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
309/407
Accessories
R911335703_Edition 04 Bosch Rexroth AG
