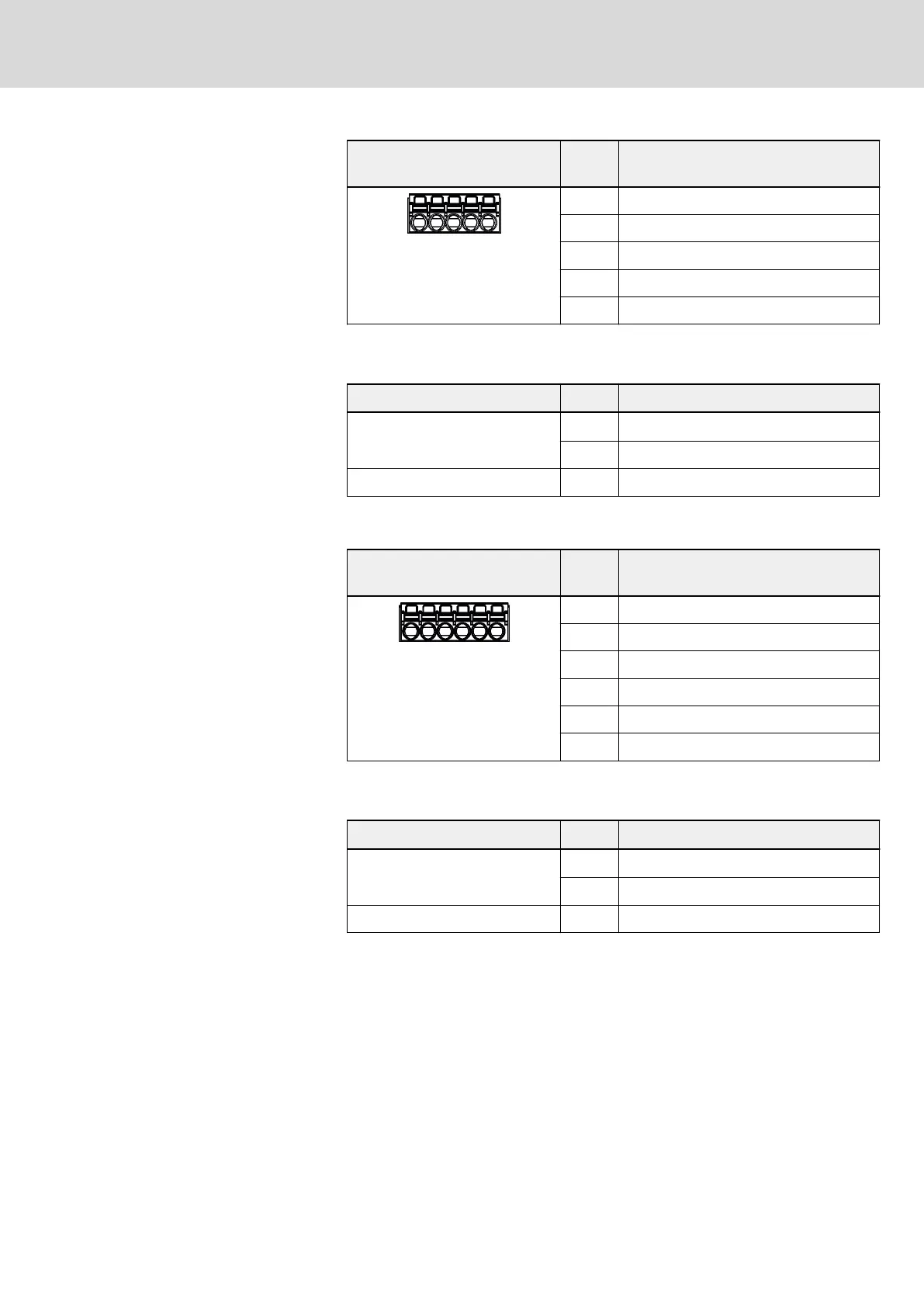

X52; connection point
View Connec
tion
Function
1 SI_Ch1
2 0V
3 SI_Ch2
4 ModBus+
5 nE-Stop
Tab. 10-7: Pin assignment
Mechanical data
Spring terminal (connector) Unit max.
Connection cable
Stranded wire
mm
2
1.5
AWG 16
Stripped length mm 10
Tab. 10-8: Mechanical data
X52.1; connection point
View Connec
tion
Function
1 ModBus+
2 ModBusGND
3 SI_Ch2
4 0V
5 SI_Ch1
6 nE-Stop
Tab. 10-9: Pin assignment
Mechanical data
Spring terminal (connector) Unit max.
Connection cable
Stranded wire
mm
2
1.5
AWG 16
Stripped length mm 10
Tab. 10-10: Mechanical data
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
313/407
