LED
Color / flashing pattern
1)
Significance
Measures
Green ● AH (Drive Halt)
● AF (Drive in control)
● Lb (supply unit in rectifier mode)
● LB (supply unit in voltage control)
● I LB (supply unit in current control)
Flashing red-green Bus state (e.g., not active, pre‑operational, …)
Loader active
Identification
Flashing red Firmware update error
Repeat firmware update
● All warnings
● Command errors
Read detailed state via "S‑0‑0095, Diagnostic
message"
All errors (except F4xxx)
Read detailed state via "S‑0‑0095, Diagnostic
message" and carry out service function
Communication error (F4xxx)
If necessary, read detailed state via "S‑0‑0095,
Diagnostic message"
Red Booting phase
Wait until booting phase is over (approx. 2 minutes)
System error (F9xxx)
● Switch off and on; replace hardware, if
necessary
● Check whether programming module has been
plugged
1) Flashing pattern: One square corresponds to a duration of
250 ms; the arrow marks the end of a cycle; abbreviations on
the squares: GN = LED permanently lit green, RD = LED per‐
manently lit red, ‑‑ = LED is off

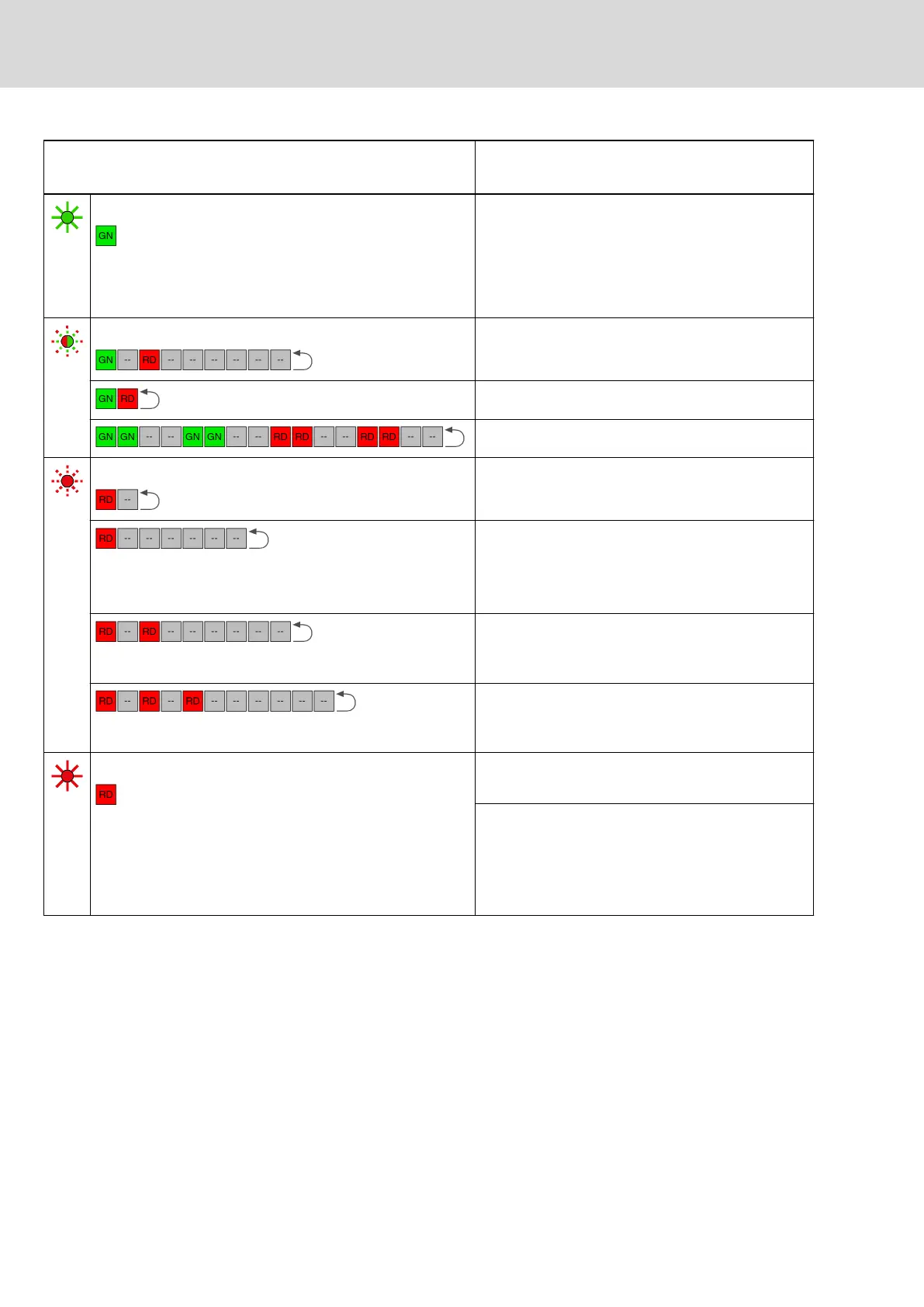

Tab. 11-2: LED displays
342/407
Commissioning, operation, diagnostics and maintenance
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
