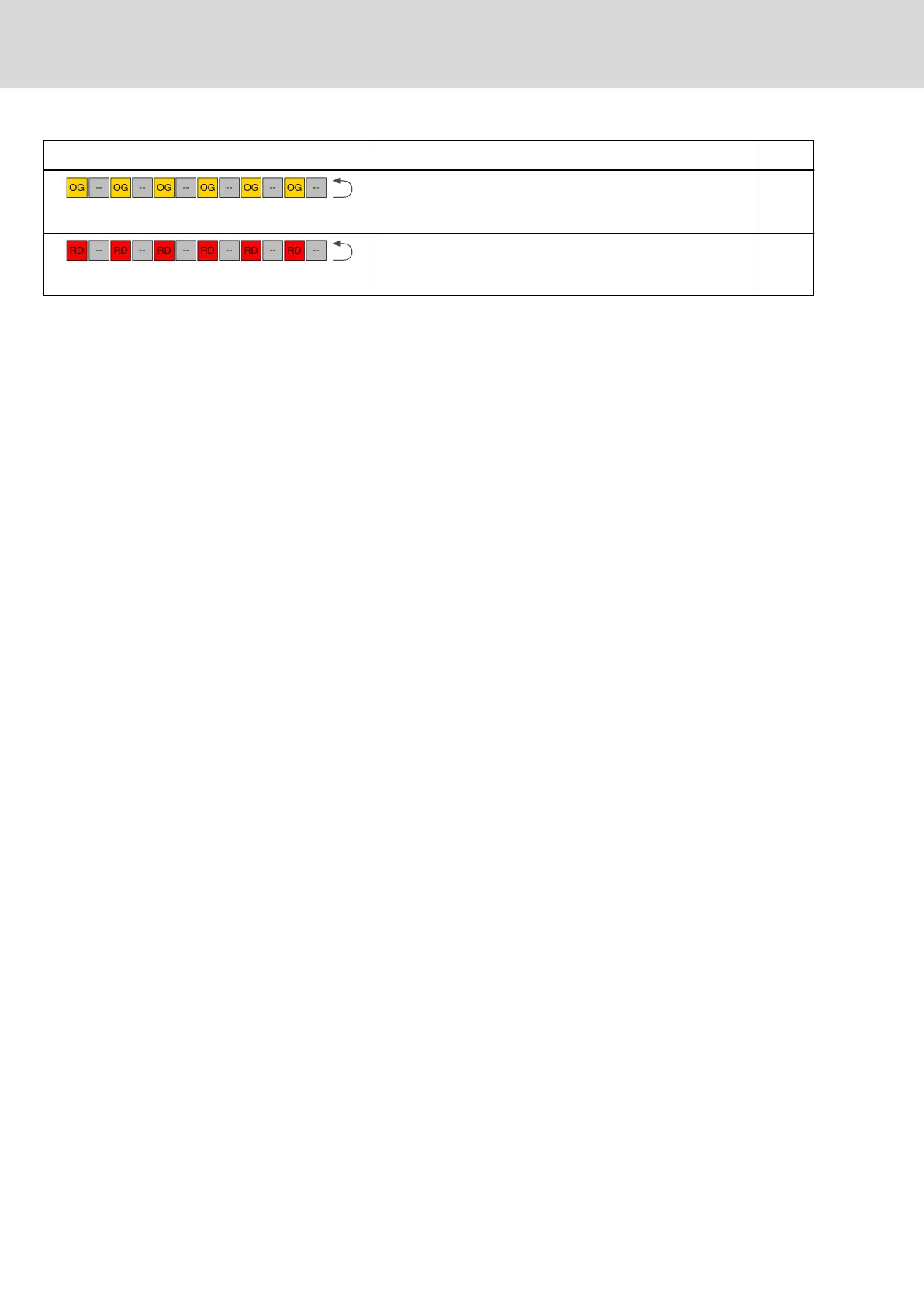

LED: Color / flashing pattern
1)
Description
Prio
2)
Flashing orange
Identification
(S-0-1044, Sercos: Device Control [C‑Dev], bit15)
1
Flashing red
Internal watchdog 0
1) Flashing pattern: One square corresponds to a duration of
250 ms; the arrow marks the end of a cycle; abbreviations on
the squares: GN = LED permanently lit green, OG = LED per‐
manently lit orange, RD = LED permanently lit red,
‑‑ = LED is off
2) Display priority (1 = highest priority); the state of the highest
priority is displayed
3) NRT = None Real Time
4) MST = Master synchronization telegram
Tab. 11-8: Diagnostic LED
352/407
Commissioning, operation, diagnostics and maintenance
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
