S1, S3 Characteristics apply to a PWM frequency of 4 kHz
(1) M
max
, controlled supply (1) 3 × AC 400 V
(2)(3)(4) M
max
, uncontrolled supply (2) 3 × AC 480 V, (3) 3 × AC 440 V,
(4) 3 × AC 400 V

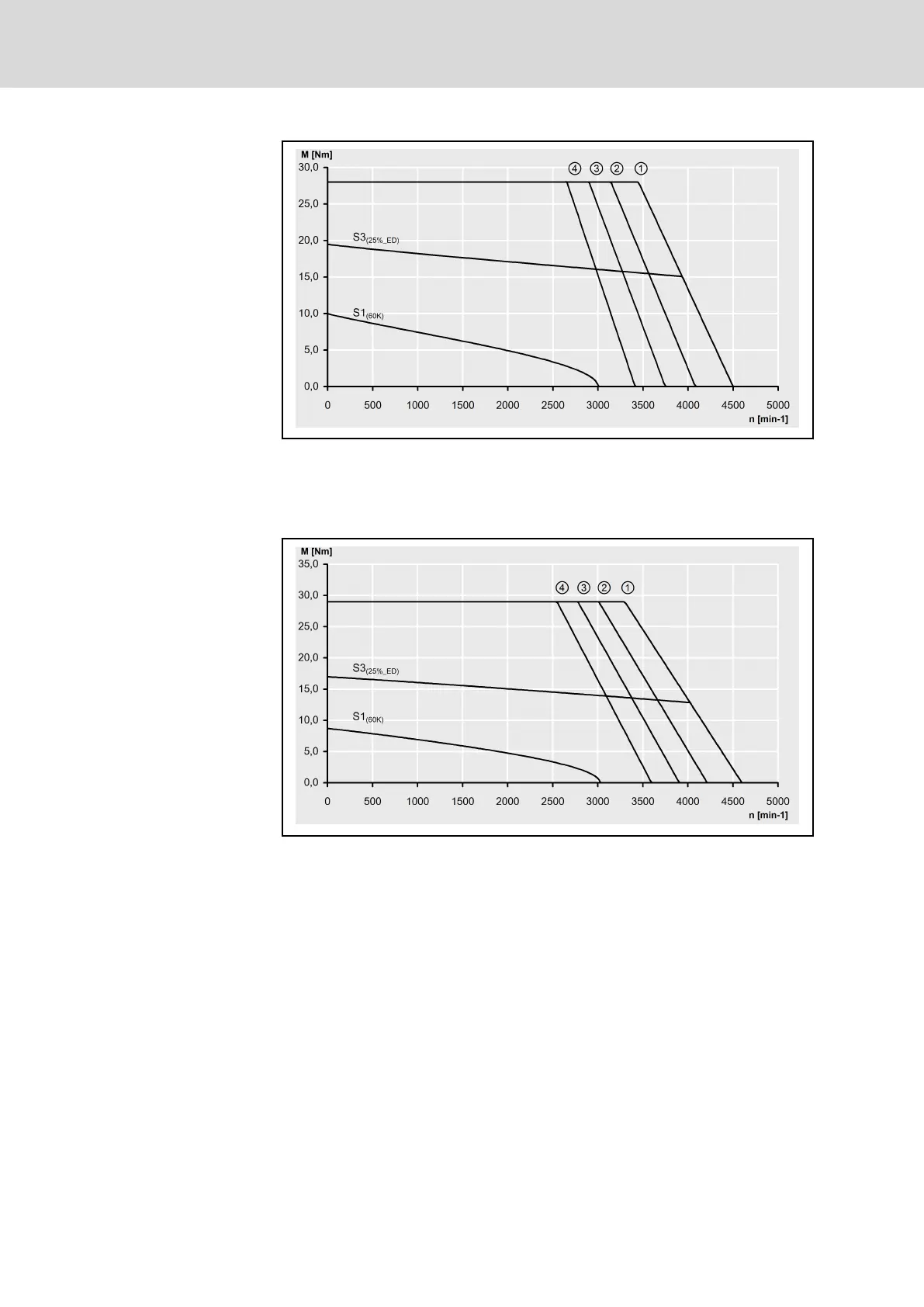

Fig. 5-9: KSM02.1B-071C-35 characteristics
S1, S3 Characteristics apply to a PWM frequency of 4 kHz
(1) M
max
, controlled supply (1) 3 × AC 400 V
(2)(3)(4) M
max
, uncontrolled supply (2) 3 × AC 480 V, (3) 3 × AC 440 V,
(4) 3 × AC 400 V
Fig. 5-10: KSM02.1B-076C-35 characteristics
