Controlling Operations from an External MIDI Device

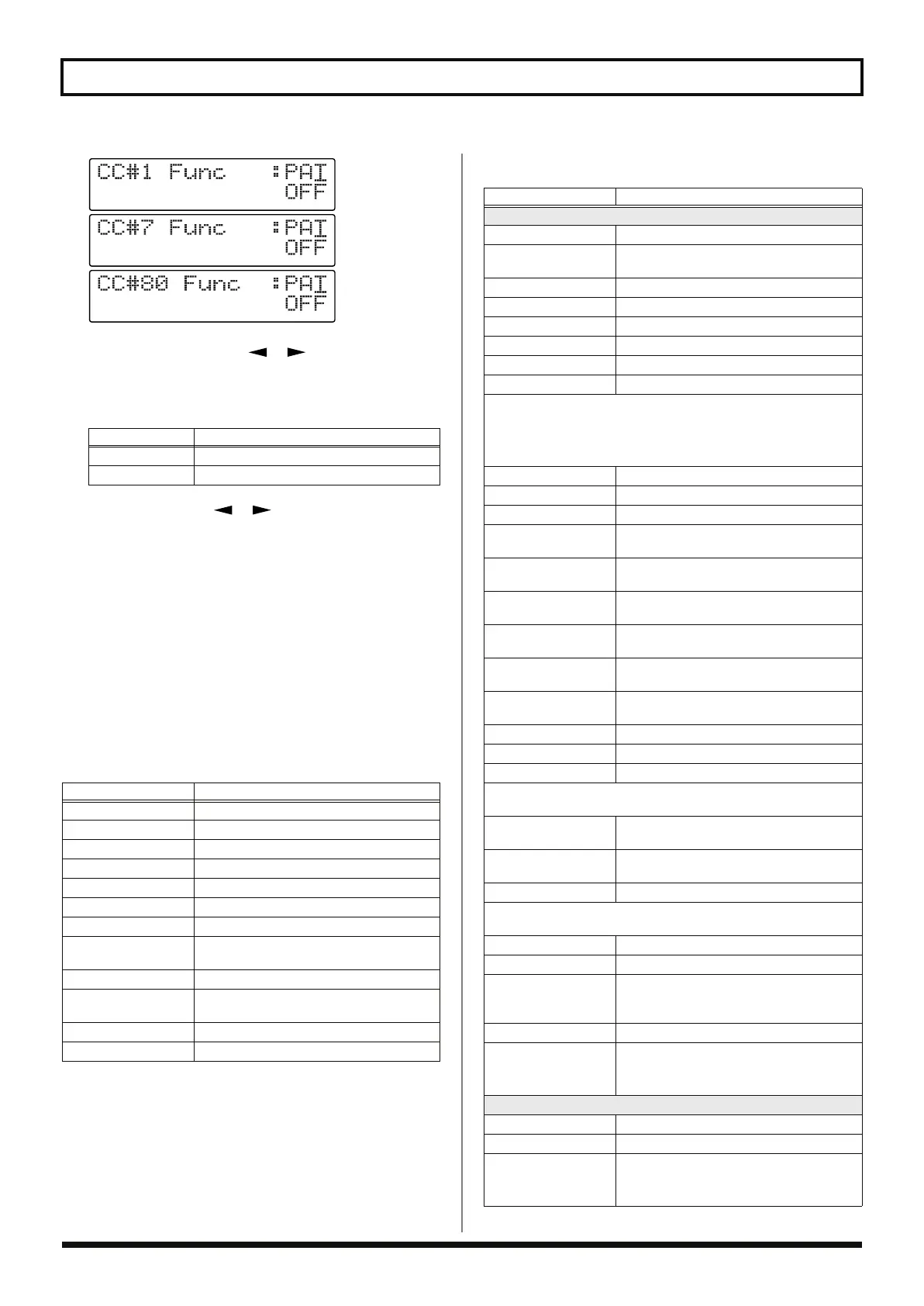

fig.08-160d
3.
After using PARAMETER [ ] [ ] to move the cursor to
“SYS” or “PAT” in the upper row of the display, you can then
rotate the PATCH/VALUE dial to select either the system
settings or patch settings as the settings to be used.
4.
Press PARAMETER [ ] [ ] to move the cursor to the
lower row of the display, then use the PATCH/VALUE dial to
set how you want the Control Change to be used.
5.
Repeat Steps 2–4 as needed.
6.
Press [EXIT] to return to the Play screen.
* When selecting patch pedal settings, use the procedure described in
“Saving by Patch Numbers (Patch Write)” (p. 54) when saving the
settings.
CC#1, CC#7
CC#80
Available Settings
Description
~~: SYS
The system settings are used.
~~: PAT
The patch settings are used.
Available Settings
Description
OFF
No operation
PHRASE 1 LEVEL
Controls the volume level of Phrase 1
PHRASE 2 LEVEL
Controls the volume level of Phrase 2
PHRASE 3 LEVEL
Controls the volume level of Phrase 3
PHRASE 1 PAN
Controls the panning of Phrase 1
PHRASE 2 PAN
Controls the panning of Phrase 2
PHRASE 3 PAN
Controls the panning of Phrase 3
CURRENT LEVEL
Controls the volume level of the current
phrase
CURRENT PAN
Controls the panning of the current phrase
GUIDE LEVEL
Controls the volume level of the guide
sound
PATCH LEVEL
Controls the patch’s volume level
PATCH TEMPO
Controls the patch tempo
Available Settings
Description
Applies to both system settings and patch settings
OFF
No operation
ALL START/STOP
Starts and stops playback of all Phrases 1–3
simultaneously
PHRASE 1 PLY/STP
Starts and stops playback of Phrase 1 (*)
PHRASE 2 PLY/STP
Starts and stops playback of Phrase 2 (*)
PHRASE 3 PLY/STP
Starts and stops playback of Phrase 3 (*)
PHRASE 1 PLAY
Starts playback of Phrase 1 (*)
PHRASE 2 PLAY
Starts playback of Phrase 2 (*)
PHRASE 3 PLAY
Starts playback of Phrase 3 (*)
(*)
• Playback does not start if the phrase is blank.
• Playback begins immediately, with no playback count-in sound
played.
PHRASE 1 STOP
Stops playback of Phrase 1
PHRASE 2 STOP
Stops playback of Phrase 2
PHRASE 3 STOP
Stops playback of Phrase 3
PHRASE 1 REVERSE
Turns reverse playback of Phrase 1 on and
off
PHRASE 2 REVERSE
Turns reverse playback of Phrase 2 on and
off
PHRASE 3 REVERSE
Turns reverse playback of Phrase 3 on and
off
PHRASE 1 ONESHOT
Switches Loop and One Shot playback for
Phrase 1
PHRASE 2 ONESHOT
Switches Loop and One Shot playback for
Phrase 2
PHRASE 3 ONESHOT
Switches Loop and One Shot playback for
Phrase 3
PHRASE 1 CLEAR
Clears Phrase 1 (*)
PHRASE 2 CLEAR
Clears Phrase 2 (*)
PHRASE 3 CLEAR
Clears Phrase 3 (*)
(*) Phrases cannot be cleared if the current phrase is being
recorded/overdubbed.
CURRENT REVERSE
Turns reverse playback of the current
phrase on and off
CURRENT ONE SHOT
Switches Loop and One Shot playback for
the current phrase
CURRENT CLEAR
Clears the current phrase (*)
(*) Phrases cannot be cleared if the current phrase is being
recorded/overdubbed.
UNDO/REDO
Undo/Redo
PATCH TEMPO (TAP)
Tap input for patch tempo
OVERDUB MODE INC
Switches Overdubbing mode switching
sequence to OVERDUB
→
REPLACE
→
MOMENTARY PUNCH-IN
GUIDE START/STOP
Starts and stops the guide
PLAY MODE
Switches the Play mode (Single/Multi)
* All phrases stop when the mode is switched
during recording, playback, or overdubbing.
Applies to system settings only
PATCH NUMBER INC
Switches to the next higher patch number
PATCH NUMBER DEC
Switches to the next lower patch number
PATCH WRITE
Writes the patch
* When pressing a pedal twice, Patch Write is
executed.
