10 Technical specifications
134 Operating Manual ARC 400 BOWA-IFU-11779-ARC400-V2.1.0-S0-EN

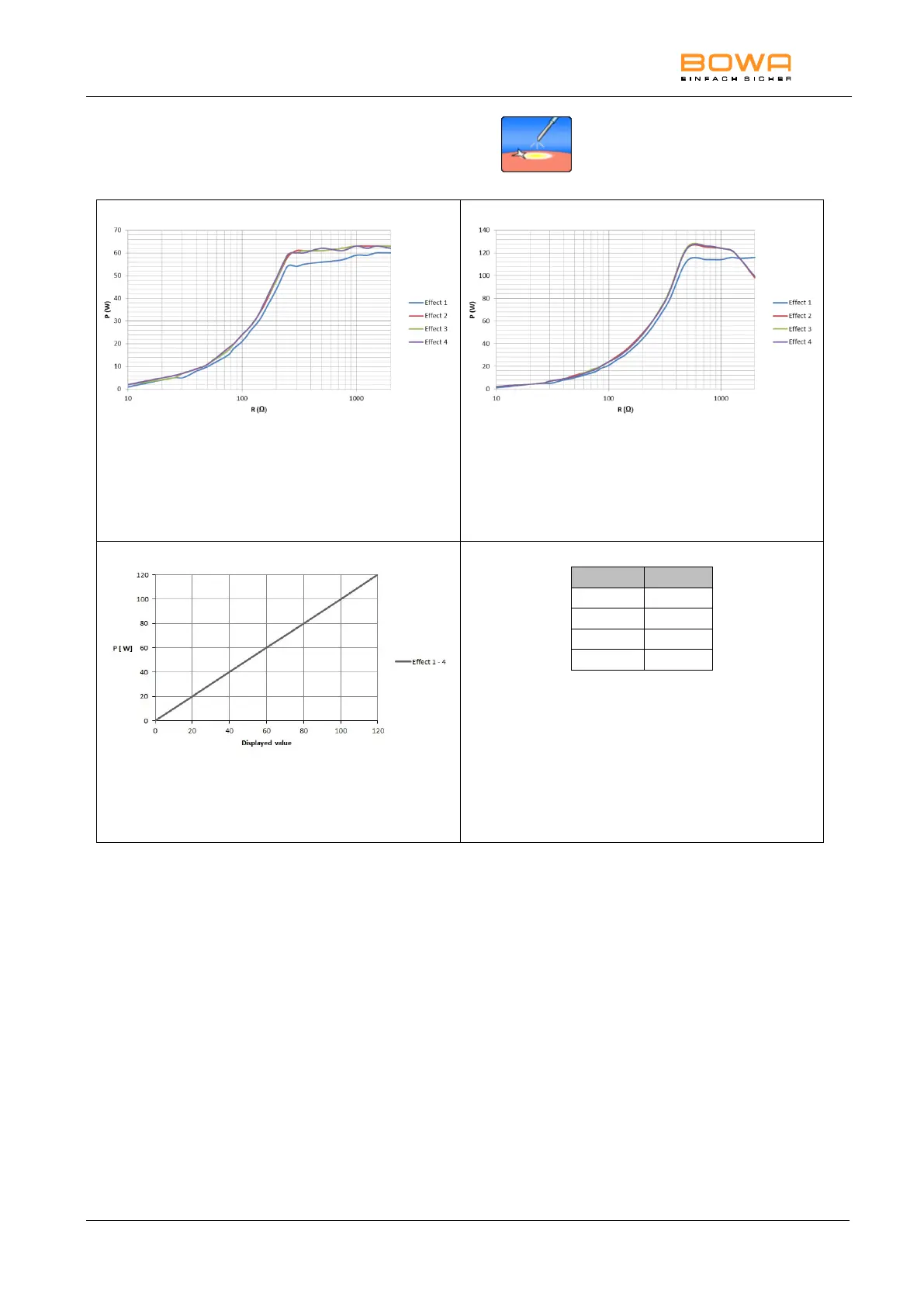

Monopolar Coagulation – Spray
Measurement at ohmic resistances
 Diagram of power output P [W] as a
function of the load resistance R [] for
the setting "Monopolar Coagulation
Spray"
= 60 W
Measurement at ohmic resistances
 Diagram of power output P [W] as a
function of the load resistance R [] for
the setting "Monopolar Coagulation
Spray"
= 120 W
 Diagram of power output P [W] as a
function of the setting "Monopolar
Coagulation Spray"
Rated load resistance = 500 
Effect
U (Vp)
1
3000
2
3800
3
4600
4
5000
 Table of HF output voltage U [Vp] as a
function of the setting "Monopolar
Coagulation Spray" (idle mode)
