Bowa ARC 400 - Bipolar Connector Module (Right)

3 Description
BOWA-IFU-11779-ARC400-V2.1.0-S0-EN Operating Manual ARC 400 21

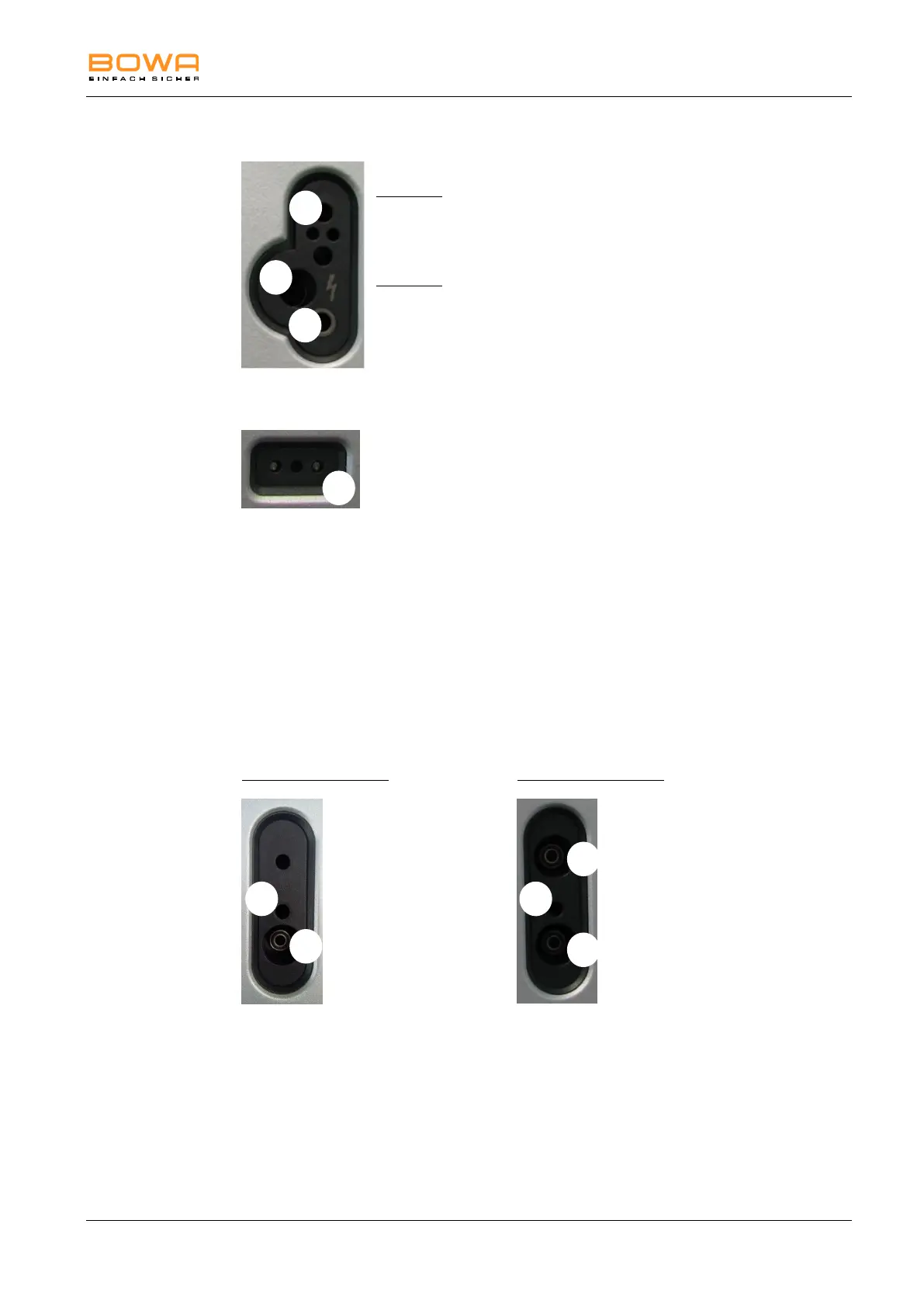

Monopolar connection socket
Version 1
14 3-pin US type
15 Bovie connector (for foot switch)
16 4-mm socket (for foot switch)
Version 2
14 3-pin US type
15 Erbe 5 mm
16 4-mm socket (for foot switch)
Connection socket for neutral electrode
13 Neutral (US type)
3.1.3. Bipolar connector module (right)
17 Socket connector for bipolar instruments with foot switch, finger
switch or
AUTOSTART*
18 Socket connector for bipolar instruments with foot switch, finger
switch or
AUTOSTART*
Bipolar connection sockets
Upper bipolar socket: Lower bipolar socket:
19 2-pin US type (28.58 mm) 19 2-pin US type (28.58 mm)
20 1 x Erbe VIO/ICC 20 2 x Erbe VIO/ICC
* Applied part type CF according to IEC 60601-1
