3 Description
28 Operating Manual ARC 400 BOWA-IFU-11779-ARC400-V2.1.0-S0-EN

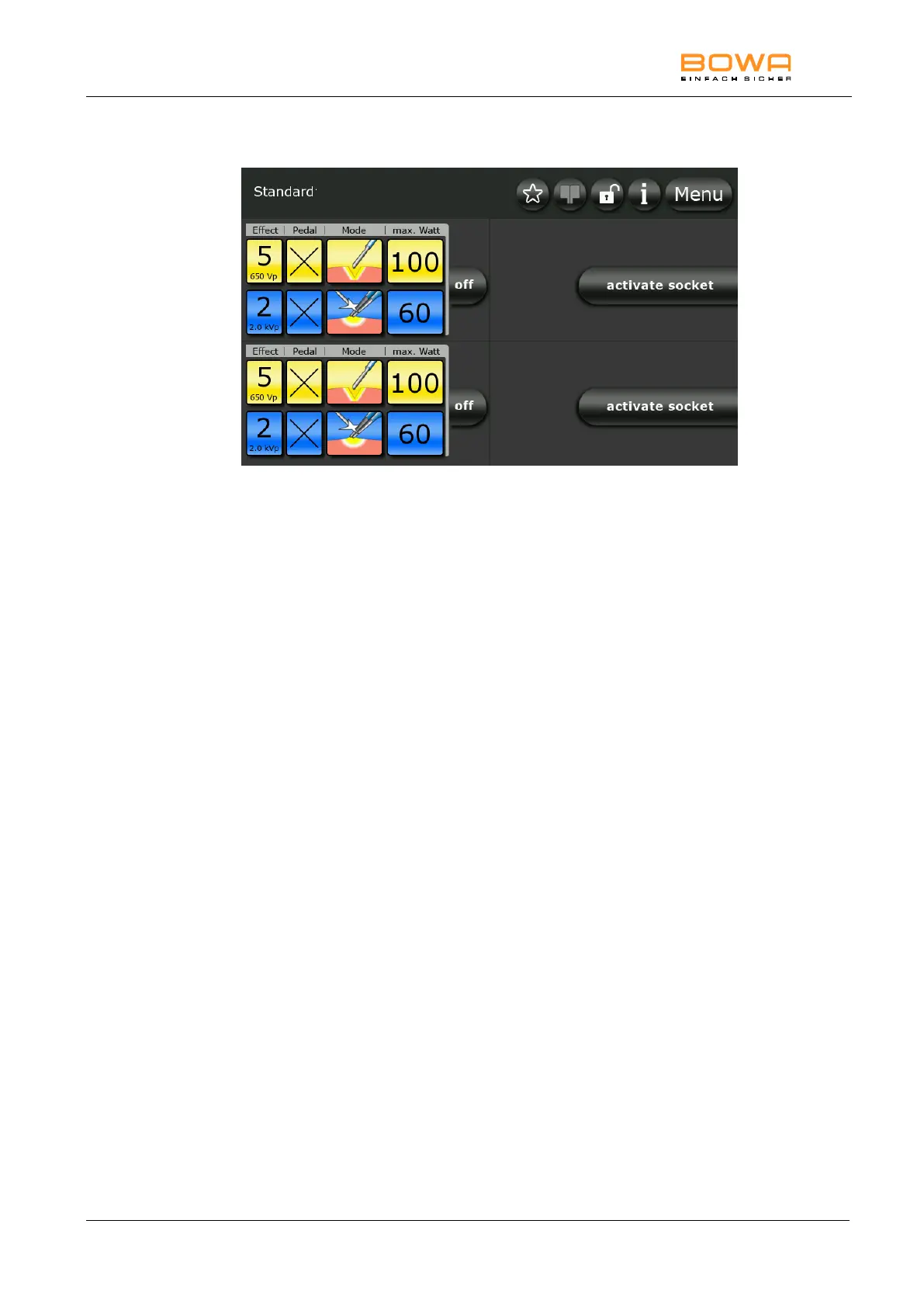

3. On the ARC 400 the connection to TEGRIS is not enabled. In this
case the sign-of-life icon (status icon) is not displayed.
The following points should be observed when integrating the ARC400 into
the MAQUET TEGRIS system:
• Use the BOWA network cable (ref 900-045).
• Network cable CAT 5e F/UTP or better; maximum total length 100
m
• BOWA ARC 400 Version 2.1.0 or later
• To activate support for the BOWA ARC 400 by your Maquet
TEGRIS system, please contact your Maquet dealer.
Use the network port 27 of the BOWA ARC 400 and the network cable for
the connection.
The system operator is responsible for compliance with the applicable EMC
requirements for the overall system.
3.5. Operating conditions
Temperature: +10 °C to +40 °C
Relative humidity: 30 to 75%, non-condensing
Atmospheric pressure: 700 to 1060 hPa
Operating altitude (max.) 3000 m above sea level
