5.10.12. "Argon" dialog
In case of the selection of an argon mode and a successful connection to
ARC PLUS, this dialog is selectable in the status bar.
The "Argon" dialog enables the selection of argon flow rates for cutting and
coagulation, as well as the selection of argon bottles and the display of
filling levels.

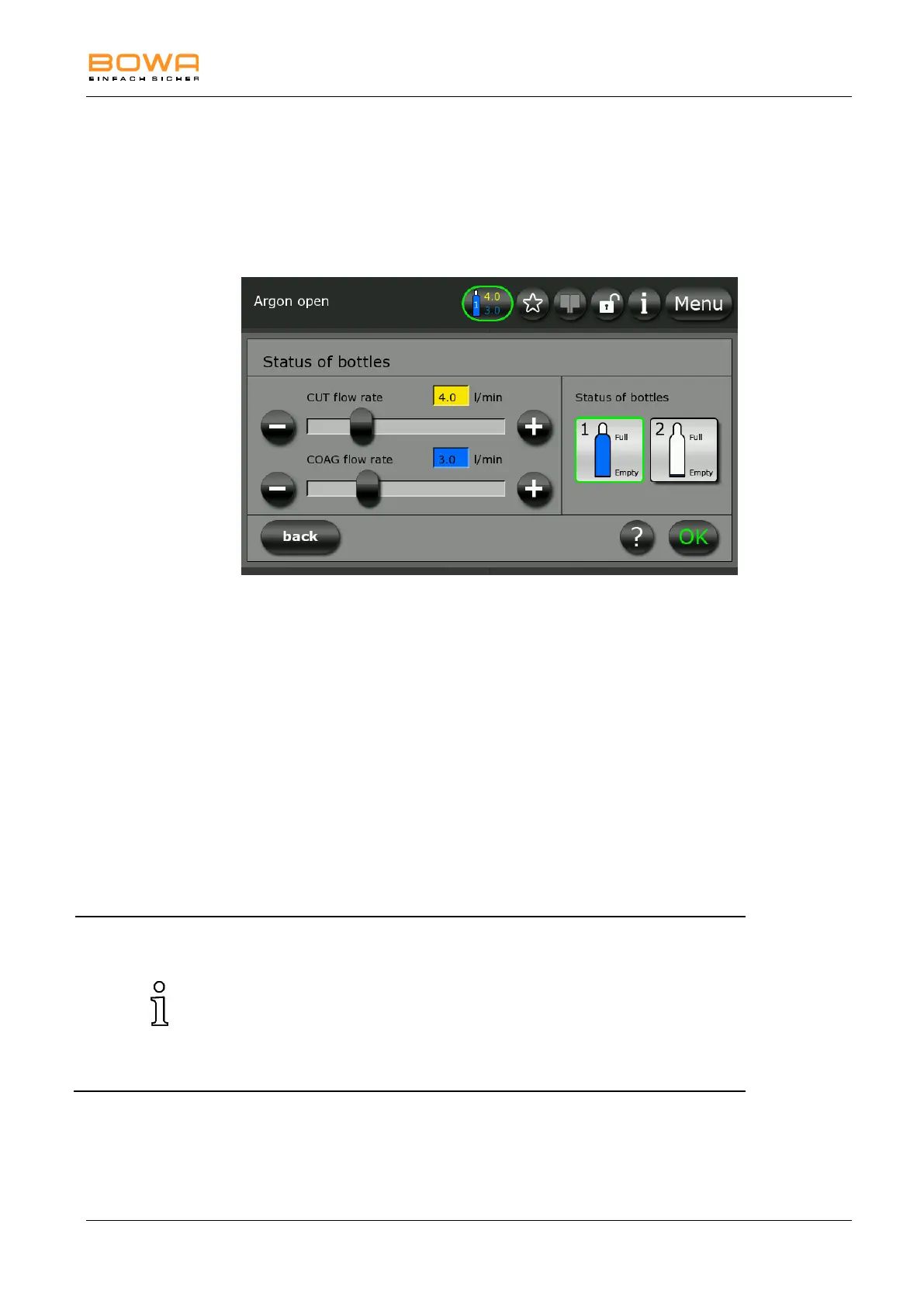

Figure 5-37: "Argon" dialog
1. Use the "+" and "-" buttons to adjust the argon flow rate for cutting
(Cut) or coagulation (Coag).
- or -
Use the slider to set the flow rate.
2. In case of two connected argon bottles use the buttons for output "1"
or "2" to select the desired gas source.
Pressure reducers with electronic pressure sensor enable the display of
exact filling levels of argon bottles.
3. Press the "?" button for more information on this selection.
4. Confirm your selection by pressing the "OK" button.
- or -
Press the "Back" button to return to the main screen without changing
the selection.
Default settings for argon flow rates according to the different modes are
selected automatically:
Argon open:
CUT flow rate: 4.0 l/min
COAG flow rate: 3.0 l/min
Argon flexible:
COAG flow rate: 0.4 l/min
