3 Description
26 Operating Manual ARC 400 BOWA-IFU-11779-ARC400-V2.1.0-S0-EN

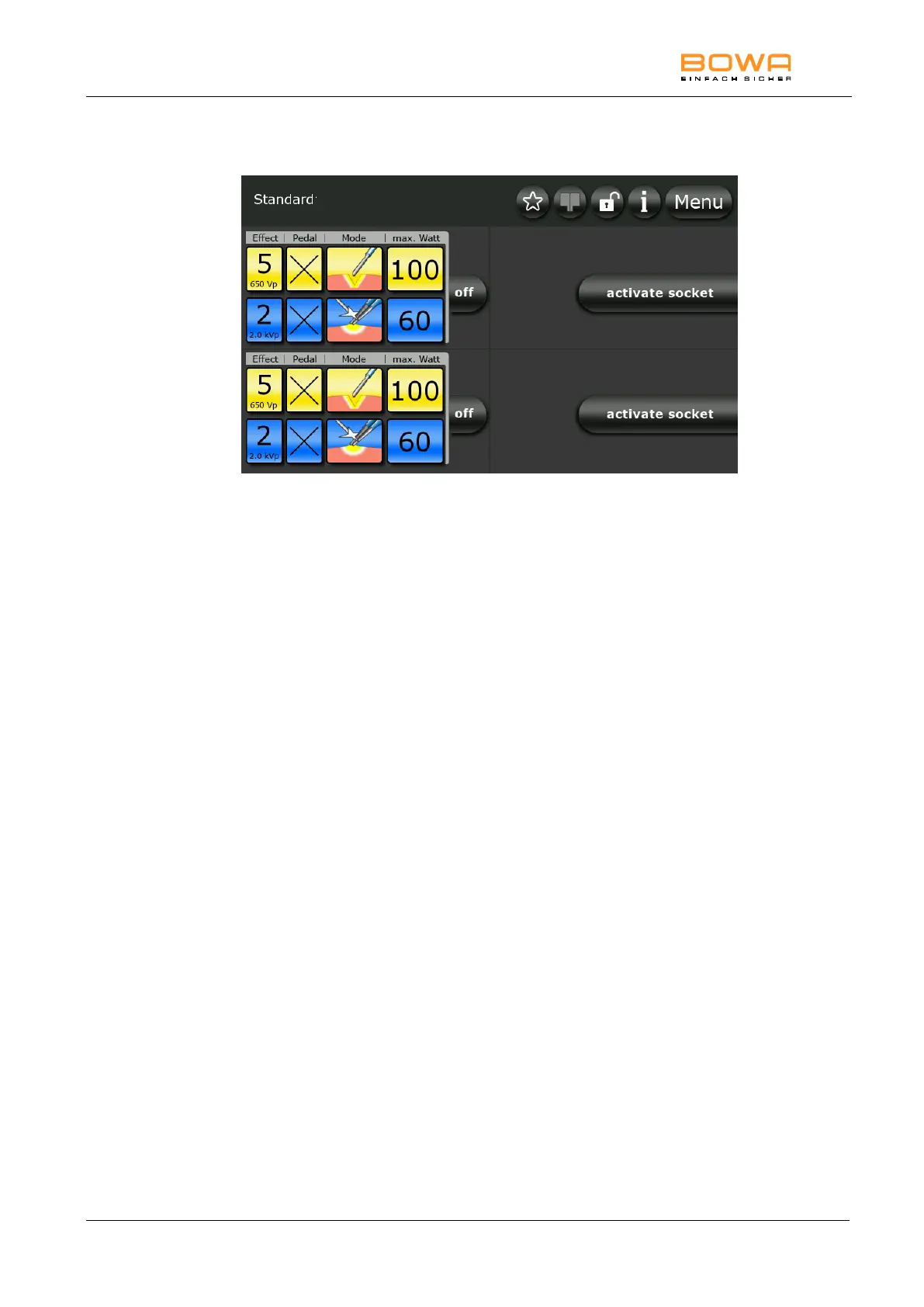

3. On the ARC 400 the connection to OR1 is not enabled. In this case
the sign-of-life icon (status icon) is not displayed.
The following points should be observed when integrating the ARC400 into
the Karl Storz OR1 system:
Use the BOWA network cable (ref 900-045).
Network cable CAT 5e F/UTP or better; maximum total length 100
m
OR1 ControlNEO Release 200900 01-46 or later
BOWA ARC 400 Version 2.1.0 or later
Only one BOWA ARC 400 can be connected to an OR1.
Connection of a second BOWA ARC 400 at the same time is not
supported.
Use the network port of the BOWA ARC 400 and the network cable for the
connection. Unlike other devices integrated into the OR1 system, there is
no SCB connection.
The system operator is responsible for compliance with the applicable EMC
requirements for the overall system.
