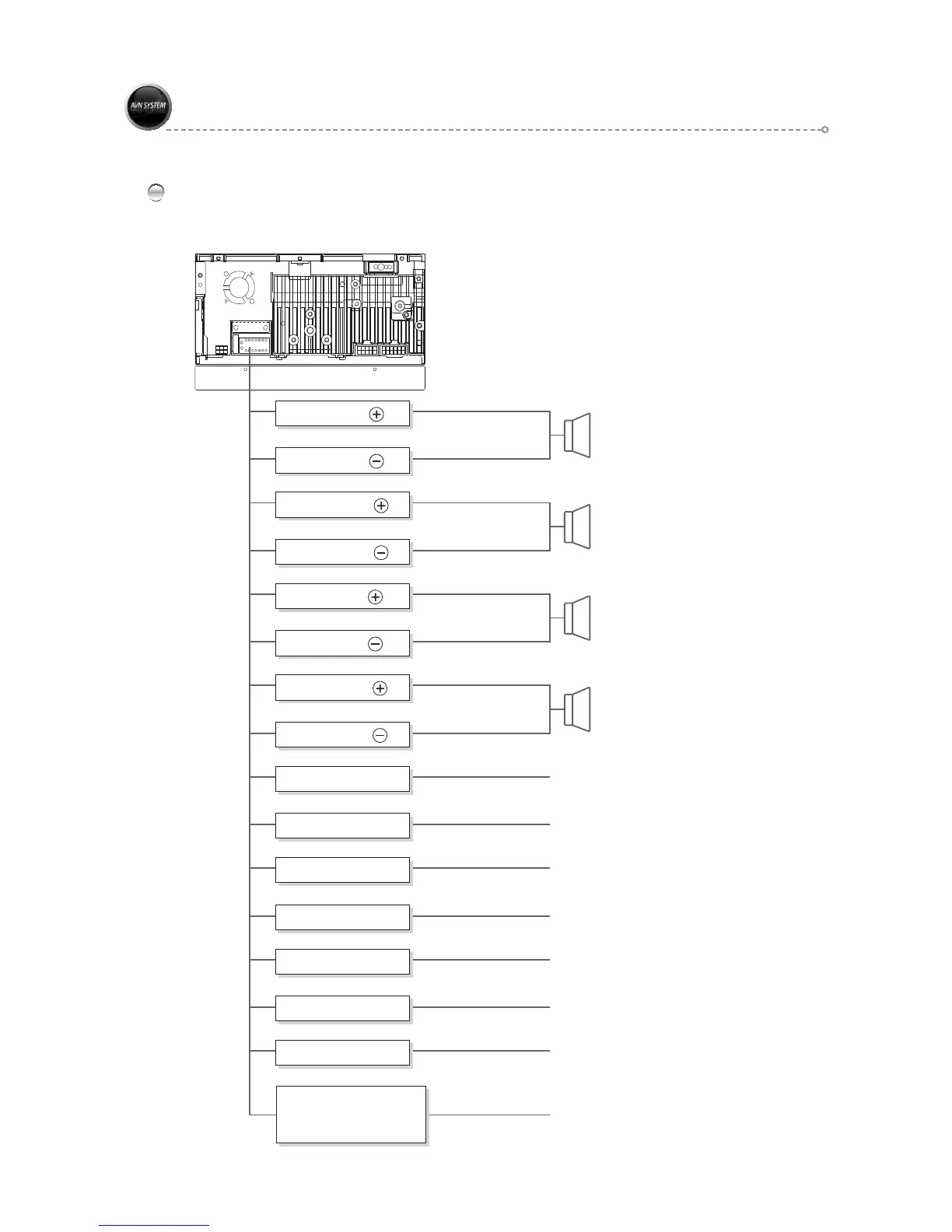

Boyo AVN700A - System Connection; OUTPUT connection

111
GND
Black
Brown
Parking Brake
Battery
Yellow
Red
ACC
P- ANT
Blue
Orange
ILL
Remote
Sky blue
Pink
Rear View
To external AMP controller
Rear Right
Dark Blue
Dark Blue / Black
Rear Right
Rear Right Speaker
Rear Left
Green
Green / Black
Rear Left
Rear Left Speaker
Front Right
Gray
Gray / Black
Front Right
Front Right Speaker
Front Left
White
White / Black
Front Left
Front Left Speaker
To Reverse Trigger Positive ( + )
To FM ANT(ON/OFF Control)
To Illuminating ( + )
To Battery ( + )
To Acc ( + )
To Ground ( - )
To Parking ( - )
VCC Connection
& Speaker
OUTPUT connection
System Connection
